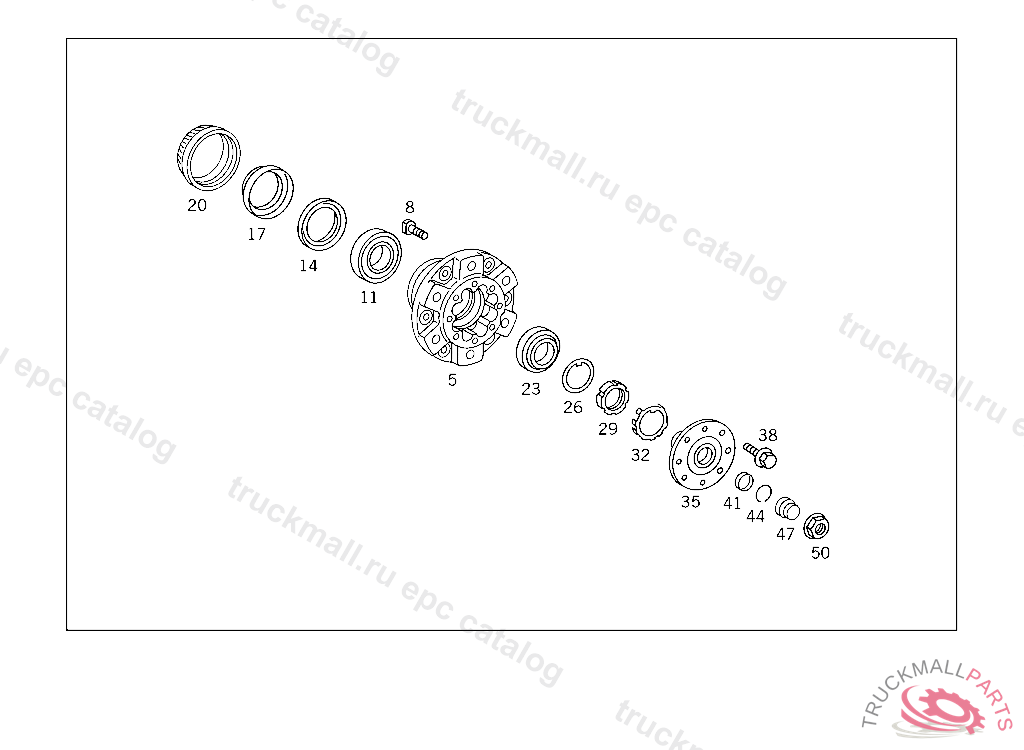

Поз.
Артикул
Описание
5
WHEEL HUB FRONT AXLE,LEFT AND RIGHT
5
WHEEL HUB
8
WHEEL MOUNTING BOLT
11
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
11
TAPERED ROLLER BEARING INSIDE
11
TAPERED ROLLER BEARING INSIDE
11
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
14
SEAL RING WHEEL HUB, INSIDE
17
SEAL RING WHEEL HUB, INSIDE
17
SEAL RING WHEEL HUB, INSIDE
20
RING (MEASURING RING) ANTI-LOCK BRAKING SYSTEM
23
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
23
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
23
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
26
SPACER WASHER REAR AXLE SHAFT
29
GROOVED NUT REAR AXLE SHAFT
32
LOCK PLATE REAR AXLE SHAFT
35
FOLLOWER WHEEL HUB, OUTSIDE
38
SCREW SUPPORT TO CYLINDER CRANKCASE
38
SCREW , Replaced By: A0009907604
41
SPACER RING FOLLOWER AND DRUM HUB TO DRIVE SHAFT
44
SNAP RING FOLLOWER AND DRUM HUB TO DRIVE SHAFT
47
GASKET FOLLOWER,F 024041
50
NUT
