Поз.
Артикул
Описание

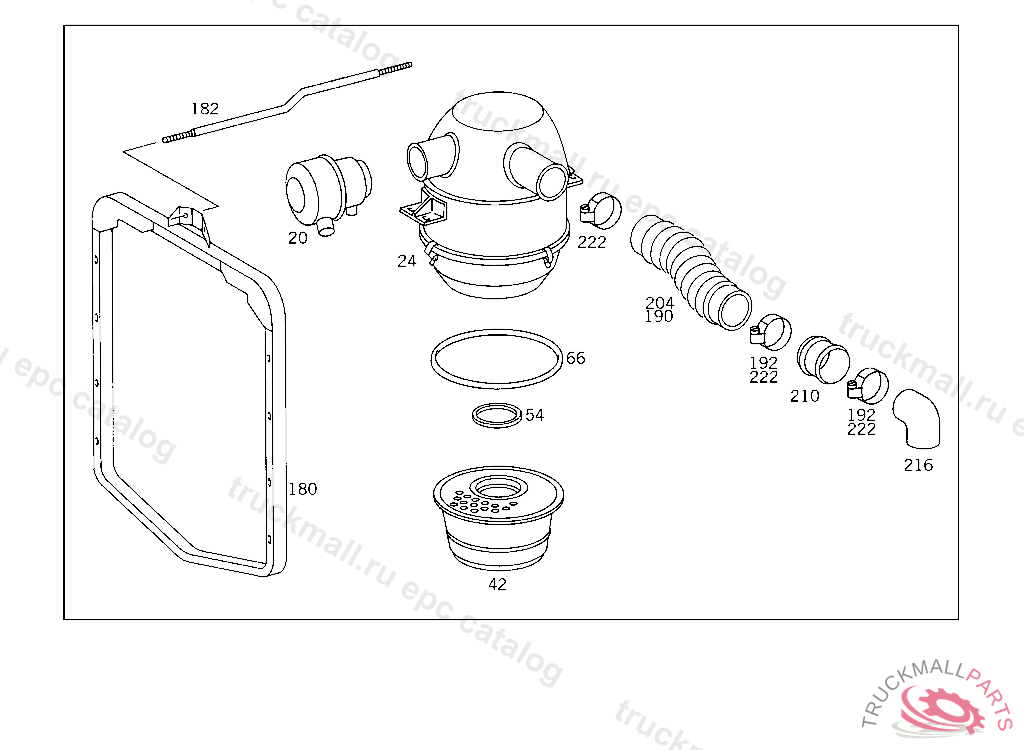

20
AIR CLEANER
24
AIR CLEANER , 032,033,040,041,132,133,140,141 FROM CAB 1500001 INAPPLICABLE TO SUPERCHARGING SYSTEM 030-041 UP TO IDENT NO.: 679207
42
FILTER ELEMENT , 032,033,040,041,132,133,140,141 FROM CAB 1500001 INAPPLICABLE TO SUPERCHARGING SYSTEM 030-041 UP TO IDENT NO.: 679207
54
GASKET INSIDE
66
GASKET OUTSIDE
180
SUPPORT RADIATOR BLOCK
180
SUPPORT RADIATOR BLOCK
182
RADIATOR STRUT ,69208
190
HOSE
192
CLAMP100-120
192
CLAMP
204
HOSE
210
AIR INTAKE PIPE
216
HOSE
222
CLAMP
222
LOOM TIE. CLAMP AS REQUIRED
222
CLAMP. LOOM TIE90-110
222
LOOM TIE. CLAMP
999
INTAKE PIPE
999
HOSE AIR CLEANER, 352.00/1,353,358 FROM CHASSIS 676465-4 153178 ALSO INSTALLED ON 500001-515186,TYP 360 FROM CHASSIS 676465-4 153178
999
RUBBER BUFFER EXHAUST MUFFLER
999
LOOM TIE , Replaced By: A0009979990
999
LOOM TIE , Replaced By: N916018090000
999
AIR CLEANER , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 632989, Replaced By: A3080947402
999
AIR CLEANERMANN
999
NUTTO 344 094 70 02
999
AIR INTAKE PIPE
999
PIPE ELBOW , INAPPLICABLE TO SUPERCHARGING SYSTEM, Replaced By: A3445288708, +001A3529971382, +002A3449979890
999
CLAMP MAIN CABLE HARNESS TO FIRE WALL
999
HOSE
999
AIR CLEANER , Replaced By: A3450948002
999
FILTER ELEMENT , Replaced By: A3440947104
999
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING
999
AIR CLEANER , MANN DO BRASIL, Replaced By: A3450947902
999
AIR CLEANER , Replaced By: A3450947802
999
AIR CLEANER"MANN DO BRASIL", 030-041 FROM IDENT NO.: 679208
999
BRACKET BATTERY CABLE
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
999
PIPE ELBOW , 401,402,403,406,407,408,420,424 FROM CHASSIS 12245602 INAPPLICABLE TO SUPERCHARGING SYSTEM
999
BRACKET AIR CLEANER,604174
999
BRACKET
999
BRACKET AIR INTAKE CASE,483437
999
BRACKET ,604174
999
BRACKET FUEL LINE
999
BRACKET , Replaced By: A3464296040
999
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO WATER PUMP
999
SWITCH
