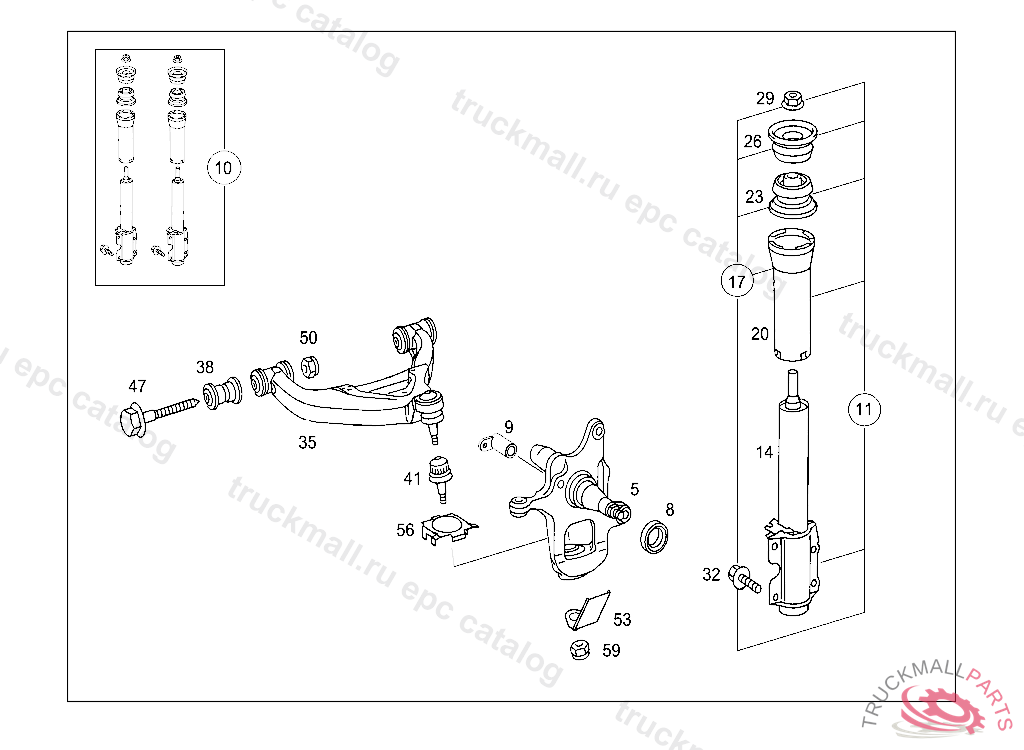

Поз.
Артикул
Описание
5
STEERING KNUCKLE FRONT AXLE,RIGHT
5
STEERING KNUCKLE FRONT AXLE,LEFT
10
CHASSIS EQUIPMENT PACKAGE LEFT AND RIGHT PARTS KIT
10
CHASSIS EQUIPMENT PACKAGE LEFT AND RIGHT PARTS KIT
11
SHOCK ABSORBER FOR MOBILE HOME
11
SHOCK ABSORBER PARTS KIT
11
SHOCK ABSORBER PARTS KIT
14
SHOCK ABSORBER
17
PARTS KIT. SHOCK ABSORBER PARTS KIT
20
GUIDE HYDROPNEUMATIC SPRING LEG TO FRAME
23
RUBBER MOUNTING HYDROPNEUMATIC SPRING LEG TO FRAME
26
RUBBER MOUNTING HYDROPNEUMATIC SPRING LEG TO FRAME
29
NUT BEARING BRACKET TO BRAKE ANCHOR
29
NUT HYDROPNEUMATIC SPRING LEG TO FRAME
32
BOLT AND WASHER ASSY. STRUT TO BEARING BRACKET M14X1.5X25
35
TRANSVERSE CONTROL ARM AXLE BEAM,LEFT
35
TRANSVERSE CONTROL ARM AXLE BEAM,RIGHT
38
BEARING TRANSVERSE CONTROL ARM
41
JOINT TRANSVERSE CONTROL ARM
41
SUPPORTING JOINT TRANSVERSE CONTROL ARM
47
SCREW , Replaced By: A9019900312
47
SCREW CONTROL ARM TO FRONT AXLE
50
NUT SUPPORT TO FRAME
50
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
53
PROTECTIVE PLATE , Replaced By: A9014210220
53
PROTECTIVE PLATE SUPPRTING JOINT PROTECTION
59
HEXAGON NUT LOWER JOINT TO STEERING KNUCKLE
59
NUT , Replaced By: A0019900050
