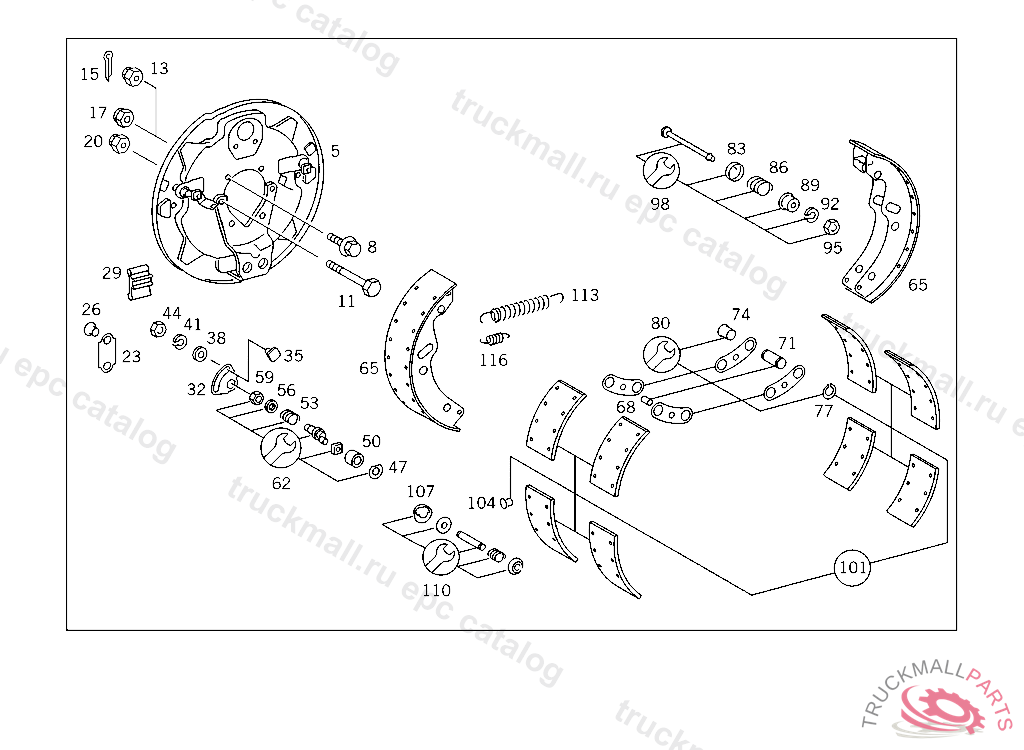

Поз.
Артикул
Описание
5
BRAKE ANCHOR PLATE , Replaced By: A3534200516
5
BRAKE ANCHOR PLATE , UP TO CHASSIS 910369 ALSO INSTALLED ON 500000-501455 FROM CHASSIS 501456-599999 AND FROM CHASSIS 910370 SEE UNIT MICROFICHE 730.800
8
SCREW , Replaced By: A0089908001
8
SCREW , Replaced By: N900170012019, +001N913001012000
8
SCREW , Replaced By: N900170012001, +001N913001012000
8
SCREW , 10/20 FROM CHASSIS 796991, 50/60 FROM CHASSIS 790759 ALSO INSTALLED ON 500001-599999 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
11
SCREW , UP TO CHASSIS 910369 ALSO INSTALLED ON 500000-501455 FROM CHASSIS 501456-599999 AND FROM CHASSIS 910370 SEE UNIT MICROFICHE 730.800
13
NUT , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
15
COTTER PIN TRAILER COUPLING TO REAR CROSS MEMBER
17
NUT END PIECE TO EXHAUST PIPE
20
NUT STEERING BRACKET TO FRAME
23
INSPECTION HOLE COVER
26
RIVET
29
PLUG PROTECTIVE PLATE
32
LOCK BRAKE SHOE ADJUSTMENT,1 239645
35
SCREW , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
38
WASHER
41
LOCK WASHER FITTING TO BRACKET
44
NUT STRAP TO SUPPORT
47
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
50
SLIDE BRAKE READJUSTMENT
50
SLIDE , Replaced By: A3024210329
50
SLIDE , Replaced By: A3024210229
53
SPRING ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
56
WASHER , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
59
NUT , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
62
REPAIR KIT , Replaced By: A3024202938
62
ADJUSTER. REPAIR KIT READJUSTMENT OF REAR WHEEL BRAKE,1 239645
65
BRAKE SHOE , Replaced By: A3534200819
65
BRAKE SHOE , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
68
BUSHING ,3 096825
71
PIVOT PIN SHACKLE TO BRAKE SHOE
74
PIN SHACKLE TO BRAKE SHOE
77
LOCK RING TRANSMISSION CASE,TOP
80
REPAIR KIT BRAKE SHOE SHACKLE, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
80
REPAIR KIT , Replaced By: A3384200489
80
REPAIR KIT , Replaced By: A3384200289
80
REPAIR KIT BRAKE SHOE SHACKLE,3 096825
83
FILLER
86
SPRING , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
86
SPRING
89
FILLER
92
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
95
NUT
98
REPAIR KIT BRAKE SHOE MOUNTING BOLT
98
REPAIR KIT , Replaced By: A3584200182
101
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 17.30 MM,8X 353 423 37 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
101
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 15.30 MM,8X 353 423 35 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
101
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 16.30 MM,8X 353 423 36 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
104
PANHEAD RIVET BRAKE LINING TO BRAKE SHOE 15 MM
104
RIVET BRAKE LINING 15 MM
107
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
110
REPAIR KIT BRAKE SHOE SHACKLE SPACER PIN
110
REPAIR KIT , Replaced By: A3384200082
113
SPRING , Replaced By: A3524210192
113
SPRING LONG
116
SPRING SHORT
