Mercedes N912004008102 - Кольцо стопорное

VL 2/4-3,4 730.800

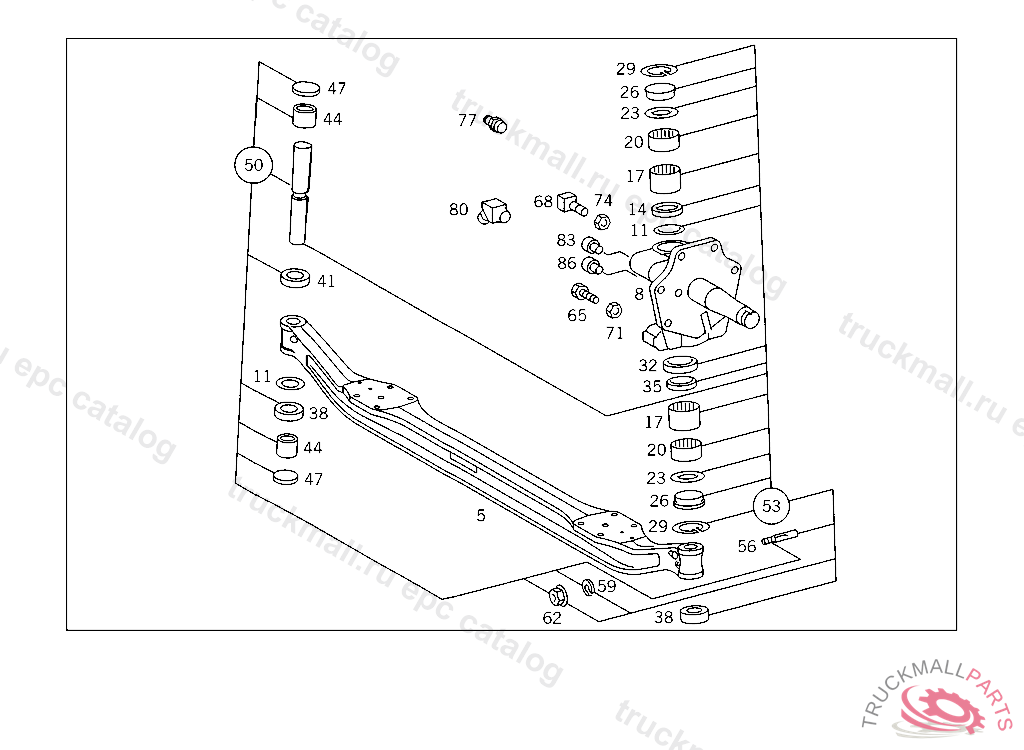

33 FRONT AXLE - 250 AXLE CASING,STEERING,KNUCKLES,TIE ROD IL. 1

Поз.
Артикул
Описание
5
A3533310201
FRONT AXLE BEAM
8
A3533300020
STEERING KNUCKLE , Replaced By: A3533320001
8
A3533320001
STEERING KNUCKLE
11
A3143321052
SPACER WASHER1.60 MM
11
A3143321152
SPACER WASHER1.70 MM
11
A3143320652
SPACER WASHER1.20 MM
11
A3143320852
SPACER WASHER1.40 MM
11
A3143320452
SPACER WASHER1.00 MM
11
A3143320352
SPACER WASHER0.90 MM
11
A3143320552
SPACER WASHER1.10 MM
11
A3143320952
SPACER WASHER1.50 MM
11
A3143320752
SPACER WASHER1.30 MM
38
A0009811118
ROLLER BEARING
44
A3533320048
BUSHING
47
A3129971125
EXPANSION PLUG
50
A3283300019
KING PIN STANDARD 30 MM
50
A3285860033
REPAIR KIT , Replaced By: A3283300019
56
A3279900137
BOLT , 344.030,032,033,040,041,057,058 UP TO CHASSIS 415524,UP TO CHASSIS SEE SPARE PARTS LIST 732.7
56
A3129900137
BOLT
59
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
62
A0009905650
NUT UPPER KINGPIN TO STEERING KNUCKLE
65
N308676012015
SCREW LEFT AND RIGHT CONSOLES TO CAB
65
N000961012122
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
71
N000934012022
NUT STRAP TO SUPPORT
77
N071412010100
GREASE NIPPLE PROTECTIVE TUBE
80
N071412010200
GREASE NIPPLE
83
N900083010000
PLUG
