Поз.
Артикул
Описание

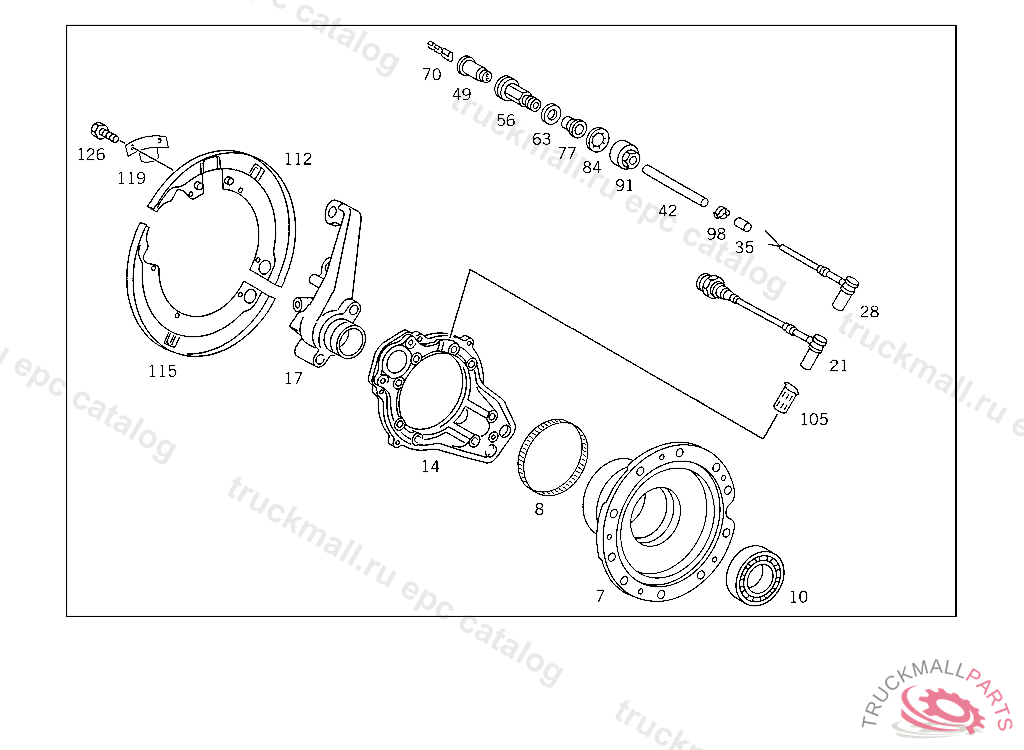

7
WHEEL HUB CASTING
7
WHEEL HUB , NOT USED
7
WHEEL HUB , ONLY REPLACEABLE BY PAIRS NOT USED
7
WHEEL HUB , Replaced By: A3463341801, +001A0039818605
7
WHEEL HUB , Replaced By: A3463340601, +001A3463340115
7
WHEEL HUB , Replaced By: A3463341801, +001A0039818605
7
WHEEL HUB , Replaced By: A3463341101
8
SENDER UNIT (MEASURING RING) ANTI-LOCK BRAKING SYSTEM
10
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
10
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
10
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
14
BRAKE ANCHOR RIGHT
14
BRAKE ANCHOR LEFT
17
BEARING BRACKET
17
BEARING BRACKET LEFT
17
BEARING BRACKET RIGHT
17
BEARING BRACKET
21
SPEED SENSOR FRONT AXLE,LEFT AND RIGHT
21
SENSOR CABLE FRONT AXLE,LEFT AND RIGHT
21
SENSOR CABLE FRONT AXLE,LEFT AND RIGHT
21
SENDER UNIT , THE OLD PART MUST NO LONGER BE INSTALLED ONLY REPLACEABLE BY PAIRS, Replaced By: A6205400517
28
SENSOR ,5 497510
28
SENSOR , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6205420517
28
SENDER UNIT LEFT AND RIGHT
35
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
42
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
42
PLASTIC PIPE AERATION, ORDER BY THE METER
49
PLUG HOUSING ,5 497510
56
BOOT
63
SEALING RING ,5 497746
70
PLUG ,5 387552
77
THRUST RING ,5 0994165 387552
84
LOCK PLATE ,5 0994165 387552
91
NUT ,5 0994165 387552
98
LOOM TIE LINE MOUNTING
105
LOCK. BUSHING , Replaced By: A3555420273
105
LOCK , Replaced By: A9755420050
112
PROTECTIVE PLATE LEFT TOP,W 999999, V 041973
115
PROTECTIVE PLATE RIGHT TOP,W 999999, V 041973
119
PROTECTIVE PLATE , Replaced By: A3074211020
119
PROTECTIVE PLATE ANTI-LOCK BRAKING SYSTEM ON FRONT AXLE
126
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
126
SCREW , Replaced By: N304017008008
999
BRAKE ANCHOR , Replaced By: A3464213106
999
WHEEL HUB , Replaced By: A3463341101
999
WHEEL HUB
999
PLANETARY GEARING
999
PROTECTIVE PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3574201744
999
PROTECTIVE PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3574201844
