Поз.
Артикул
Описание

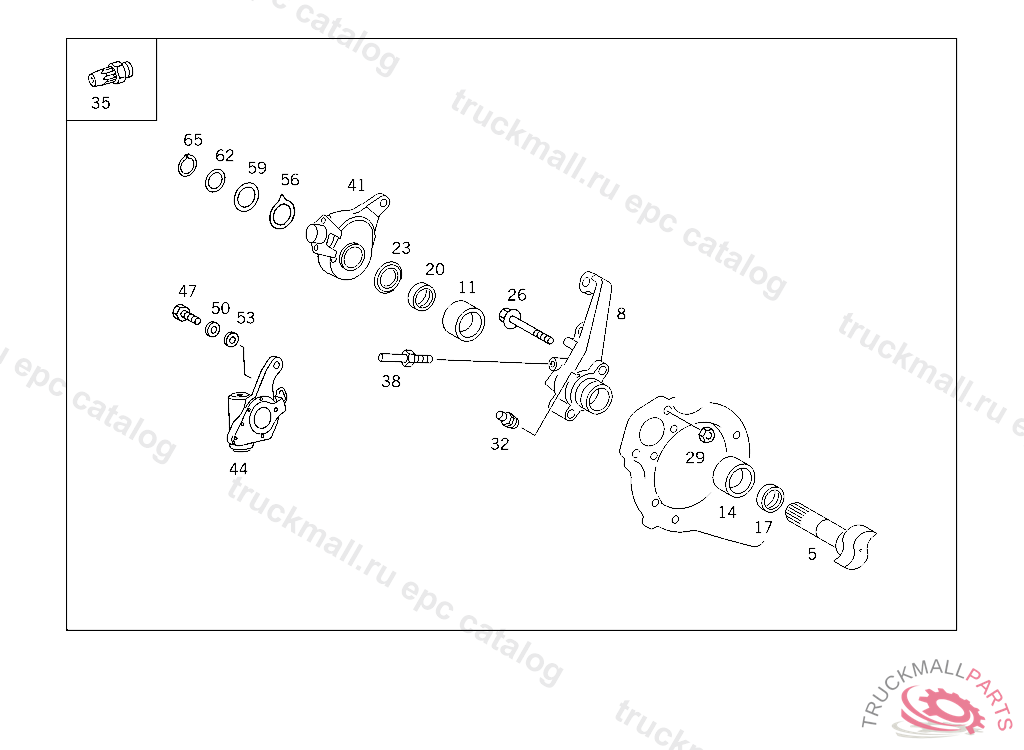

5
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
5
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
5
BRAKE CAMSHAFT , Replaced By: A6234210536
5
BRAKE CAMSHAFT , Replaced By: A6234210636
8
BEARING BRACKET
8
BEARING BRACKET
11
BUSHING INSIDE
14
BUSHING OUTSIDE
17
SEAL RING INSIDE BEARING BRACKET
17
SEAL RING INSIDE BEARING BRACKET
17
SEAL RING , Replaced By: A0129974147
17
SEAL RING , Replaced By: A0149972247
17
SEAL RING INSIDE BEARING BRACKET
20
SEAL RING OUTSIDE BEARING BRACKET
20
SEAL RING OUTSIDE BEARING BRACKET
20
SEAL RING OUTSIDE BEARING BRACKET
23
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
26
SCREW BEARING BRACKET TO BRAKE ANCHOR
26
SCREW , Replaced By: A3469902604
29
NUT , Replaced By: A0009905750
29
NUT BEARING BRACKET TO BRAKE ANCHOR
29
NUT BEARING BRACKET TO BRAKE ANCHOR
32
GREASE NIPPLE
38
PIN ADJUSTER STOP
41
ADJUSTER RIGHT
41
ADJUSTER LEFT
47
HEXAGON HEAD BOLT CONTROL ARM, LINKAGE ADJUSTER ON BEARING BRACKET M8X12
50
WASHER , Replaced By: N000125008443
50
WASHER EXHAUST MUFFLER TO STRAP
53
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
53
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
56
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
59
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
59
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
59
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
59
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
62
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
62
SPACER WASHER BRAKE SHAFT TO BEARING BRACKET 3.50 MM
62
SPACER WASHER BRAKE SHAFT TO BEARING BRACKET 4,00MM
62
SPACER WASHER BRAKE SHAFT TO BEARING BRACKET 4.50 MM
65
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
