Поз.
Артикул
Описание

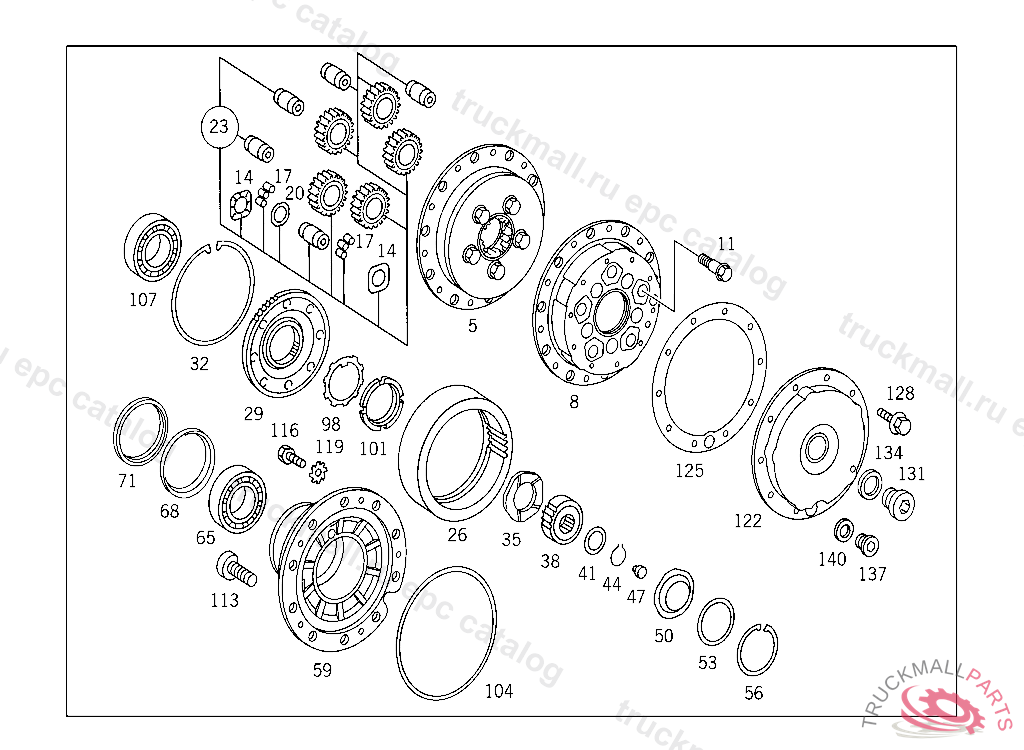

5
PLANETARY GEARING
5
PLANETARY GEARING FRONT AXLE, V 290185
8
DRUM HUB
8
DRUM HUB (BELL HUB) WITH PLANETARY CARRIER, V 290185
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
14
THRUST WASHER , Replaced By: A3463541362
14
THRUST WASHER PLANET GEAR
17
NEEDLE SET50 PIECES
20
THRUST WASHER PLANET GEAR
23
PLANET GEAR (PARTS KIT),PLANETARY GEAR TRAIN
23
PLANET GEAR (PARTS KIT),NUMBER OF TEETH: "24"
26
OUTSIDE GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 75, V 290186
26
OUTSIDE GEAR NUMBER OF TEETH: 56, MAN AXLE
29
SUPPORT OUTSIDE GEAR
29
SUPPORT OUTSIDE GEAR
32
LOCK RING ,874843 MAN AXLE
32
WIRE RING OUTSIDE GEAR TO SUPPORT
35
GUARD PLATE PLANETARY GEAR TRAIN
38
SUN GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 25, V 290186
38
SUN GEAR NUMBER OF TEETH INSIDE:/OUTSIDE: 34 / 19
41
THRUST RING SUN GEAR,OUTSIDE
44
LOCK RING BEARING TO DRIVE SHAFT,183596
47
THRUST WASHER AXIAL DIFFERENTIAL DRIVE SHAFT
50
THRUST WASHER AXIAL DIFFERENTIAL DRIVE SHAFT
53
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
53
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
53
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
53
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
53
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
56
LOCK RING THRUST WASHER TO BELL HUB
59
WHEEL HUB CASTING
59
WHEEL HUB , Replaced By: A3463341101
65
TAPERED ROLLER BEARING FRONT WHEEL HUB,INSIDE
65
TAPERED ROLLER BEARING
65
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
68
SEAL RING WHEEL HUB
68
SEAL RING , Replaced By: A0159975847
71
SEAL RING , Replaced By: A0159975747
71
SEAL RING , Replaced By: A0159975747
71
SEAL RING WHEEL HUB
98
LOCK PLATE ADJUSTER TO BRAKE CAMSHAFT
101
GROOVED NUT HUB AND SUPPORT TO STEERING KNUCKLE, MAN AXLE
101
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
101
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
104
SEAL RING PLANETARY GEAR TRAIN TO WHEEL HUB
107
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
107
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
107
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
113
WHEEL MOUNTING BOLT , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
113
WHEEL MOUNTING BOLT INTERMEDIATE PIECE TO REAR AXLE
116
HEXAGON HEAD BOLT BRACKET TO CROSS MEMBER
119
TOOTHED WASHER ELECTRIC CABLE TO FUSE BOX
122
END COVER , Replaced By: A6243560020, +001A6503560080, +001A6249970032, +010N914146010401
122
HUB CAP BELL HUB
125
GASKET COVER TO HUB
128
SCREW COVER TO BELL HUB
131
SCREW PLUG OIL FILLING
134
SEALING RING OIL FILLING
137
SCREW PLUG OIL DRAIN
140
SEALING RING. SEAL RING OIL DRAIN
