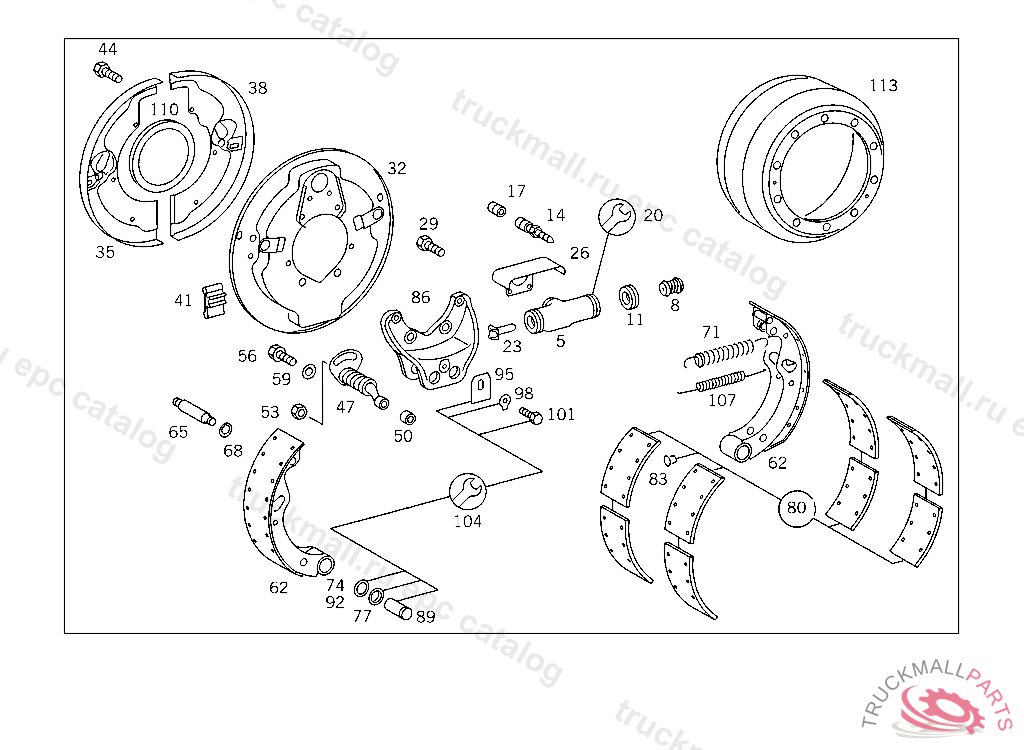

Поз.
Артикул
Описание
5
WHEEL BRAKE CYLINDER50.8 MM,SCHAEFER
8
SPRING , Replaced By: A3454237093
11
PROTECTIVE CAP SHEET METAL VERSION
14
VALVE CLUTCH SLAVE CYLINDER
17
PROTECTIVE CAP , Replaced By: A0004217187
17
PROTECTIVE CAP ,5 962906
20
REPAIR KIT WHEEL CYLINDER SCHAEFER
20
REPAIR KIT ,F 000830
23
THRUST PIN
26
PROTECTIVE PLATE , Replaced By: A3854210020
26
PROTECTIVE PLATE WHEEL CYLINDER TO BRAKE ANCHOR PLATE
29
SCREW SHIFT LEVER TO TRANSMISSION
35
PROTECTIVE PLATE
38
PROTECTIVE PLATE WITH BEAD
41
PLUG PROTECTIVE PLATE
44
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
47
ADJUSTER
47
ADJUSTER , Replaced By: A3604201038
47
ADJUSTER , Replaced By: A3604201138
50
SLIDE , Replaced By: A3024210329
50
SLIDE BRAKE READJUSTMENT
53
NUT , 029312 UP TO IDENT NO. 5 463887, FROM IDENT NO. 5 463888 SEE 744.508
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
59
WASHER , Replaced By: N000125010532
59
WASHER RADIATOR TO RUBBER MOUNTING
62
BRAKE SHOE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO FRON AXLE D 027673,E 092867,G 009579, Replaced By: A3854201719
62
BRAKE SHOE WELDED VERSION, ONLY USE CAST-IRON OR SHEET-IRON BRAKE SHOES AT THE SAME TIME ON ONE AXLE
65
PIN
68
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
71
SPRING BRAKE SHOE
74
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
77
SPACER WASHER BRAKE SHOE TO BRAKE ANCHOR
77
SPACER WASHER , Replaced By: A3074210252
77
SPACER WASHER , Replaced By: A3854210352
80
BRAKE LINING , Replaced By: A6174232130
80
BRAKE LINING , Replaced By: A6174232230
80
BRAKE LINING , Replaced By: A6174232330
80
BRAKE LINING , Replaced By: A6174232430
80
BRAKE LINING (PARTS KIT) STANDARD,WITH WEAR INDICATOR 18.00 MM,BERAL
80
BRAKE LINING (PARTS KIT) REPAIR SIZE 0,FOR EXPORT, WITH WEAR INIDCATOR 16.70 MM,BERAL
80
BRAKE LINING (PARTS KIT) REPAIR SIZE II,WITH WEAR INDICATOR 19.50 MM,BERAL
80
BRAKE LINING (PARTS KIT) REPAIR SIZE I,WITH WEAR INDICATOR 18.80 MM,BERAL
83
PANHEAD RIVET BRAKE LINING TO BRAKE SHOE 15 MM
83
PANHEAD RIVET BRAKE LINING TO BRAKE SHOE 18 MM
83
RIVET BRAKE LINING 15 MM
83
RIVET
86
BRAKE ANCHOR ,2 169400, Replaced By: A3014230006, +002A3819940009
86
BRAKE ANCHOR ,2 169401
89
PIN , Replaced By: A3454217074
89
PIN BRAKE SHOE TO BRAKE ANCHOR
95
LOCK BRAKE SHOE TO BRAKE ANCHOR
95
LOCK BRAKE SHOE TO BRAKE ANCHOR
95
LOCK , Replaced By: A9429940009
98
LOCK BRAKE SHOE TO BRAKE ANCHOR PLATE, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185 UP TO CHASSIS FB588185,FROM CHASSIS FB588186,SEE SPARE PARTS LIST 743.0
98
LOCK PLATE BRAKE SHOE TO BRAKE ANCHOR PLATE, UP TO CHASSIS 588185,FROM CHASSIS FB588186,SEE SPARE PARTS LIS T,BM 732.7
101
SCREW SELF-LOCKING M 10X20
101
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
104
REAR WHEEL BRAKE BRAKE SHOE BEARING
104
REPAIR KIT BRAKE SHOE BEARING
104
REPAIR KIT , Replaced By: A3074204002
107
SPRING
110
OIL BAFFLE FRONT WHEEL HUB
113
BRAKE DRUM FRONT AXLE
