Поз.
Артикул
Описание
5

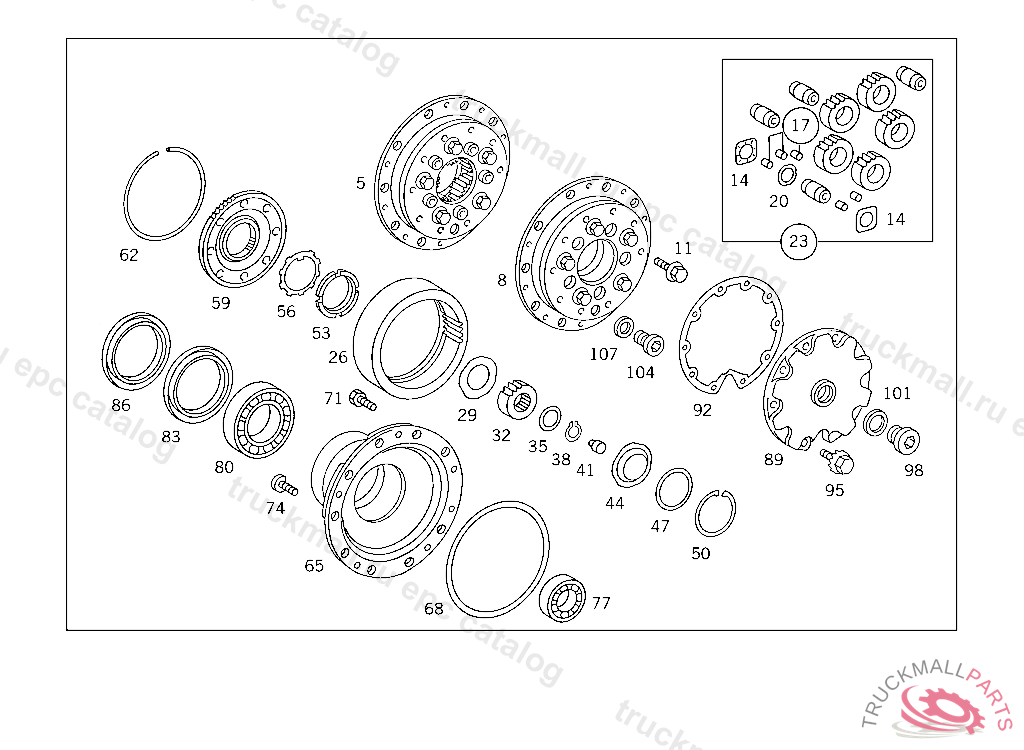

PLANETARY GEARING FRONT AXLE, V 290185
5
PLANETARY GEARING
8
DRUM HUB (BELL HUB) WITH PLANETARY CARRIER, V 290185
8
DRUM HUB
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
14
THRUST WASHER , Replaced By: A3463541362
14
THRUST WASHER PLANET GEAR
17
NEEDLE SET50 PIECES
20
THRUST WASHER PLANET GEAR
23
PLANET GEAR (PARTS KIT),PLANETARY GEAR TRAIN
23
PLANET GEAR (PARTS KIT),NUMBER OF TEETH: "24"
26
OUTSIDE GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 75, V 290186
26
OUTSIDE GEAR NUMBER OF TEETH: 56, MAN AXLE
29
GUARD PLATE PLANETARY GEAR TRAIN
32
SUN GEAR NUMBER OF TEETH INSIDE:/OUTSIDE: 34 / 19
32
SUN GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 25, V 290186
35
THRUST RING SUN GEAR,OUTSIDE
38
LOCK RING BEARING TO DRIVE SHAFT,183596
41
THRUST WASHER AXIAL DIFFERENTIAL DRIVE SHAFT
44
THRUST WASHER AXIAL DIFFERENTIAL DRIVE SHAFT
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
47
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
50
LOCK RING THRUST WASHER TO BELL HUB
53
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
53
GROOVED NUT HUB AND SUPPORT TO STEERING KNUCKLE, MAN AXLE
53
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
56
LOCK PLATE ADJUSTER TO BRAKE CAMSHAFT
59
SUPPORT OUTSIDE GEAR
59
SUPPORT OUTSIDE GEAR
62
WIRE RING OUTSIDE GEAR TO SUPPORT
65
WHEEL HUB , Replaced By: A3463341101
65
WHEEL HUB CASTING
68
SEAL RING PLANETARY GEAR TRAIN TO WHEEL HUB
71
HEXAGON HEAD BOLT BRACKET TO CROSS MEMBER
74
WHEEL MOUNTING BOLT INTERMEDIATE PIECE TO REAR AXLE
74
WHEEL MOUNTING BOLT , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
77
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
77
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
77
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
80
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
80
TAPERED ROLLER BEARING
80
TAPERED ROLLER BEARING FRONT WHEEL HUB,INSIDE
83
SEAL RING WHEEL HUB
83
SEAL RING , Replaced By: A0159975847
86
SEAL RING , Replaced By: A0159975747
86
SEAL RING , Replaced By: A0159975747
86
SEAL RING WHEEL HUB
89
HUB CAP BELL HUB
92
GASKET COVER TO HUB
95
SCREW COVER TO BELL HUB
98
SCREW PLUG OIL FILLING
101
SEALING RING OIL FILLING
104
SCREW PLUG OIL DRAIN
107
SEALING RING. SEAL RING OIL DRAIN
