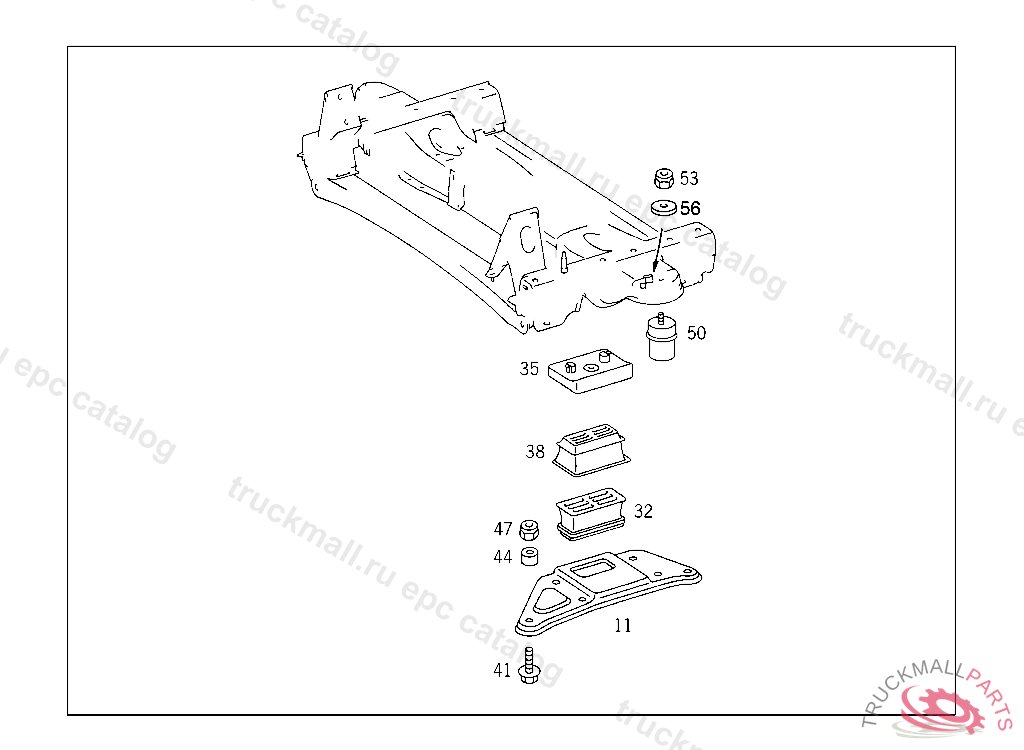

Поз.
Артикул
Описание
11
PLATE RIGHT SPRING
11
PLATE LEFT SPRING
32
SPRING SEAT FRONT SPRING TO FRONT AXLE,LEFT
32
SPRING SEAT FRONT SPRING TO FRONT AXLE,RIGHT
32
SPRING SEAT FRONT SPRING TO FRONT AXLE,RIGHT
32
SPRING SEAT FRONT SPRING TO FRONT AXLE,LEFT
35
SHIM FRONT SPRING TO FRONT AXLE,LEFT
35
SHIM FRONT SPRING TO FRONT AXLE,RIGHT
38
SPRING SEAT FRONT SPRING TO FRAME
38
SPRING SEAT FRONT SPRING TO FRAME
41
SCREW , Replaced By: N910105012013
41
SCREW , Replaced By: A0019908204
44
BUSHING FRONT SPRINGS TO FRONT AXLE
47
NUT BRACKET TO SIDE MEMBER M12X1.5
47
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
RUBBER BUFFER AXLE STOP, ONLY REPLACEABLE BY PAIRS
53
NUT STRAP TO BRACKET
