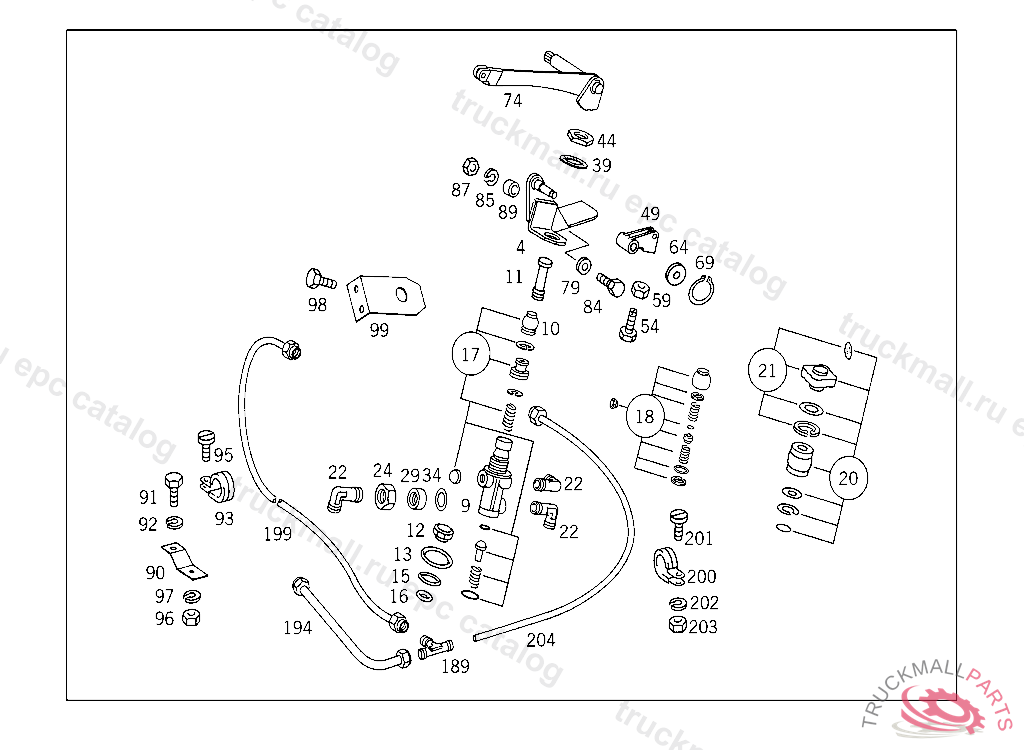

Поз.
Артикул
Описание
4
BRACKET
9
VALVE , Replaced By: A0004342201
9
VALVE"WABCO DO BRASIL"
9
VALVE GEAR CLUSTER SHIFT
9
VALVE"KNORR"
10
CUP 3/2-WAY VALVE WABCO
11
HANDLETO 000 434 23 01
12
SEAL RINGTO 000 434 30 01
13
SEAL RINGTO 000 434 30 01
15
SEAL RINGTO 000 434 30 01
16
SEAL RINGTO 000 434 30 01
17
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
18
REPAIR KIT 3/2-WAY VALVE WABCO
20
REPAIR KIT , Replaced By: A0004304106
20
REPAIR KIT LARGE SCOPE TO 000 434 30 01
21
REPAIR KIT , Replaced By: A0034301281
21
REPAIR KIT SMALL SCOPE TO 000 434 30 01
21
REPAIR KIT SMALL SCOPE TO 345 434 71 01
22
ELBOW FITTING AT CYLINDER
24
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
29
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
29
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
34
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
39
SERRATED WASHER EXHAUST BRAKE FOOT-OPERATED SWITCH
44
NUT , Replaced By: N080705026003
49
LEVER
54
SCREW CLUTCH PEDAL
59
NUT LEVER TO SHIFTING SHAFT
64
WASHER GROUND CABLE
69
LOCK RING
74
LEVER , Replaced By: A3502907416
74
PEDAL
79
WASHER GROUND CABLE
84
SCREW BRACKET TO RETARDER
84
SCREW RADIATOR M 10X45
85
LOCK WASHER , Replaced By: N912004010102
87
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
89
SHIM BRACKET TO FRAME
90
BRACKET CABLE TO TRANSMISSION
90
BRACKET CABLE TO TRANSMISSION
91
SCREW BRACKET TO TRANSMISSION M012X1,5X20
92
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
93
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
93
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
95
SCREW CABLE TO ALTERNATOR
96
NUT BALL PIVOT TO LEVER
97
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
98
SCREW CROSS MEMBER TO SIDE MEMBERS
99
BRACKET BRAKE HOSE,FRONT
189
FITTING
189
T-FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227, Replaced By: N000000006204
194
LINE FROM FITTING TO OPERATING VALVE
199
LINE700 MM
200
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
201
SCREW CABLE TO ALTERNATOR
202
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
203
NUT
204
LINE FROM OPERATING VALVE TO 4/2-WAY VALVE
999
LOOM TIE , Replaced By: A0019978390
999
HANDLE
999
FRAME
999
BUSHING CLUTCH PEDAL
999
BUSHING OPERATING VALVE
999
ROLLER LEVER
999
DECALCOMANIA , NOT USED
999
RIVET LEVER
