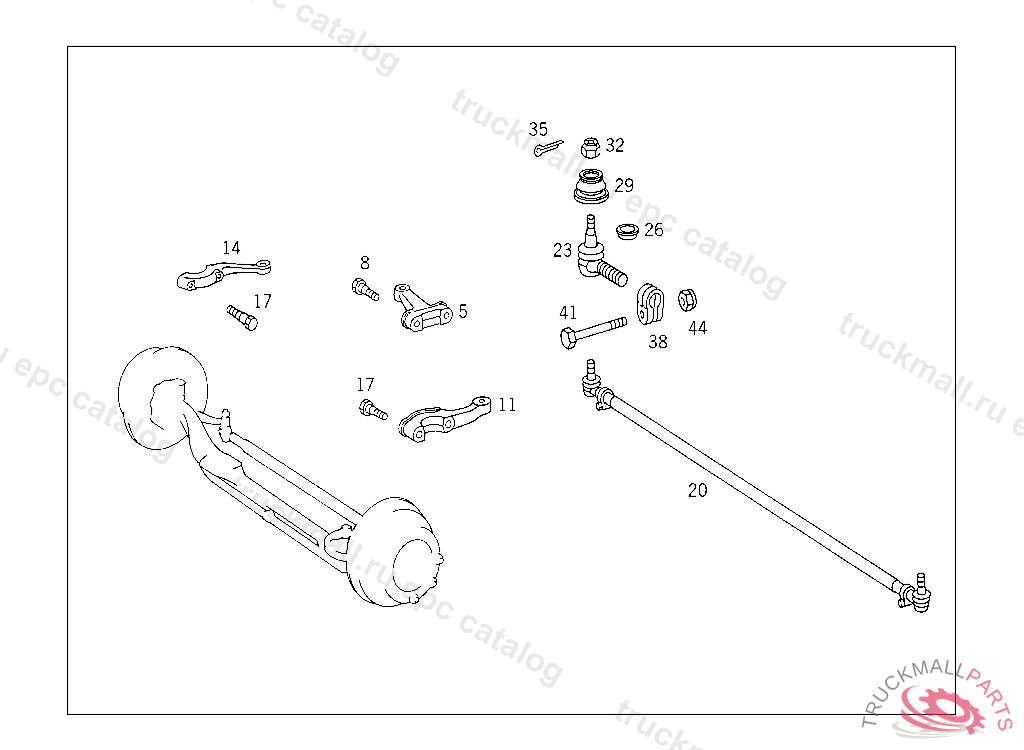

VO 3 - 40 DL 6,0 - 732.795 - 33 732.7 FRONT AXLE
Поз.
Артикул
Описание
5
STEERING ARM LEFT,840426
8
SCREW CONTROL ARM TO BEARING BRACKET M 20X1.5X70
11
STEERING ARM LEFT
14
STEERING ARM RIGHT
17
SCREW STEERING ARM TO STEERING KNUCKLE M 20X1.5X100
20
TIE RODZF
23
BALL JOINT R.H. THREAD TO 368 330 00 03
23
BALL JOINT L.H. THREAD TO 368 330 00 03
32
NUT DRAG LINK END M 24X1.5
32
NUT BALL PIVOT TO STEERING ARM
35
COTTER PIN
38
CLAMP JOINT TO TIE ROD 50 MM,V 732441, Replaced By: A0029953502
