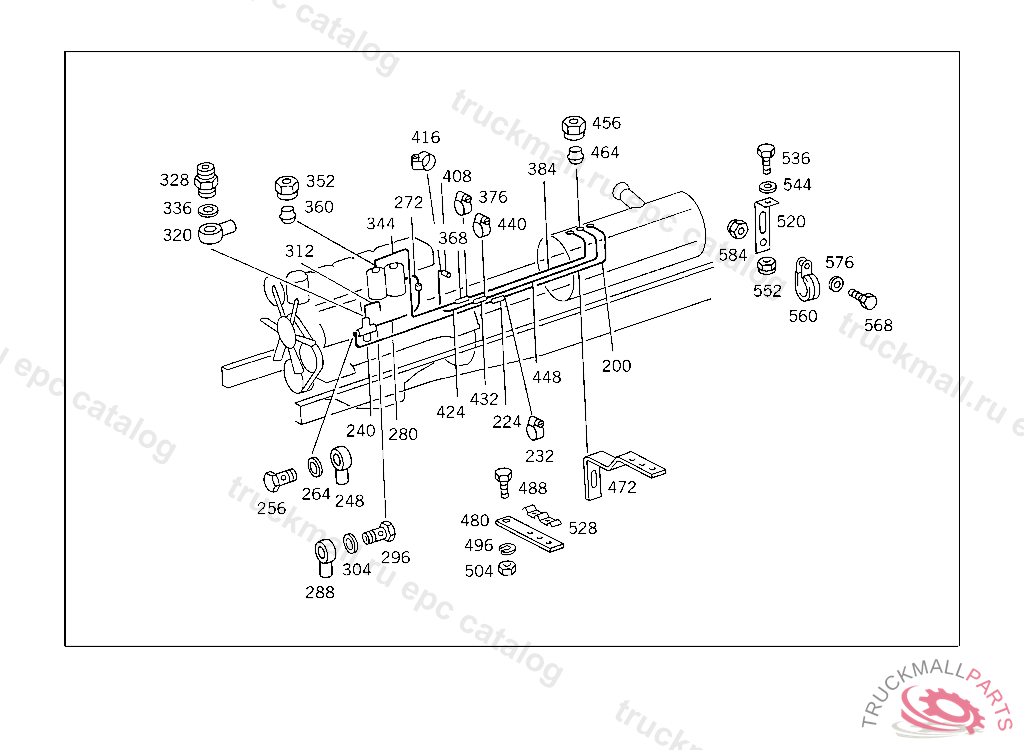

Поз.
Артикул
Описание
200
LINE FROM FUEL TANK TO RUBBER HOSE,FB689884
200
LINE , Replaced By: A3454709364
224
HOSE
232
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
240
LINE FROM HOSE TO FEED PUMP
248
CONNECTOR FROM HOSE TO FEED PUMP, 344.058 UP TO SHASSIS 659793
256
HOLLOW SCREW
264
SEAL RING INJECTION PUMP
272
LINE , Replaced By: A3660700032
272
LINE
280
LINE
280
LINE , Replaced By: A3660700032
288
BANJO UNION , Replaced By: N915052008000
288
BANJO UNION FEED 8/14 MM,659794
296
HOLLOW SCREW
296
HOLLOW SCREW
304
SEAL RING INJECTION PUMP
312
LINE FOR INJECTION PUMP BREATHING
320
BANJO UNION FEED 8/14 MM,659794
320
BANJO UNION , Replaced By: N915052008000
328
HOLLOW SCREW FITTING
336
SEAL RING INJECTION PUMP
344
LINE , Replaced By: A3444702864
344
LINE FROM FUEL FILTER TO RUBBER HOSE,RETURN
352
NUT. UNION NUT RETURN
360
SEAL CONE , 344.058 UP TO SHASSIS 659793
368
HOSE
376
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
384
LINE FROM RUBBER HOSE TO FUEL TANK,FB689884
384
LINE , Replaced By: A3454709664
408
HOSE , Replaced By: A3440780081
408
HOSE , Replaced By: A3769978182
408
HOSE , ORDER BY THE METER
416
CLAMP LINE MOUNTING
424
LINE , Replaced By: A3444708665
424
LINE FROM CYLINDER HEAD TO HOSE
432
HOSE
440
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
448
LINE FROM RUBBER HOSE TO FUEL TANK,FB689884
448
LINE , Replaced By: A3454709764
456
NUT. UNION NUT RETURN
464
SEAL CONE , 344.058 UP TO SHASSIS 659793
464
BALL-TYPE NIPPLE. SEAL CONE , Replaced By: A3449907067
472
BRACKET , Replaced By: A3444760336
472
BRACKET FUEL LINE
480
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
480
SHIM , Replaced By: A3184924841
488
SCREW BRACKET TO SIDE MEMBER
488
SCREW , Replaced By: N304017010040
488
SCREW , Replaced By: N304017010002
496
LOCK WASHER , Replaced By: N912004010102
504
NUT BRACKET TO SIDE MEMBER,XB209706
520
BRACKET AT CROSS MEMBER
520
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
528
CLAMP LINE MOUNTING
536
SCREW LINES TO BRACKET
544
WASHER BRACKET TO CAB REAR PANEL
552
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
560
CLAMP FUEL LINES TO BRACKET
560
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
568
SCREW CLAMP TO BRACKET
576
WASHER , Replaced By: N009021006208
584
NUT PUMP TO BRACKET
999
CONNECTOR
999
ELBOW FITTING FUEL LINES TO FITTING CONEXAO ESPIGAO - "L"
