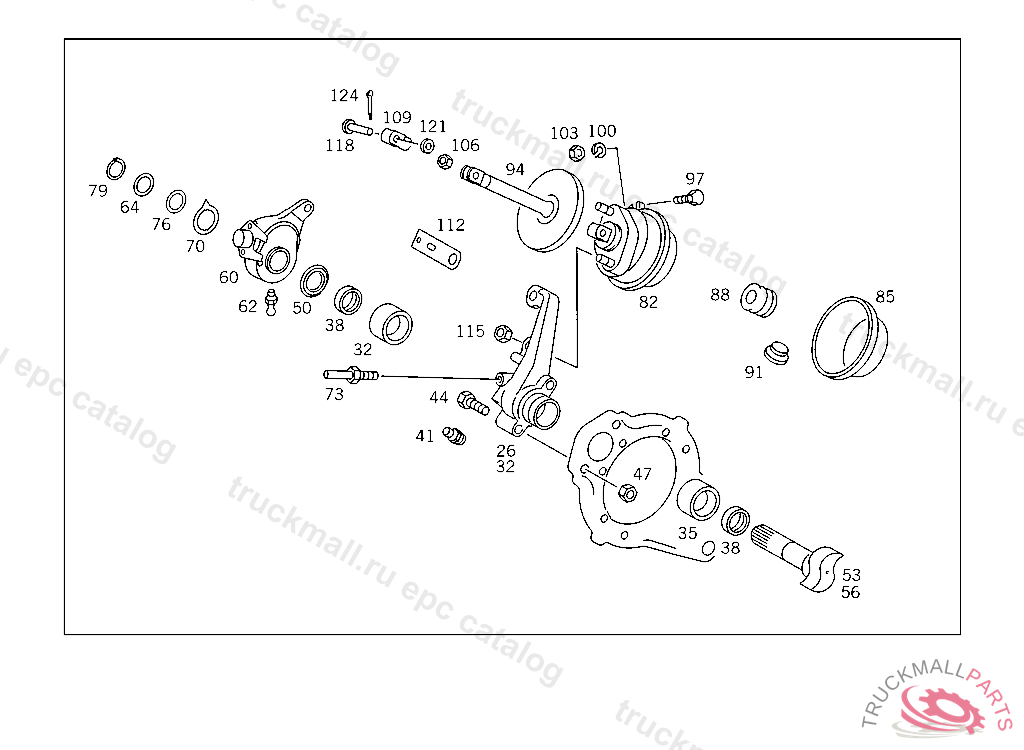

Поз.
Артикул
Описание
26
BEARING BRACKET FRONT AXLE,LEFT
26
BEARING BRACKET FRONT AXLE,RIGHT
32
BUSHING OUTSIDE
35
BUSHING INSIDE
38
SEAL RING OUTSIDE BEARING BRACKET
38
SEAL RING OUTSIDE BEARING BRACKET
38
SEAL RING INSIDE BEARING BRACKET
38
SEAL RING , Replaced By: A0129974147
38
SEAL RING INSIDE BEARING BRACKET
38
SEAL RING OUTSIDE BEARING BRACKET
38
SEAL RING INSIDE BEARING BRACKET
41
GREASE NIPPLE FOR SPRING
44
SCREW BEARING BRACKET TO BRAKE ANCHOR
47
NUT , Replaced By: A0009905750
47
NUT BEARING BRACKET TO BRAKE ANCHOR
50
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
53
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
56
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
60
ADJUSTER AUTOMATIC,LEFT
60
ADJUSTER AUTOMATIC,RIGHT
62
GREASE NIPPLE PROTECTIVE TUBE
64
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
64
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
64
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
64
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
70
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
73
PIN ADJUSTER STOP
76
SPACER WASHER ADJUSTER
79
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
82
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) GRAU
82
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) KNORR
82
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) BOSCH
82
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
85
DIAPHRAGMTO 007 420 68 18,69 18,70 18,WABCO
85
DIAPHRAGMTO 008 420 95 18,008 420 97 18,BOSCH
88
CUPBOSCH/WABCO
88
CUPKNORR
88
CUPTO 007 420 68 18,WABCO
88
CUPGRAU
91
PLUGTO 694 420 71 18/72 18
91
PLUGTO 009 420 22 18,008 420 20 18
91
PLUGBOSCH
94
PISTONTO 006 420 94 18,BOSCH
97
SCREW , Replaced By: N304017008042
97
SCREW , Replaced By: N304017008040
100
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
103
NUT , Replaced By: N304032008006
106
NUT , Replaced By: N308675014000
109
YOKE BRAKE CYLINDER
112
BRACKET LINE TO REAR AXLE, NOT USED
115
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
118
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
121
WASHER , Replaced By: N000433015005
124
COTTER PIN STRAP TO SUPPORT
999
CONTROL UNIT
999
WORM SCREW"SAB"
999
WORM GEAR"SAB"
999
BUSHING
999
ADJUSTER SLACK ADJUSTER "SAB"
999
HEXAGON HEAD BOLT CONTROL ARM, LINKAGE ADJUSTER ON BEARING BRACKET M8X12
999
WASHER EXHAUST MUFFLER TO STRAP
999
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
999
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
