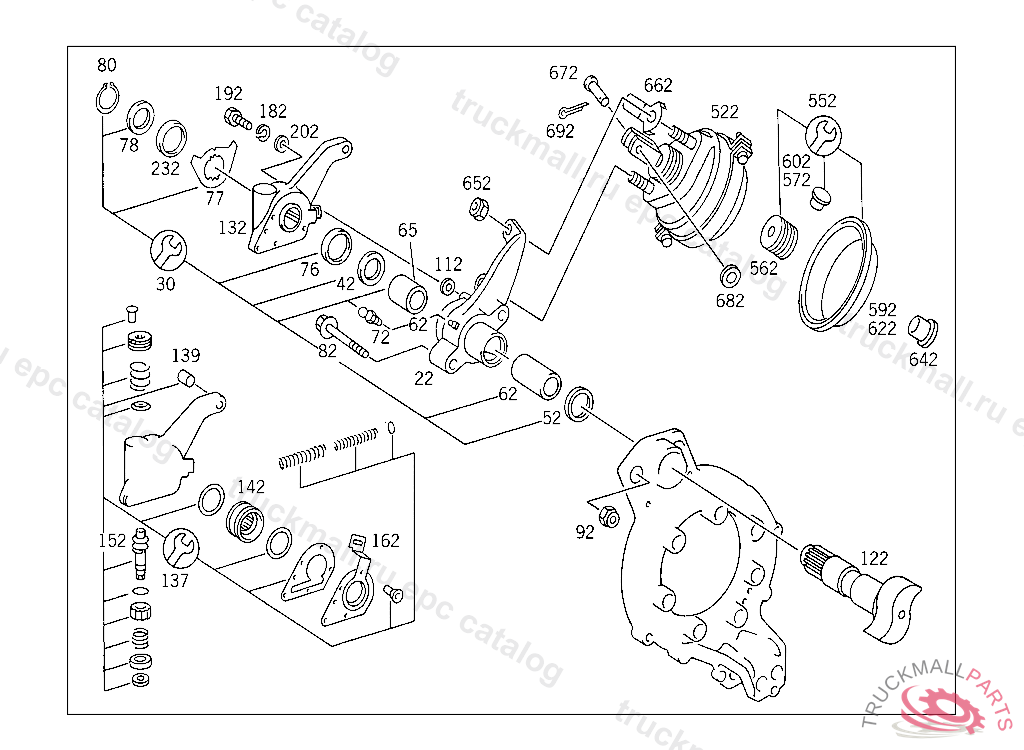

Поз.
Артикул
Описание
22
BRAKE ANCHOR LEFT BRAKE SHAFT
22
BRAKE ANCHOR RIGHT BRAKE SHAFT
30
REPAIR KIT
42
SEAL RING OUTSIDE BEARING BRACKET
42
SEAL RING OUTSIDE BEARING BRACKET
42
SEAL RING OUTSIDE BEARING BRACKET
52
SEAL RING INSIDE BEARING BRACKET
52
SEAL RING , Replaced By: A0149972247
52
SEAL RING INSIDE BEARING BRACKET
52
SEAL RING , Replaced By: A0129974147
52
SEAL RING INSIDE BEARING BRACKET
62
BUSHING OUTSIDE
65
BUSHING INSIDE
72
GREASE NIPPLE
72
GREASE NIPPLE INTERMEDIATE LEVER
76
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
77
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
78
SPACER WASHER ADJUSTER
80
LOCK RING CLUTCH LEVER TO PEDAL SHAFT
82
SCREW BEARING BRACKET TO BRAKE ANCHOR
92
NUT , Replaced By: A0009905750
92
NUT BEARING BRACKET TO BRAKE ANCHOR
112
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
112
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
122
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
122
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
122
BRAKE CAMSHAFT , Replaced By: A6234210136
122
BRAKE CAMSHAFT , Replaced By: A6234210236
132
ADJUSTER SLACK ADJUSTER
137
REPAIR KIT SLACK ADJUSTER "SAB"
139
BUSHING18.00 MM
142
WORM GEAR"SAB"
152
WORM SCREW"SAB"
162
CONTROL UNIT
182
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
192
SCREW CLAMP TO BRACKET AND TO PIPE
202
WASHER EXHAUST MUFFLER TO STRAP
202
WASHER TRAILER PLUG SOCKET TO BRACKET
232
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
232
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
232
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
232
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
522
BRAKE CYLINDERBOSCH
522
BRAKE CYLINDERKNORR
522
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
552
REPAIR KITKNORR
552
REPAIR KIT , Replaced By: A0004308360
562
CUPBOSCH/WABCO
562
CUPKNORR
572
PLUGTO 009 420 22 18,008 420 20 18
592
DIAPHRAGM , Replaced By: A0004315428
592
DIAPHRAGMWABCO
602
PLUGTO 694 420 71 18/72 18
622
DIAPHRAGMBOSCH,K 262627
642
PROTECTIVE CAPBOSCH
652
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
662
BRACKET LINE TO REAR AXLE, NOT USED
672
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
672
PIN , Replaced By: A3619910005
682
WASHER , Replaced By: N000433015005
692
COTTER PIN STRAP TO SUPPORT
999
CUPTO 007 420 68 18,WABCO
999
REPAIR KITWABCO
999
BEARING BRACKET , Replaced By: A6524200578
999
BEARING BRACKET , Replaced By: A6234202078
