Mercedes N912004008102 - Кольцо стопорное

AL 4/5 D 4,3 48:7 733.830

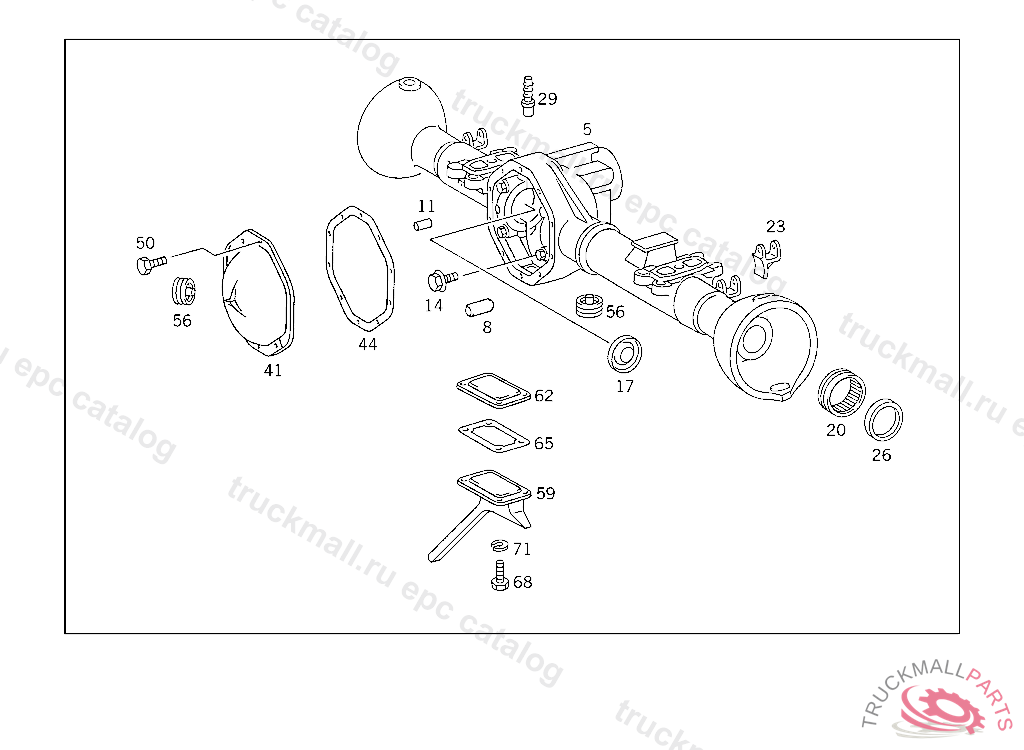

33 733.83 FRONT AXLE - 220 AXLE CASING AND STEERING KNUCKLES

Поз.
Артикул
Описание
5
A3453300905
FRONT AXLE HOUSING WITH REAR AXLE TUBES
8
A3523510174
PIN
11
N000007006221
CYLINDRICAL PIN REAR AXLE HOUSING
14
N914126016005
SCREW BEARING COVER TO AXLE HOUSING
17
A3213570082
OIL COLLECTOR
20
A0049814410
NEEDLE BEARING
20
A0059816310
NEEDLE BEARING , UP TO IDENT NO.: 588185,FROM IDENT-NO.: 588186 SEE MICROFICHE 815, MODEL 733.0
23
A3453230040
BRACKET SHOCK ABSORBER
26
A0039972546
SEAL RING
29
A3453510065
FITTING , Replaced By: A3833510065, +001A0009979082
41
A6163510208
COVER REAR AXLE HOUSING
41
A6163500021
COVER REAR AXLE HOUSING
44
A3023510180
GASKET
44
A6503510180
GASKET
50
N914112010016
SCREW COVER TO REAR AXLE HOUSING TO 615 350 04 21,615 351 07 08
56
A0009972632
SCREW PLUG HOUSING,BOTTOM,183596
56
A0009973432
SCREW PLUG HOUSING,BOTTOM,183596
59
A3603300064
OIL SCRAPER
62
A3453310056
COVER
62
A3223510156
COVER , Replaced By: A3453310056
65
A3223310180
GASKET
68
N000933008014
SCREW RIGHT COVERING
71
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
