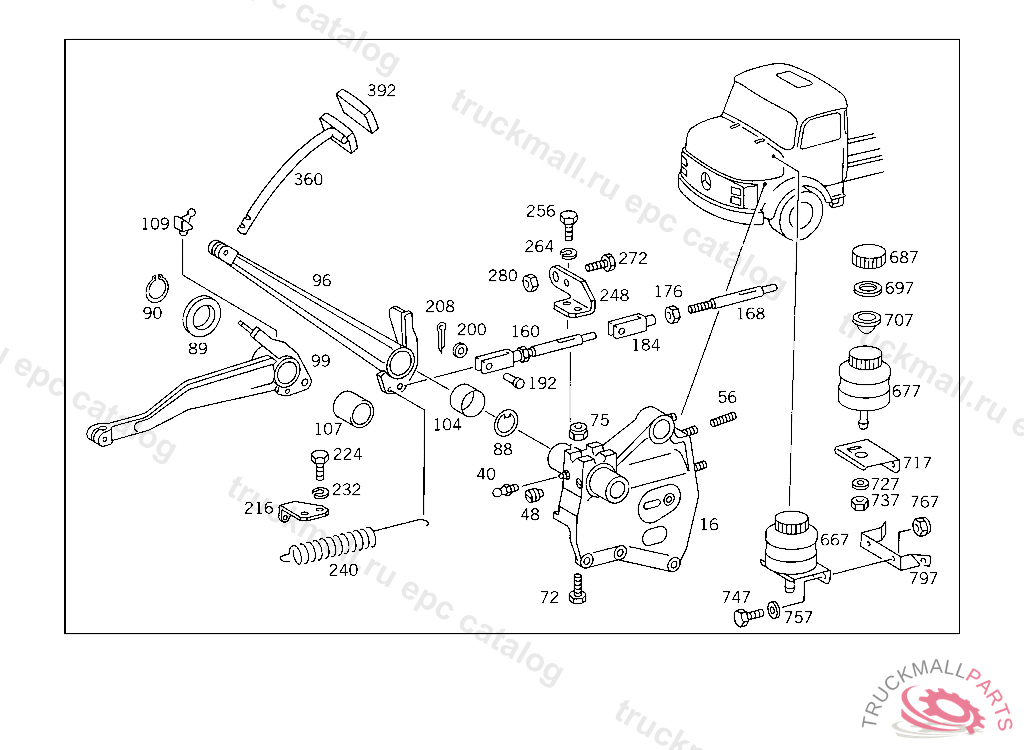

Поз.
Артикул
Описание
16
BEARING BRACKET FRONT
16
BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL
16
BEARING BRACKET , USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
40
GREASE NIPPLE PROTECTIVE TUBE
48
SCREW
56
STUD
72
SCREW CROSS MEMBER TO SIDE MEMBERS
72
SCREW , Replaced By: N304017010002
75
NUT BRACKET TO SIDE MEMBER,XB209706
88
SPACER RING PEDAL TO BEARING BRACKET
88
SPACER RING AS REQUIRED 3.50 MM
88
SPACER RING AS REQUIRED 3.25 MM
89
SPACER WASHER PEDAL TO BEARING BRACKET
90
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
90
LOCK RING BEARING BRACKET,4 972621
96
PEDAL BRAKE PEDAL,GB718835 USED WITH AIR BRAKE,FROM CHASSIS 588186
99
PEDAL BRAKE PEDAL,GB718836
99
PEDAL (BRAKE PEDAL),668123
104
BUSHING
107
BUSHING
109
GREASE NIPPLE
160
ROD , USED WITH AIR BRAKE,FROM CHASSIS 588186 NOT USED
168
ROD PISTON ROD
176
NUT FUEL TANK TO SUPPORT
184
YOKE PISTON ROD
192
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
200
WASHER 10,5 DIN 433. WASHER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
208
COTTER PIN PISTON ROD TO BRAKE PEDAL
216
BRACKET RELEASE SPRING
216
BRACKET RELEASE SPRING
224
SCREW SWITCH TO BRACKET 8X16
232
LOCK WASHER RAIL TO BATTERY SUPPORT
240
SPRING TWO-CIRCUIT BRAKE VALVE
240
SPRING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3609930210
248
STOP BRAKE PEDAL
256
SCREW BRACKET TO SIDE MEMBER
264
LOCK WASHER , Replaced By: N912004010102
272
SCREW , Replaced By: N304017010040
280
NUT L.H. THREAD
360
PEDAL PLATE BRAKE PEDAL,GB718835
360
PEDAL PLATE BRAKE PEDAL,B 714733
392
PAD BRAKE AND CLUTCH LEVERS
392
PAD CLUTCH PEDAL,GB718836
667
RESERVOIR (RESERVOIR)
667
RESERVOIR , Replaced By: A3504317102
677
RESERVOIR WITH LOCKING CAP
687
FILLER CAP
687
FILLER CAPTO A 688 431 00 02
697
SEAL RING
707
STRAINER
717
BRACKET
727
WASHER
737
NUT CONTROL ARM TO REAR AXLE
747
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
757
WASHER PLUG SOCKET TO BRACKET
767
NUT PUMP TO BRACKET
797
BRACKET RESERVOIR TO BRACKET
