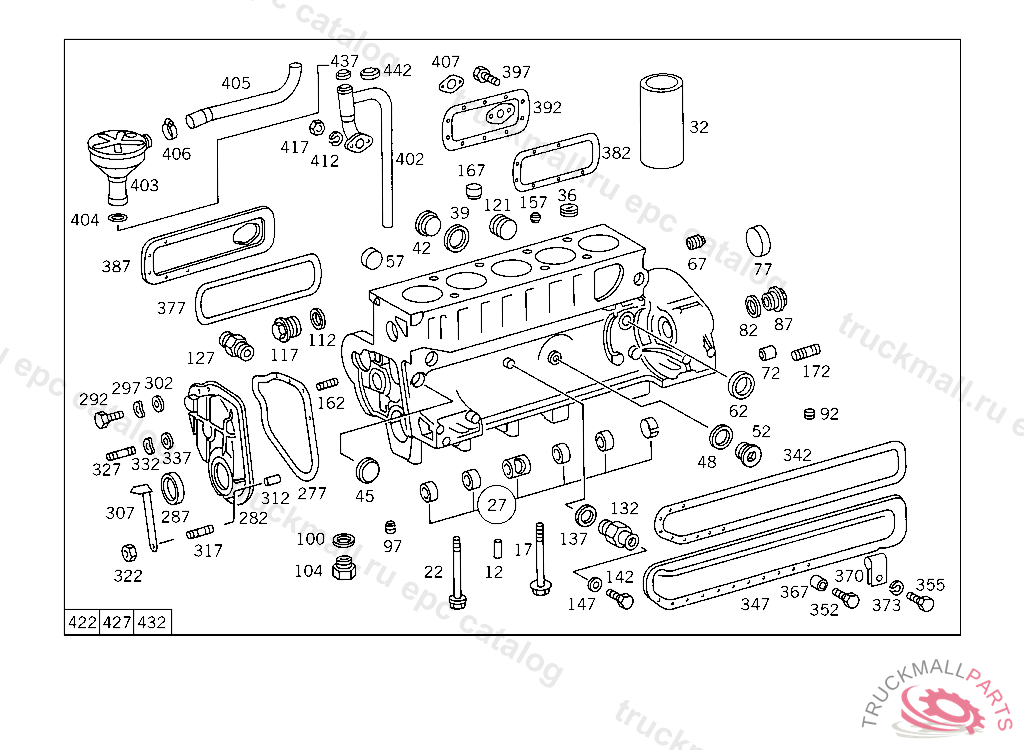

Поз.
Артикул
Описание
12
CYLINDER PIN
12
CYLINDRICAL PIN
17
SCREW CRANKSHAFT BEARING CAP NO.4
22
SCREW
27
REPAIR KIT CAMSHAFT BEARINGS
36
PLUG
39
SEAL RING AT TANK
42
PLUG
42
PLUG ,481364
45
EXPANSION PLUG
48
SEAL RING OIL LINE TO OIL COOLER
52
SCREW PLUG
57
EXPANSION PLUG
62
EXPANSION PLUG CORE HOLE 40.30 MM
67
SCREW PLUG OIL FILLING, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
72
DOWEL PIN
77
EXPANSION PLUG
82
SEAL RING TEMPERATURE GAUGE SENDER UNIT
87
SCREW PLUG OIL PASSAGE,REAR
92
SCREW PLUG , 350.004,013 UP TO CHASSIS 12 357727,FROM CHASSIS SEE SPARE PARTS LIST 718
97
SCREW PLUG STABILIZER
100
SEAL RING VALVE TO VALVE,K 025179
104
FITTING
112
SEAL RINGTO 006 997 00 72
117
SCREW PLUG
121
SCREW
127
SCREW FITTING FUEL LINE TO TANK
132
SCREW FITTING HEATING WATER CONNECTION
137
SEAL RING SWITCH TO CASE COVER
142
SCREW PLUG AIR DEHYDRATOR
142
SCREW PLUG 4/2-WAY VALVE
147
SEAL RING LINE CONNECTION
157
FITTED SLEEVE
162
STUD
167
CLAMPING SLEEVE
172
STUD BELL HOUSING TO CYLINDER CRANKCASE
277
GASKET TIMING CASE COVER
282
COVER
287
SEAL RING CRANKSHAFT SEALING,FRONT
287
SEAL RING
287
SEAL RING
287
SEAL RING , Replaced By: A0119975647
287
SEAL RING , Replaced By: A0119977046
287
SEAL RING , Replaced By: A0119975747
287
SEAL RING , Replaced By: A0049973947
287
SEAL RING , 057837, Replaced By: A0059978247
292
SCREW RIGHT COVERING
297
SPRING WASHER , Replaced By: N000137008212
302
WASHER , Replaced By: N000125008443
307
POINTER TIMING CASE COVER AND TIMING POINTER TO CYLINDER CRANKCASE
312
SPACER TUBE INTERMEDIATE SHAFT & CYLINDER SIDE COVER TO CRANKCASE
317
STUD BOLT TIMING CASE COVER AND TIMING POINTER TO CYLINDER CRANKCASE
322
NUT LEVER TO SHIFTING SHAFT
327
STUD
332
SPRING WASHER , Replaced By: N000137008212
337
WASHER , Replaced By: N000125008443
342
GASKET CYLINDER SIDE COVER
347
CYLINDER SIDE COVER
352
SCREW BRACKET TO SIDE MEMBER
355
SCREW BRACKET TO PLATE
367
SPACER SLEEVE. SPACER TUBE FAN SHROUD TO RADIATOR,4 1619994 428844
367
SPACER TUBE INTERMEDIATE SHAFT & CYLINDER SIDE COVER TO CRANKCASE
370
CLAMP COOLING WATER LINE
373
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
377
GASKET , Replaced By: A3550150122
382
GASKET PUSH ROD CHAMBER,REAR
387
COVER
392
COVER PUSH ROD CHAMBER,REAR
392
COVER , Replaced By: A3450100516
397
SCREW BRAKE SHAFT TO THRUST SHACKLE
402
BREATHER PIPE ,020347
403
OIL SEPARATOR OIL SEPARATOR,WITH VALVE
404
SEAL RING OIL SEPARATOR
405
HOSE INTAKE MANIFOLD,020347
405
HOSE , Replaced By: A3450187382
406
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
407
GASKET. SEAL DE-AERATION PIPE TO ENGINE
412
LOCK WASHER , Replaced By: N912004010102
417
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
422
BRACKET BREATHER PIPE BRACKET
427
SCREW BRACKET TO LEFT SIDE MEMBER
432
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
437
COVER OIL FILLER NECK
437
CAP OIL REFILLING
437
CAP , Replaced By: A0000180702
437
CAP , Replaced By: A3440180168
437
CAP , Replaced By: A0000180702
442
GASKETTO 352 010 01 68
442
GASKET , Replaced By: A1020180080
442
GASKET COVER TO FITTING
999
GASKET , Replaced By: A3559970049
999
GASKET KIT CYLINDER HEAD
999
SHORT-BLOCK
999
GASKET KIT CYLINDER CRANKCASE
999
ENGINE WITH CLUTCH AND BELL HOUSING
999
CYLINDER HEAD GASKET , Replaced By: A3450160420
999
CYLINDER HEAD GASKET , Replaced By: A3450160520
999
CYLINDER HEAD GASKET , Replaced By: A3450160620
999
CYLINDER HEAD GASKET , Replaced By: A3550160420
999
CYLINDER HEAD GASKET CYLINDERS NOS.: 4,5
999
CYLINDER HEAD GASKET , Replaced By: A3450160320
999
CYLINDER HEAD GASKET , Replaced By: A3450160420
999
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
999
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
999
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
999
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
999
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
999
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
999
GASKET KIT OIL PAN
999
SEAL RING CRANKSHAFT SEALING,FRONT
999
GASKET , Replaced By: A3550160021
999
GASKET , Replaced By: A3600770180
999
GASKET , Replaced By: A3551410280
999
SEAL
999
FITTING , Replaced By: N915013008002
999
GASKET
999
CYLINDER HEAD GASKET , Replaced By: A3450160320
999
GASKET , Replaced By: A3551840780
999
GASKET OIL COOLER SUPPORT TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3551880180
999
GASKET COOLING WATER LINE TO THERMOSTAT
999
SCREW
999
SEAL RING
999
GASKET WATER PUMP TO CYLINDER CRANKCASE
999
GASKET KIT , Replaced By: A3450100080
999
GASKET KIT , Replaced By: A3450100180, +001A3470100080
999
SEAL RING ,D 031294
999
SEAL RING BRACKET TO CYLINDER HEAD
999
SEAL RING BOTTOM
