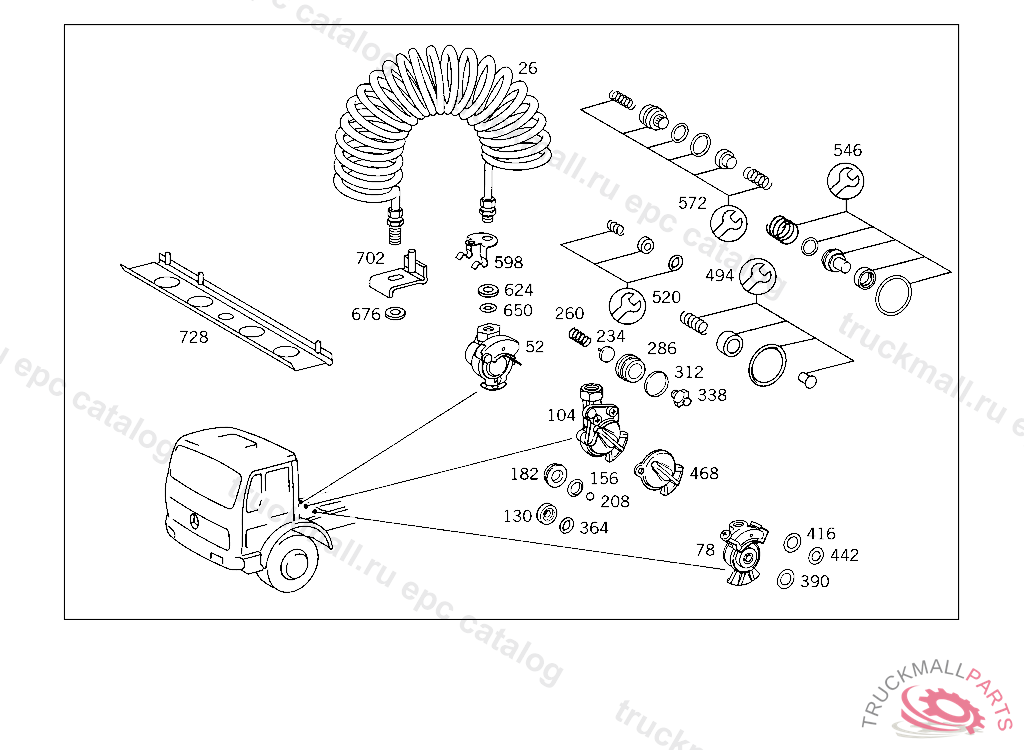

Поз.
Артикул
Описание
26
LINE (COILED TUBE),BRAKES AND SUPPLY
26
LINE (COILED TUBE),BRAKES AND SUPPLY
26
LINE , Replaced By: A0004292901
26
LINE ONE-LINE BRAKE
26
LINE ONE-LINE BRAKE
26
LINE , Replaced By: A0004293001
52
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
52
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
52
BRAKE LINE COUPLING , Replaced By: A0004299630
52
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
52
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
78
BRAKE LINE COUPLING BRAKE,YELLOW "GRAU"
78
BRAKE LINE COUPLING , Replaced By: A0004299730
78
BRAKE LINE COUPLING BRAKE,YELLOW "KNORR"
78
BRAKE LINE COUPLING BRAKE,YELLOW "BOSCH"
78
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
104
BRAKE LINE COUPLING AT REAR CROSS MENBER
104
BRAKE LINE COUPLING , Replaced By: A0004297530
104
BRAKE LINE COUPLING AT REAR CROSS MENBER
104
BRAKE LINE COUPLING AT REAR CROSS MENBER
104
BRAKE LINE COUPLING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004296730
130
VALVE CONEBOSCH
156
SEAL RINGTO 000 429 24 30
182
THRUST RING CHECK VALVE TO AIR RESERVOIR
182
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
208
BALLTO 000 429 24 30
234
VALVE DISCTO 000 429 48 30
260
SPRINGTO 000 429 16 30
286
VALVE PARTTO 000 429 16 30
312
GASKETTO 000 429 16 30
338
VALVE TAPPETTO 000 429 16 30
364
SEAL RINGBOSCH
390
SEAL RING"GRAU"
416
SEAL RING30X2 MM,BOSCH
442
SEAL RING25X2 MM,BOSCH
468
COVER BRAKE,YELLOW "WABCO"
468
COVER SUPPLY, RED "WABCO"
468
COVERWABCO
494
REPAIR KITTO 000 429 24 30
520
REPAIR KITKNORR
546
REPAIR KITWABCO
572
REPAIR KIT BRAKE LINE COUPLING "WABCO"
598
BRACKET BRAKE LINE COUPLING
598
BRACKET BRAKE LINE COUPLING
624
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
624
THRUST RING CHECK VALVE TO AIR RESERVOIR
624
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
650
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
650
O-RING CHECK VALVE TO AIR RESERVOIR
676
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
702
BRACKET AT AIR RESERVOIR
728
BRACKET BRAKE LINE COUPLING TO BRACKET
999
VALVE CONE , Replaced By: A0004290391
999
VALVE TAPPET22X4 MM,BOSCH
999
TEST CONNECTION BULKHEAD FITTING
999
TEST CONNECTION , Replaced By: A0004312931
999
REPAIR KIT BRAKE LINE COUPLING "KNORR"
999
SEAL RING , Replaced By: A0049978240, +001A0004290483
999
SEAL RING22X4 MM,BOSCH
999
SEAL RING33X2.5 MM,BOSCH
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
