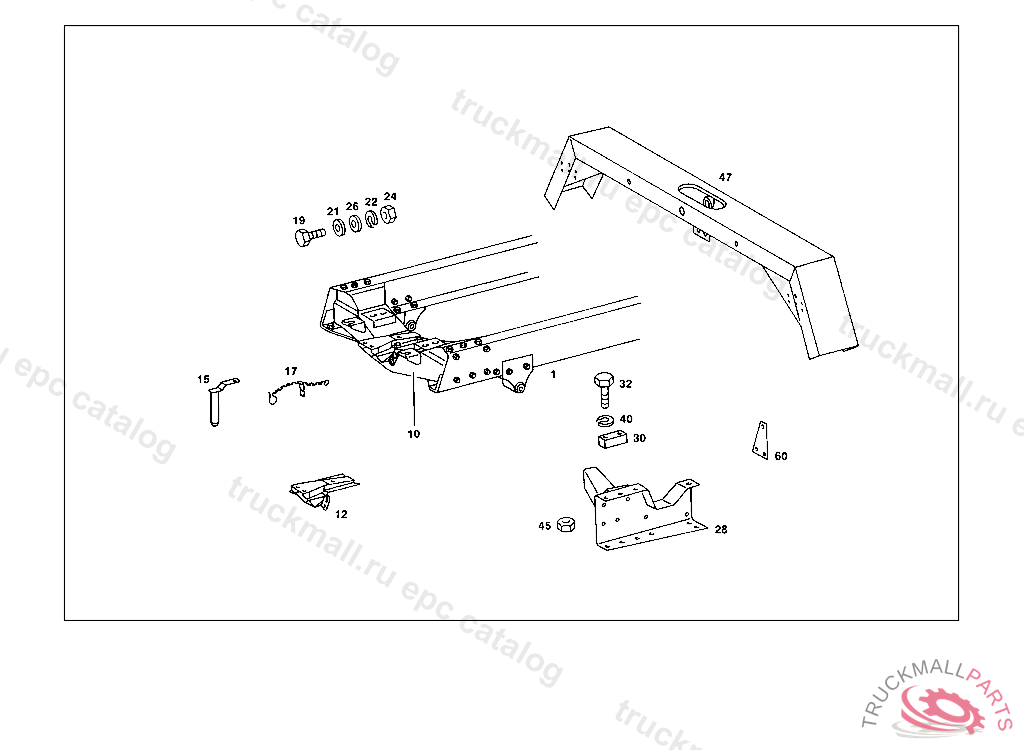

Поз.
Артикул
Описание
1
FRAME , ONLY APPLICABLE TO MODEL 134 AND 334,R.H.D.
1
FRAME , ONLY APPLICABLE TO MODEL 114 AND 314,R.H.D.
1
FRAME , ONLY APPLICABLE TO MODEL 104 AND 304,R.H.D.
1
FRAME , ONLY APPLICABLE TO MODEL 103 AND 303,R.H.D.
1
FRAME , ONLY APPLICABLE TO MODEL 101 AND 301,R.H.D.
1
FRAME , ONLY APPLICABLE TO MODEL 134 AND 334,L.H.D.
1
FRAME , ONLY APPLICABLE TO MODEL 114 AND 314,L.H.D.
1
FRAME , ONLY APPLICABLE TO MODEL 104 AND 304,L.H.D.
1
FRAME , ONLY APPLICABLE TO MODEL 103 AND 303,L.H.D.
1
FRAME , ONLY APPLICABLE TO MODEL 101 AND 301,L.H.D.
10
ENGINE CROSS MEMBER FRONT
10
ENGINE CROSS MEMBER FRONT, IN THE CASE OF VERSIONS /3 AND /4,NO NUMBER HAS BEEN RELEASED FOR FRAME ASSEMBLY
10
ENGINE CROSS MEMBER FRONT
10
ENGINE CROSS MEMBER , Replaced By: A3433100626
12
BRACKET WITH COUPLING MOUTH
15
COUPLING PIN
15
COUPLING PIN , Replaced By: A3433100007
17
SAFETY CHAIN
19
SCREW PIPE CLAMP
19
SCREW , Replaced By: N304017008021
21
WASHER EXHAUST MUFFLER TO STRAP
21
WASHER , Replaced By: N000125008443
22
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
24
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
24
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
24
NUT , Replaced By: N913004008001
26
RUBBER RING
28
STAY
28
STAY RIGHT
28
STAY LEFT
30
SHIM STRUT TO FRAME
32
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
40
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
40
LOCK WASHER BRACKET TO REAR AXLE
45
NUT BRACKET TO SIDE MEMBER
45
NUT , Replaced By: N910113014001
47
BUMPER FRONT
47
BUMPER FRONT
60
SHIM4 MM
999
FASTENER TO SECURE PIN
999
COUPLING PIN
999
SHIM3 MM
999
SHIM *** 2 MM
999
STRUT LEFT
999
STRUT
999
STRUT LEFT, FROM CHASSIS 004583
999
STRUT RIGHT, FROM CHASSIS 004583
999
PLATE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 4 766978, Replaced By: A3465200282
999
PLATE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 4 766978, Replaced By: A3465200382
999
PLATE LEFT
999
PLATE RIGHT
999
SHIM6 MM
999
SHIM5 MM
999
STRUT LEFT, FROM CHASSIS 004583
999
STRUT RIGHT, FROM CHASSIS 004583
999
STRUT RIGHT, FROM CHASSIS 004583
999
STRUT LEFT, FROM CHASSIS 004583
999
STRUT
999
STRUT
999
STRUT COUPLING MOUTH
999
ANGLE BUMPER,LEFT
999
ANGLE BUMPER,RIGHT
999
ANGLE BUMPER,RIGHT
999
ANGLE BUMPER,LEFT
999
WASHER
999
SCREW , Replaced By: N308676014014
999
SCREW , Replaced By: N000961014084
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: N308676012026
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW , Replaced By: N000961014148
999
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X75
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
NUT , Replaced By: N910113012003
