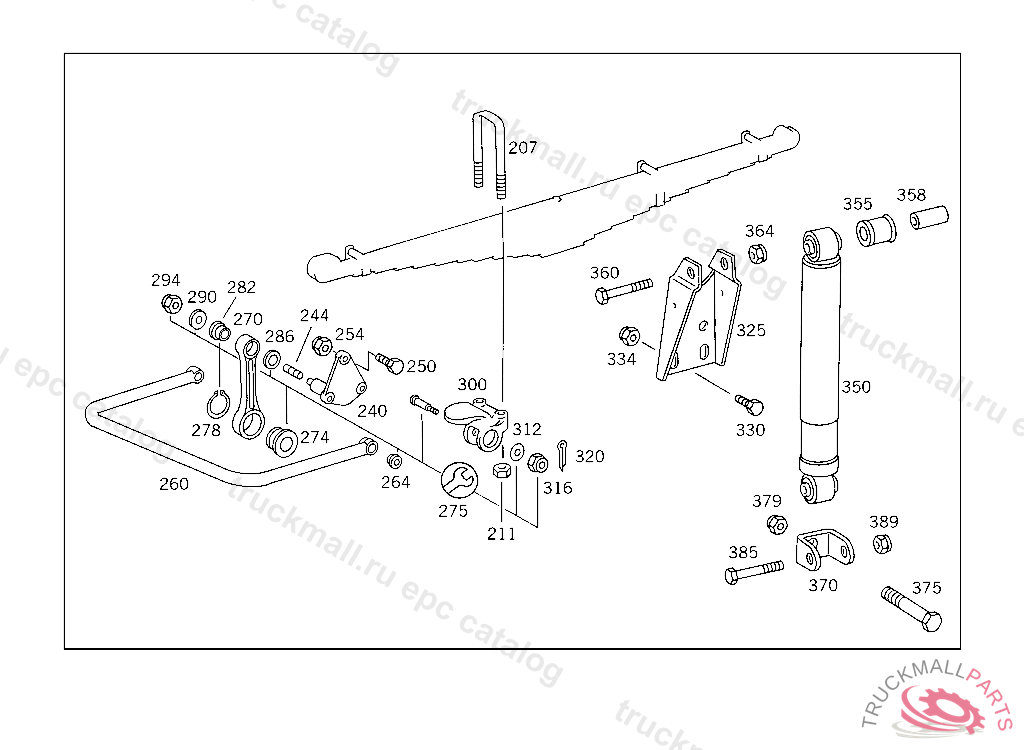

Поз.
Артикул
Описание
207
U-BOLT FRONT SPRINGS TO FRONT AXLE 212 MM,5 0251885 184732
207
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
211
NUT , Replaced By: N308673020002
211
NUT , Replaced By: N308674020000
211
NUT REAR SPRING TO REAR AXLE
240
CONSOLE , Replaced By: A3873230563, +001N000939012102
240
BEARING BRACKET REAR AXLE STABILIZER
244
STUD BOLT
250
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X50
250
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
254
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
254
NUT COMBINATION CYLINDER TO BEARING BRACKET
260
TORSION BAR
264
BUSHING TORSION BAR TO BEARING BRACKET
270
LINK ,4 707617, Replaced By: A3893230116, +001A3873230185
270
SHACKLE. LINK TORSION BAR
274
RUBBER MOUNTING TORSION BAR,4 707617
274
RUBBER MOUNTING SHACKLE TO TORSION BAR
275
REPAIR KIT , Replaced By: A3873200028
275
REPAIR KIT TORSION BAR MOUNTING,4 394060 DELIVER ADDITIONALLY:2X 000125 033001,2X 000471 032000 UP TO IDENT NO. 4 1498724 707617
275
REPAIR KIT , Replaced By: A6203200228
275
REPAIR KIT TORSION BAR MOUNTING
278
LOCK RING SHACKLE TO TORSION BAR
282
BUSHING SHACKLE TO BEARING BRACKET
286
SPACER WASHER SHACKLE TO BEARING BRACKET
290
SPACER WASHER SHACKLE TO BEARING BRACKET
294
NUT SUPPORT TO SIDE MEMBER
300
BEARING LEFT
300
BEARING RIGHT
312
DISC SPRING TORSION BAR TO BEARING BRACKET
316
NUT TORSION BAR TO BEARING BRACKET
320
COTTER PINROCKINGER TYP 260 G140
325
BRACKET SHOCK ABSORBER,TOP
330
SCREW , Replaced By: N308676012026
330
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
334
NUT SUPPORT TO SIDE MEMBER
350
SHOCK ABSORBER FRONT AXLE,4 819961
350
SHOCK ABSORBER , Replaced By: A0043234900
350
SHOCK ABSORBER FRONT AXLE,4 819961
355
RUBBER BUFFER , Replaced By: A0003232885
355
RUBBER BUFFER , Replaced By: A0003232885
355
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
358
SPACER TUBE , Replaced By: A0003232550
358
BUSHING , Replaced By: A0003233150
358
SPACER RINGTO 002 323 86 00,003 323 03 00,
360
SCREW , Replaced By: N000960016250
360
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
364
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
364
NUT COMBINATION CYLINDER TO BEARING BRACKET
370
BRACKET SHOCK ABSORBER TO FRONT AXLE
375
SCREW , Replaced By: N000960020084
375
SCREW BEARING BRACKET TO FRONT AXLE M 20X125,5 530466
379
NUT , Replaced By: N913004020003
379
NUT CROSS MEMBER TO REINFORCEMENT
385
SCREW , Replaced By: N000960016250
385
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
389
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
389
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
SCREW BRACKET TO TRANSMISSION
999
SCREW , Replaced By: N308676012038
999
RUBBER BUFFER SPRING STOP TO FRAME BOTTOM SIDE
999
SHACKLE PIN , Replaced By: A3955860232
999
BRACKET HELPER SPRING
999
SHACKLE PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3895860132
999
PIN , Replaced By: A6203200228
