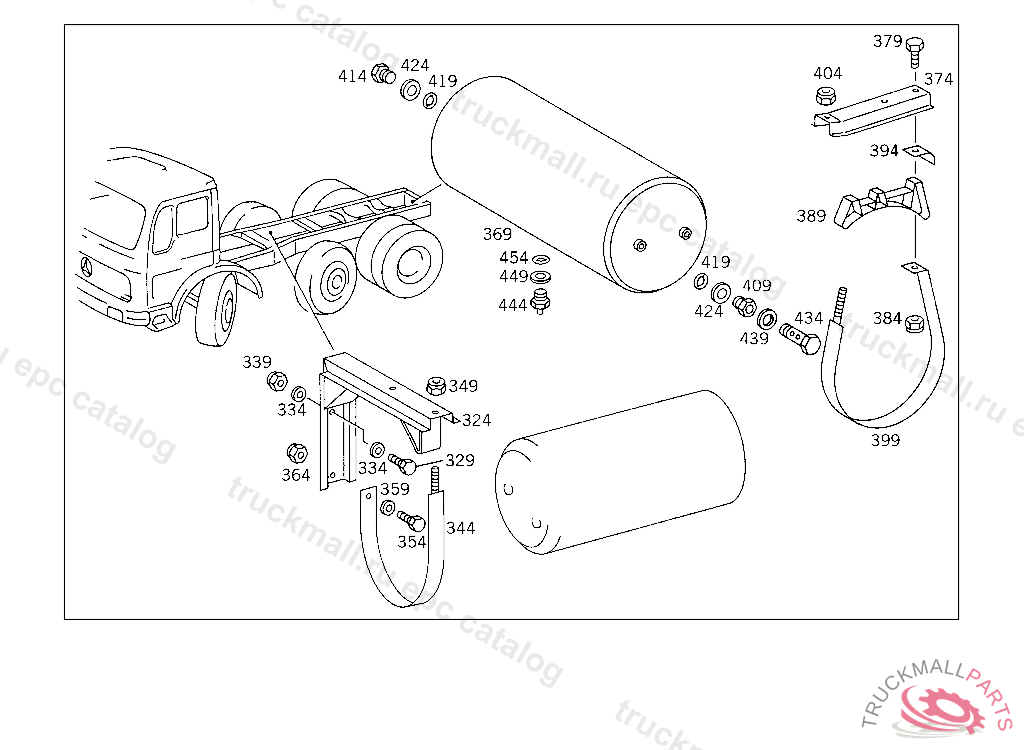

Поз.
Артикул
Описание
324
SUPPORT LEFT AIR RESERVOIR
329
SCREW BRACKET TO CROSS MEMBER M 10X40
329
SCREW , Replaced By: N308676010023
329
SCREW , Replaced By: N000961010031
334
WASHER RADIATOR TO RUBBER MOUNTING
339
HEXAGON NUT
339
NUT , Replaced By: N910113010002
344
STRAP AIR RESERVOIR TO SUPPORT
349
NUT , Replaced By: N910113010000
349
NUT STRAP TO BRACKET
354
SCREW , Replaced By: N304017010002
354
SCREW BRACKET TO SIDE MEMBER
359
WASHER RADIATOR TO RUBBER MOUNTING
364
NUT , Replaced By: N910113010000
364
NUT STRAP TO BRACKET
369
RESERVOIR40L,276 MM,8.5 BAR
369
RESERVOIR ,5 934167, Replaced By: A0034322501, +001A6554320073
374
SUPPORT AIR RESERVOIR,5 270877
379
SCREW BRACKET TO SIDE MEMBER
379
SCREW REAR EXHAUST PIPE TO MUFFLER
379
SCREW , Replaced By: N304017010002
384
NUT , Replaced By: N910113010000
384
NUT STRAP TO BRACKET
389
BASE AIR RESERVOIR,5 317650
394
PLATE ,5 317650
399
STRAP SERVICE BRAKE AIR RESERVOIR
404
NUT , Replaced By: N910113010000
404
NUT STRAP TO BRACKET
409
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
414
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
414
SCREW PLUG , Replaced By: N000908022011
419
O-RING CHECK VALVE TO AIR RESERVOIR
424
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
424
THRUST RING CHECK VALVE TO AIR RESERVOIR
434
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
434
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
439
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
444
VALVE. DRAIN VALVE DRAIN
444
VALVE DRAIN, Replaced By: A0004322107
444
VALVE DRAIN, Replaced By: A0004322407
449
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
449
THRUST RING CHECK VALVE TO AIR RESERVOIR
454
O-RING CHECK VALVE TO AIR RESERVOIR
999
BRACKET , Replaced By: A6204910141
999
STRAP , Replaced By: A3464300540
999
BRACKET , Replaced By: A4255530840
999
BRACKET , Replaced By: A6454310740
999
STRAP SERVICE BRAKE AIR RESERVOIR, Replaced By: A6204300040
999
SPACER TUBE , Replaced By: A3094310249
999
VALVE , Replaced By: A0044293244
999
VALVE , Replaced By: A0044293144
999
SEAL RING , Replaced By: A0149972247
999
FITTING , Replaced By: A0009977172
999
VALVE , Replaced By: A0044293144
999
WASHER ADJUSTER
