Поз.
Артикул
Описание

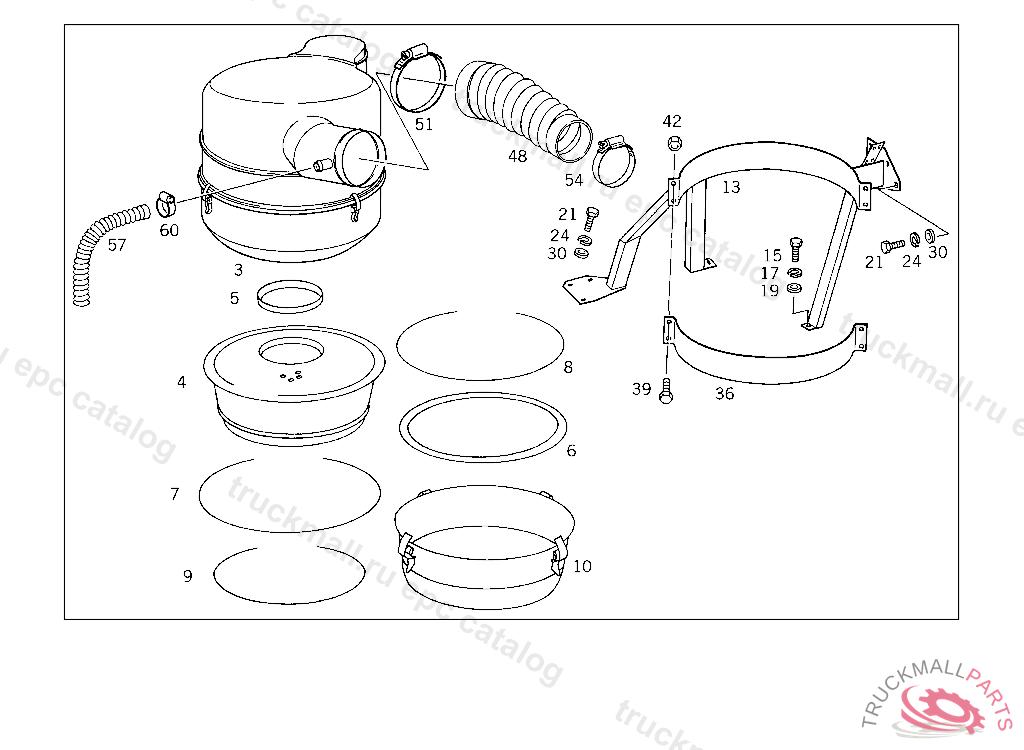

3
AIR CLEANER ,4 647937, Replaced By: A0120940602, +001N900271132004
3
AIR CLEANER ,4 832349, Replaced By: A0120940902, +001A3465280182
3
AIR CLEANER OIL BATH,4 832350
4
FILTER ELEMENT
4
FILTER ELEMENT
5
GASKET INSIDE
5
GASKET INSIDE
6
GASKET OUTSIDE
6
GASKET OUTSIDE
7
SNAP RING DIA., 150 MM
8
SNAP RING DIA., 128 MM
9
SNAP RING
10
FILTER BOWL
13
STRAP OIL BATH AIR CLEANER, NOT USED
13
STRAP OIL BATH AIR CLEANER
15
SCREW BRACKET TO SIDE MEMBER
17
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
19
WASHER , Replaced By: N000125010532
19
WASHER RADIATOR TO RUBBER MOUNTING
21
SCREW , Replaced By: N304017008021
21
SCREW PIPE CLAMP
24
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
30
WASHER , Replaced By: N000125008443
30
WASHER EXHAUST MUFFLER TO STRAP
36
STRAP OIL BATH AIR CLEANER TO MOUNTING STRAP
39
SCREW , Replaced By: N304017008021
39
SCREW PIPE CLAMP
42
NUT , Replaced By: N913004008001
42
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
42
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
48
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3465280282
48
HOSE FROM AIR CLEANER TO TURBOCHARGER
51
CLAMP , Replaced By: N000000000678
51
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
51
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
54
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
57
HOSE , Replaced By: A4969970082
57
HOSE , ORDER BY THE METER
60
CLAMP , Replaced By: N000000000667
60
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
HOSE INTAKE PIPE TO AIR CLEANER
999
SCREW LICENSE PLATE TO BRACKET
999
WASHER STRUT TO CROSS MEMBER
999
WASHER , Replaced By: N007349010007
999
NUT BALL PIVOT TO LEVER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017006020
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW SHIFT CASE TO SLOTTED GATE
999
BOOT INTAKE PIPE TO AIR CLEANER
999
SHIM
999
BRACKET ,5 094417
999
HOSE AIR INTAKE PIPE TO AIR CLEANER,4 832350
999
CLAMP INTAKE PIPE TO BRACKET,5 094417
999
BRACKET AIR CLEANER,5 094417
999
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO CYCLONE AIR TRAP,5 094417
999
STAY STRAP
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE FROM AIR DUCT TO ENGINE TO 005 094 07 02
999
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO CYCLONE AIR TRAP
999
BUSHING INTAKE MANIFOLD
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
AIR CLEANER CYCLONE
999
AIR CLEANER OIL BATH
999
AIR CLEANER , Replaced By: A0050949702, +001A3365200701, +001A3615280091
999
LOOM TIE LINE MOUNTING
999
FASTENER
999
VALVE CYCLONE
