Поз.
Артикул
Описание

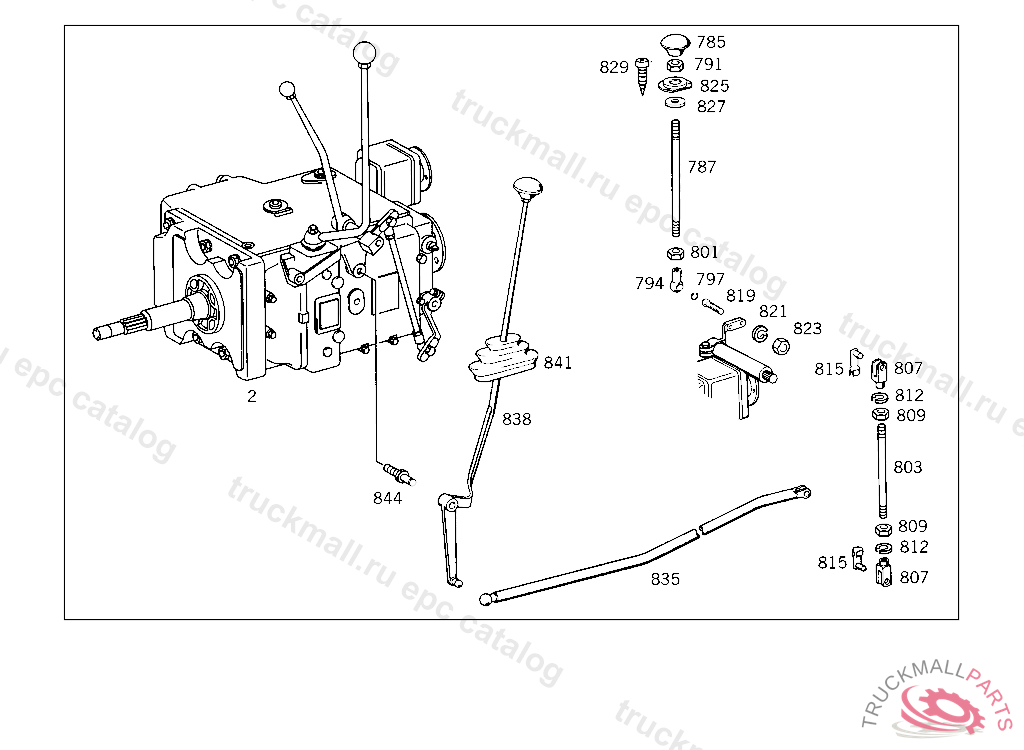

2
TRANSMISSIONS5-35/2
2
TRANSMISSIONS5-35/2
2
TRANSMISSION , Replaced By: A3582602400, +001A0002620545
2
TRANSMISSION , Replaced By: A3582602400, +001A0002620545, +001A0002640212
2
TRANSMISSIONS5-35/2
2
TRANSMISSIONS5-35/2
2
TRANSMISSION , Replaced By: A3522606800, +001A0002620445, +001A0002640212
2
TRANSMISSION , Replaced By: A3522606800, +001A0002620445
2
TRANSMISSION , Replaced By: A3582602600, +001A0002620545, +001A0002640212
2
TRANSMISSIONS 5 - 35/2
2
TRANSMISSIONS 5 - 35/2
2
TRANSMISSION , Replaced By: A3522606800, +001A0002640212
2
TRANSMISSION , Replaced By: A3582602400, +001A0002640212
2
TRANSMISSION , Replaced By: A3582602600, +001A0002640212
2
TRANSMISSIONS5-35/2+N352/10
2
TRANSMISSIONS5-35/2+N352/10
2
TRANSMISSION , Replaced By: A3582602600, +001A0002620545
785
HANDLE (GEARSHIFT LEVER KNOB)
787
SHIFTING ROD P.T.O.
791
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
794
BALL SOCKET ROD TO BALL PIVOT
797
SNAP RING
801
NUT
803
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
807
YOKE OPERATING ROD
809
NUT
812
SPRING WASHER SHIFTING CYLINDER TO YOKE
815
PIN PULL ROD TO TRANSMISSION SHIFT LEFER
819
BALL PIVOT
819
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
821
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
823
NUT
825
LOCKING CAP SHIFT LEVER BEARING COVERING
827
WASHER SHIFT LEVER TO CAB FLOOR
829
SHEET METAL SCREW , Replaced By: N000000002062
829
SHEET METAL SCREW CAB FLOOR
829
SCREW
835
SHIFTING ROD
835
SHIFTING ROD
838
SHIFT LEVER
841
BOOT , Replaced By: A3222640096
841
BOOT SHIFT LEVER BEARING COVERING
844
PIN P.T.O. SHIFT LEVER
999
PINM 8 X 16
999
LOCK WASHER OIL PUMP TO TRANSMISSION CASE
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW SUPPORT TO FENDER
999
SECURING CLIP. CIRCLIP
999
GREASE NIPPLE
999
GREASE NIPPLE , Replaced By: N071412008102
999
SNAP RING DRIVE SHAFT
999
STUD BOLT P.T.O. TO TRANSMISSION M 12X100
999
SCREW BRACKET TO FRAME
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008018
999
GROOVED BALL BEARING OUTPUT SHAFT
999
RETAINING RING. LOCK RING BEARING TO DRIVE SHAFT
999
SPRING WASHER CAB FLOOR
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
NUT COVER TO FLANGE
999
P.T.O.N 352/2B
999
NUT
999
LOCK WASHER , Replaced By: N912006012000
999
SLIDE P.T.O. SHIFT LEVER
999
GASKET , Replaced By: A0002642980
999
SHIM , Replaced By: A0002720776
999
SHIM AS REQUIRED 0.80 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
999
SHIM AS REQUIRED 1.00 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
999
SHIM AS REQUIRED 1.20 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
999
SHIM FLANGE TO TRANSMISSION CASE COVER
999
INTERMEDIATE FLANGE OUTPUT FLANGE
999
SHIFT LEVER
999
SHIFT LEVER
999
P.T.O.N 70-1 B
999
P.T.O. , Replaced By: A3432600005, +001A0002630823, +001A3432640024, +001A0002643328, +001A0002640245, +001A3432640047, +001A0019819010, +001A0119979145, +001A0089973747, +001N000137008204, +001N000137012203, +001N000933008150, +001N000933012077, +001N000934008010, +004N000939012016
999
P.T.O.N352/2B
999
P.T.O. , Replaced By: A3522601205
999
SHIFTING ROD
999
SEAL RING FLANGE TO TRANSMISSION CASE COVER
999
SEAL RING REAR P.T.O.
999
SEAL RING , Replaced By: A0089973747
999
NUT SPEEDOMETER
999
SPACER WASHER AS REQUIRED 0.40 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
999
SEAL RING P.T.O. SHIFT LEVER
999
SEALING CORD , Replaced By: A0119979145
999
YOKE AT SHIFTING ROD TO A 352 260 12 05
999
WASHER SPEEDOMETER DRIVE 0.60 MM
999
SHIFTING ROD P.T.O. CONTROL TO A 352 260 12 05
999
PIN , Replaced By: N918001008002
999
SHIFT LEVER LATERAL P.T.O
999
SHAFT (SHIFTING SHAFT)
999
GASKET CASE,REAR
999
GASKET , Replaced By: A3432640479
999
GASKET
999
COUPLING FLANGE90 MM
999
BEARING CAP
999
DRIVE SHAFT
999
BUSHING SHIFT CASE,SIDE
999
BEARING CAP P.T.O. CONTROL,BOTTOM
999
P.T.O. , CHECK DRIVE GEAR AND INPUT SHAFT FOR NUMBER OF TEETH, CHANGE IF NECESSARY
