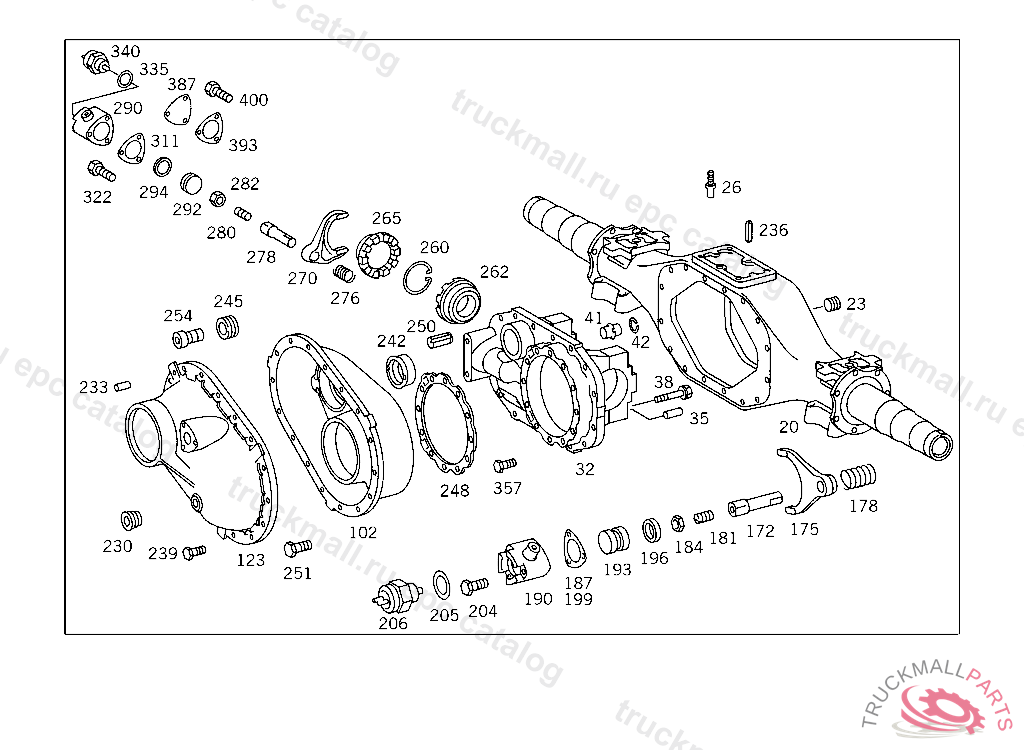

Поз.
Артикул
Описание
20
AXLE CASING STEEL VERSION
20
AXLE CASING CAST VERSION
20
AXLE HOUSING , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE W 897400, Replaced By: A3893503420, +002A6524230006, +010A3469901104, +004A3469901304
23
SCREW PLUG BELL HOUSING
26
FITTING BLEEDING
26
VALVE
32
AXLE HOUSING DIFFERENTIAL GEAR BEARING, MAN AXLE
35
CYLINDRICAL PIN BEARING COVER TO AXLE HOUSING
38
SCREW BEARING COVER TO AXLE HOUSING
41
PIN AXLE HOUSING
42
SNAP RING
102
HOUSING (PINION HOUSING)
123
COVER THROUGH DRIVE
172
SHAFT SHIFTING ROD,232175
175
SHIFTING FORK LONGITUDINAL DIFFERENTIAL LOCK, MAN AXLE
178
SPRING SHIFTING FORK
181
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
184
NUT
187
GASKET DIFFERENTIAL LOCK TO 355 353 02 80
190
CYLINDER , Replaced By: A3463530655, +003N000931008278, +001N007603018100
190
CYLINDER TRANSVERSE DIFFERENTIAL LOCK
193
PISTON TRANSVERSE DIFFERENTIAL LOCK
196
SEAL RING SHIFTING CYLINDER
199
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
204
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
205
SEAL RING VALVE TO VALVE,K 025179
206
SWITCH
206
SWITCH , Replaced By: A0015455709
206
SWITCH , Replaced By: A0015458214
230
SCREW PLUG BELL HOUSING
233
CYLINDRICAL PIN
236
CLAMPING SLEEVE ECCENTRIC PIN
239
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
242
SEAL HOLDER PINION HOUSING TO AXLE HOUSING
245
THREADED INSERT
248
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
248
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
248
SPACER WASHER PINION HOUSING,AS REQUIRED 1.50 MM
248
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
248
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
250
PIN PINION HOUSING TO AXLE HOUSING
251
SCREW PINION HOUSING TO REAR AXLE HOUSING
254
SCREW IMPELLER TO COVER
357
SCREW BRACKET TO BRACKET
357
SCREW DIFFERENTIAL GEAR TO REAR AXLE CASING M 12X40
387
COVER
393
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
400
SCREW , Replaced By: N304017008021
999
PLANETARY GEARING RATIO: 1:3.472,W 972500, V 000001V 207323
999
PLANETARY GEARING
999
PLANETARY GEARING RATIO: 1:3.429,V 207324, Replaced By: A9423501809
999
PLANETARY GEARING RATIO: 1:3.429,V 496301
999
COVER , Replaced By: A3463530655
999
WHEEL HUB DRIVE , MAN AXLE
999
WHEEL HUB DRIVE , MAN AXLE
999
SIDE GEAR , MAN AXLE
999
PLANETARY GEARING
999
DIFFERENTIAL PINION , MAN AXLE
999
SIDE GEAR , MAN AXLE
999
DIFFERENTIAL GEAR , Replaced By: A3873505203
999
SPACER RING DIFFERENTIAL PINION,BOTTOM
999
SPACER RING , Replaced By: A3953530551
999
SPACER RING DIFFERENTIAL SPIDER
999
NEEDLE SET156 PIECES
999
REPAIR KIT PLANETARY GEAR TRAIN WITH SHEET METAL COVER
999
REPAIR KIT , Replaced By: A9403500435, +001A3553560173
999
SPACER RING DIFFERENTIAL PINION
999
SPACER RING THROUGH-DRIVE DIFFERENTIAL GEAR,V 151343
999
REPAIR KIT PLANETARY GEAR TRAIN WITH SHEET METAL COVER ABS
999
REPAIR KIT , Replaced By: A9403500135, +001A3553560173
999
REPAIR KIT PLANETARY GEAR TRAIN WITH CAST COVER ABS, NORMAL COURSE OF REPAIR, Replaced By: A9403501235
999
REPAIR KIT WHEEL HUB, Replaced By: A9403501535
