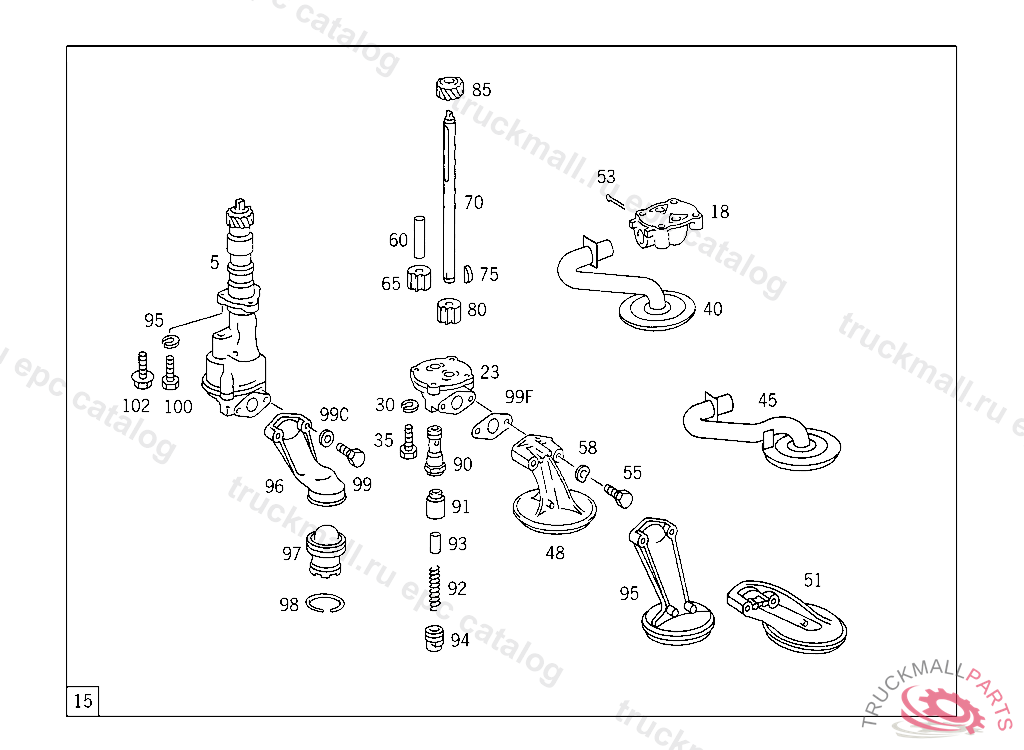

Поз.
Артикул
Описание
5
OIL PUMP
5
OIL PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 110592, Replaced By: A3641800101
15
HOUSING
18
COVER ,000032
23
COVER
23
COVER
23
COVER
30
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
SCREW , Replaced By: A0069909301
35
SCREW LEVER TO BRAKE PEDAL M 8X45, ON VEHICLES LESS DB CAB
35
SCREW BRACKET TO APPARATUS SUPPORT
35
SCREW BRACKET TO ENGINE
40
SUCTION PIPE ,000032
48
SUCTION BASKET
53
COTTER PIN , 067373
55
SCREW BRACKET TO ENGINE
58
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
58
SPRING WASHER , Replaced By: N000137008212
60
OIL PUMP SHAFT
65
GEAR
65
GEAR ,033299-069907
70
DRIVE SHAFT , 03081673.5 KW (100 PS) 02551080.9 KW (110 PS) 06737492.6 KW (126 PS) 003613 110.3 KW (150 PS)
70
DRIVE SHAFT
70
DRIVE SHAFTTO 352 180 79 01, 314 484415 352 827575 353 827575 364 005097 366 028373
75
WOODRUFF KEY
80
GEAR
80
GEAR ,000033000140
85
HELICAL GEAR
85
HELICAL GEAR OIL PUMP DRIVE, 314 484415 352 827575 353 827575 364 005097 366 028373
85
HELICAL GEAR , Replaced By: A3661810108
90
PRESSURE RELIEF VALVE
91
HOUSING OIL PRESSURE RELIEF VALEE
92
SPRING
93
PISTON
93
PISTON , Replaced By: A3661810042
94
SCREW PLUG OIL PRESSURE RELIEF VALEE
95
SUCTION BASKET , Replaced By: A3521861301, +001A1101800355, +001N007993070100
95
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
99
SCREW BRACKET TO SIDE MEMBER
100
SCREW BRACKET TO EXHAUST PIPE BRACKET
100
SCREW , Replaced By: N304017008024
102
SCREW ,12/96
999
COVER , Replaced By: A3521841708
999
FILTER ELEMENT , Replaced By: A0001848625
999
SEAL CONE
999
OIL COOLER , Replaced By: A3521800865, +001A3621801065, +010N000933008215
999
HELICAL GEAR ,000032, Replaced By: A3521811008, +001A3521810405, +001A3141810206
999
OIL PUMP SHAFT , Replaced By: A3521810010
999
DRIVE SHAFT ,000032, Replaced By: A3521810205, +001A3141810206, +001A3521811108
999
GASKET SUCTION PIPE TO OIL PUMP HOUSING
999
OIL PUMP , Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
HOUSING , Replaced By: A3521812201
999
SCREW
999
VALVE , Replaced By: A3521800015
999
GASKET , Replaced By: A3521880780
999
OIL PUMP ,000032, Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
HOUSING ,000032, Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
GEAR ,000032, Replaced By: A3141810206, +001A3521810405, +001A3521811108
999
GEAR , Replaced By: A3141810306
999
VALVE , Replaced By: A3521840032
999
SCREW PLUG
999
ELECTRIC CABLE , Replaced By: A3405400660
999
ELECTRIC CABLE , DELIVER ADDITIONALLY: 2 X 074297 012102, 2 X 074297 006202, Replaced By: A3405420544, +002N003861006006, +002N003870006105
999
ELECTRIC CABLE , Replaced By: A3405400760
999
ELECTRIC CABLE , DELIVER ADDITIONALLY: 2 X 074297 012102, 2 X 074297 006202, Replaced By: A3405420544, +002N003861006006, +002N003870006105
999
ELECTRIC CABLE , DELIVER ADDITIONALLY: 2 X 074297 012102, 2 X 074297 006202, Replaced By: A3405420544, +002N003861006006, +002N003870006105
999
ELECTRIC CABLE , Replaced By: A0004280701
999
OIL FILTER , Replaced By: A3441800010
999
COVER , Replaced By: A0001801038
999
SCREW , Replaced By: N914126010004
999
SCREW PLUG , Replaced By: A3469970130
999
FITTING
999
ELECTRIC CABLE , Replaced By: A3125401460
999
ELECTRIC CABLE , Replaced By: A3125401460
999
SPRING RETAINER , Replaced By: A0001800288
999
FILTER BOWL
999
PRESSURE RELIEF VALVE , Replaced By: A3521800315
999
OIL FILTER , FROM ENGINE 054057-054976 SEE SERVICE INFORMATION THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3271800110
999
OIL LINE , 002532, Replaced By: A3521800322, +001A3529970972
999
OIL LINE , 002533 005127, Replaced By: A3521800322, +001A3529970972
999
COVER , FROM ENGINE 054057-054976 SEE SERVICE INFORMATION, Replaced By: A3271800138
999
OIL LINE
999
OIL COOLER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 730880, Replaced By: A3621800765, +001A3661880180
999
OIL LINE , Replaced By: A0099979382, +002A0009905188
999
OIL PUMP
999
OIL PUMP , Replaced By: A3521807001
999
DRIVE SHAFT , Replaced By: A3441810205
999
DRIVE SHAFT
999
HOUSING
999
HELICAL GEAR , Replaced By: A3521811108
999
VALVE , Replaced By: A3551840032
999
FITTING OIL PASSAGE PLUG
999
OIL COOLER WITH COVER
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW LEFT BEARING BRACKET TO CASE
999
GLAND , Replaced By: A0019901667
999
BALL ,425116
999
FITTING
