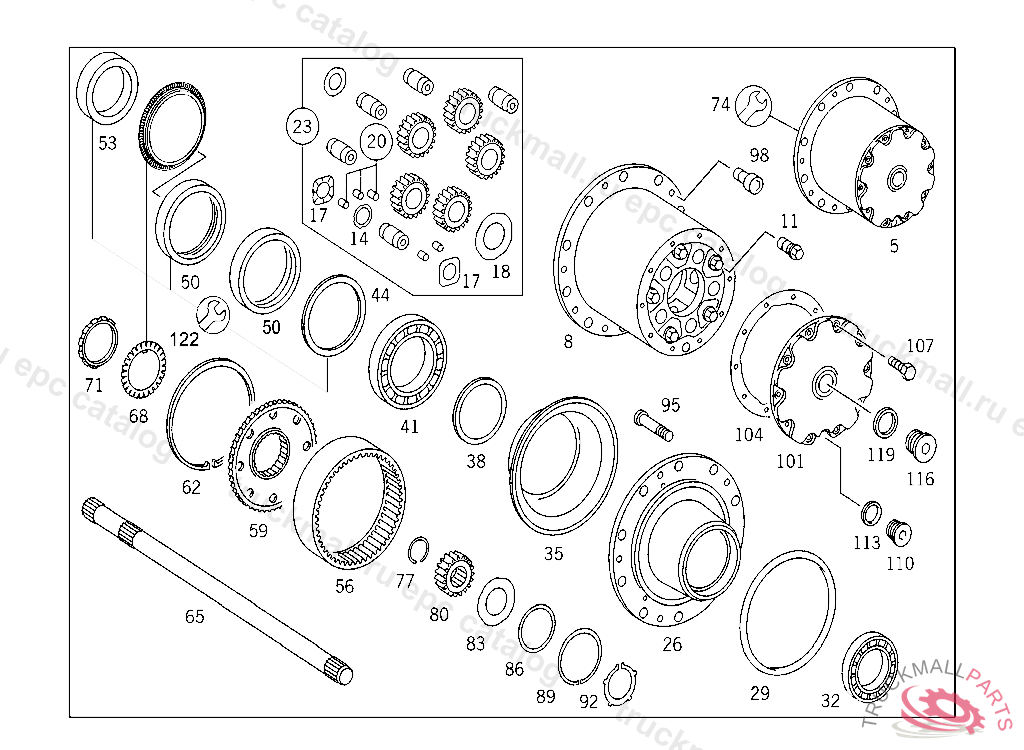

Поз.
Артикул
Описание
5
PLANETARY GEARING RATIO: 1:4.000,V 496880
5
PLANETARY GEAR DRIVE RATIO: 1:4.000,V 207287
5
PLANETARY GEARING RATIO: 1:4.000,V 207287, Replaced By: A9423501609
5
PLANETARY GEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE V 477618, Replaced By: A3463504209
8
BELL HUB WITH PLANETARY CARRIER,393260
8
BELL HUB , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE V 477618, Replaced By: A3463507533
8
BELL HUB WITH PLANETARY CARRIER,V 496880
8
BELL HUB
8
BELL HUB WITH PLANETARY CARRIER
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
14
THRUST WASHER PLANET GEAR
17
THRUST WASHER PLANET GEAR
18
THRUST WASHER PLANET GEAR
20
NEEDLE BEARING NEEDLES, SET50 PIECES
20
NEEDLE PLANET GEAR
23
PLANET GEAR PARTS KIT,393260
23
PLANET GEAR PARTS KIT
26
WHEEL HUB
26
WHEEL HUB
29
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
29
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
29
SEAL RING , Replaced By: A0169974048
32
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
32
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
32
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
35
OIL COLLECTOR WHEEL HUB, OUTSIDE TO 346 356 28 01/29 01
35
OIL COLLECTOR
41
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
41
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
41
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
41
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
44
COVER PLATE WHEEL HUB, INSIDE
44
COVER PLATE WHEEL BEARING
50
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 49 47
53
THRUST RING WHEEL BEARING
56
OUTSIDE GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 75,V 207287
56
OUTSIDE GEAR NUMBER OF TEETH: 85
56
OUTSIDE GEAR ,V 207287V 496879 FROM REAR AXLE V 496880, SEE STANDARD MICROFICHE
59
SUPPORT OUTSIDE GEAR
62
WIRE RING OUTSIDE GEAR TO SUPPORT
65
REAR AXLE SHAFT , Replaced By: A6593571101, +001N009045042001
65
REAR AXLE SHAFT WITH INTERLOCK SERRATIONS
68
LOCK PLATE ADJUSTER TO BRAKE CAMSHAFT
71
GROOVED NUT , Replaced By: A9423560126
71
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
71
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
77
SNAP RING SUN GEAR TO REAR AXLE SHAFT
80
SUN GEAR NUMBER OF TEETH: 25,V 207287V 252111
80
SUN GEAR NUMBER OF TEETH: 25,V 207287V 496879 FROM REAR AXLE V 496880, SEE STANDARD MICROFICHE
83
THRUST WASHER PLANET GEAR
86
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
86
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
86
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
86
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
86
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
89
LOCK RING THRUST WASHER TO BELL HUB
92
LOCK RING DRIVE SHAFT, Replaced By: N000471040002
95
WHEEL MOUNTING BOLT DISC WHEEL ON WHEEL HUB
95
WHEEL MOUNTING BOLT LIGHT-ALLOY-SHEET DISC WHEEL, Replaced By: A0004013771
98
CAPSCREW W HEXAL. DRIVE BRACKET TO PUMP M12X25
101
HUB CAP BELL HUB
104
GASKET COVER TO HUB
107
SCREW COVER TO BELL HUB
110
SCREW PLUG OIL DRAIN
113
SEALING RING. SEAL RING OIL DRAIN
116
SCREW PLUG OIL FILLING
119
SEALING RING OIL FILLING
