Поз.
Артикул
Описание
5

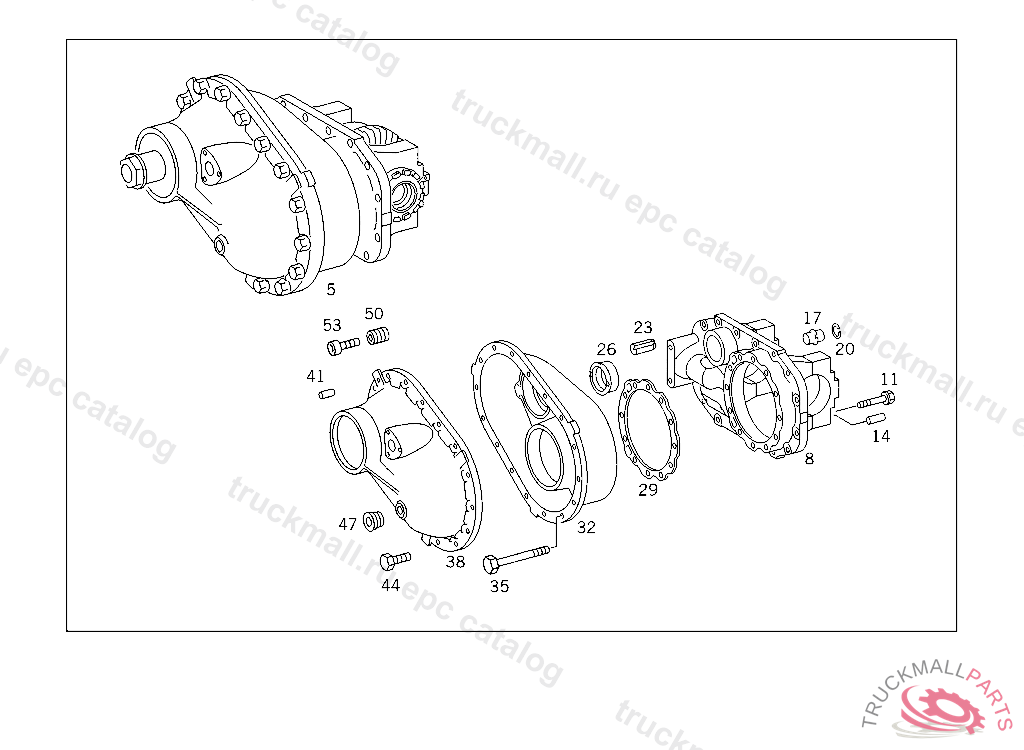

DIFFERENTIAL GEAR WITH THROUGH DRIVE AND FLANGE,RATIO: 27:18
8
AXLE HOUSING DIFFERENTIAL GEAR BEARING, MAN AXLE
11
SCREW DIFFERENTIAL GEAR BEARING
14
CYLINDRICAL PIN
14
CYLINDRICAL PIN , Replaced By: N000007008101
17
PIN AXLE HOUSING
20
SNAP RING
23
PIN PINION HOUSING TO AXLE HOUSING
26
SEAL HOLDER PINION HOUSING TO AXLE HOUSING
29
SPACER WASHER PINION HOUSING,AS REQUIRED 0.20 MM
29
SPACER WASHER PINION HOUSING,AS REQUIRED 1.50 MM
29
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
29
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
29
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
29
SPACER WASHER PINION HOUSING,AS REQUIRED 0.35 MM, NOT USED
29
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
32
HOUSING (PINION HOUSING)
35
SCREW PINION HOUSING TO AXLE HOUSING
38
COVER THROUGH DRIVE
41
CYLINDRICAL PIN FOR REPAIR PURPOSES ONLY, 101-103,110-116,119,121,122 UP TO IDENT NO. 4 477510 FROM IDENT NO. SEE MICROFICHE 750.5 130 UP TO IDENT NO. 4 758189 FROM IDENT NO. SEE MICROFICHE 750.2
41
CYLINDRICAL PIN , Replaced By: N000007012218
44
SCREW RADIATOR PROTECTIVE GRILLE TO ANGLE
47
SCREW PLUG BELL HOUSING
50
THREADED INSERT
53
SCREW , Replaced By: N000912010223
53
SCREW IMPELLER TO COVER
