Главная
›
Mercedes
›
AXLE
›
HL 7/07 D-11,5/3,715
›
740.320
›

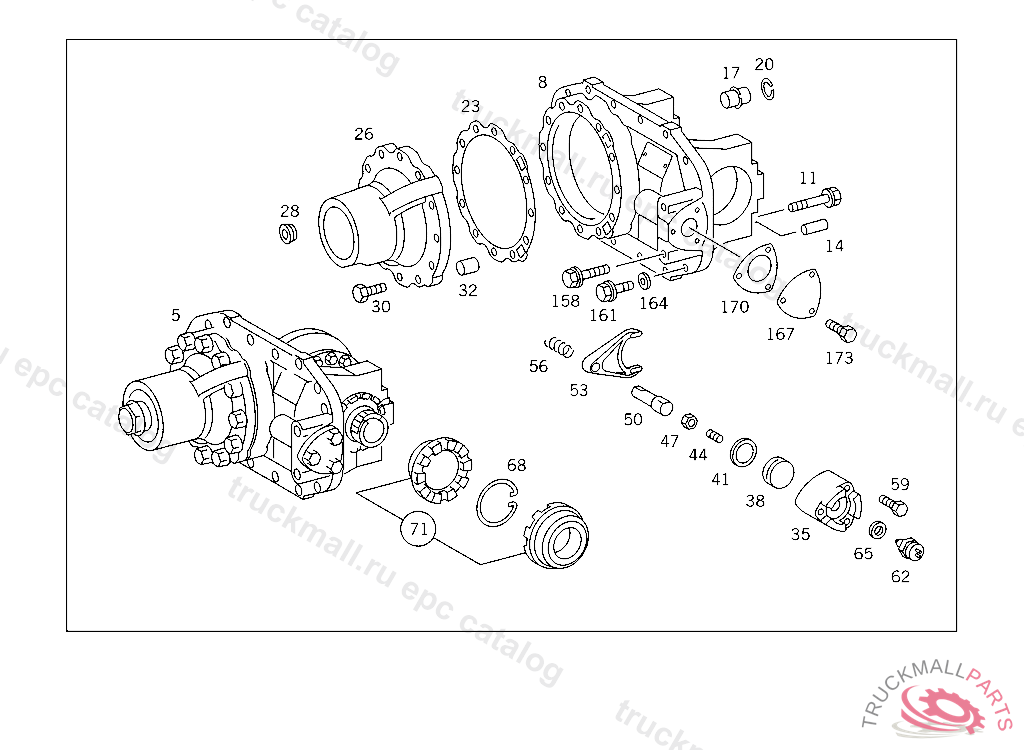

35 REAR AXLE
›
350 DIFFERENTIAL GEAR,DIFFERENTIAL LOCK IL. 1
Mercedes N304017008021 - АВТОЗАПЧАСТЬ
HL 7/07 D-11,5/3,715 740.320
35 REAR AXLE - 350 DIFFERENTIAL GEAR,DIFFERENTIAL LOCK IL. 1
Поз.
Артикул
Описание
5
A6553507820
DIFFERENTIAL GEAR
8
A3933504303
AXLE HOUSING , Replaced By: A3883500262
8
A3883500262
AXLE HOUSING WITH BEARING CAP
11
A9429901604
SCREW BEARING COVER TO AXLE HOUSING
14
N000007008206
CYLINDRICAL PIN , Replaced By: N000007008101
14
N000007008101
CYLINDRICAL PIN
17
A3553500055
PIN AXLE HOUSING
20
N912009025100
SNAP RING
23
A3463532352
SPACER WASHER AS REQUIRED 1.00 MM
23
A3463532252
SPACER WASHER AS REQUIRED 0.50 MM
23
A3463531952
SPACER WASHER AS REQUIRED 0.15 MM
23
A3463531852
SPACER WASHER AS REQUIRED 0.10 MM
26
A3463530907
HOUSING PINION HOUSING
30
A0069908601
SCREW PINION HOUSING TO REAR AXLE HOUSING M 12X38
158
A3559900604
SCREW BRACKET TO BRACKET
158
A3463534777
WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 4.69 MM
161
N914112012201
SCREW , Replaced By: A3559900704
161
A3559900704
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
164
A3463340059
SEAL RING STEERING ARM TO STEERING KNUCKLE
167
A3553531545
COVER
170
A3553530380
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
173
N304017008021
SCREW PIPE CLAMP
