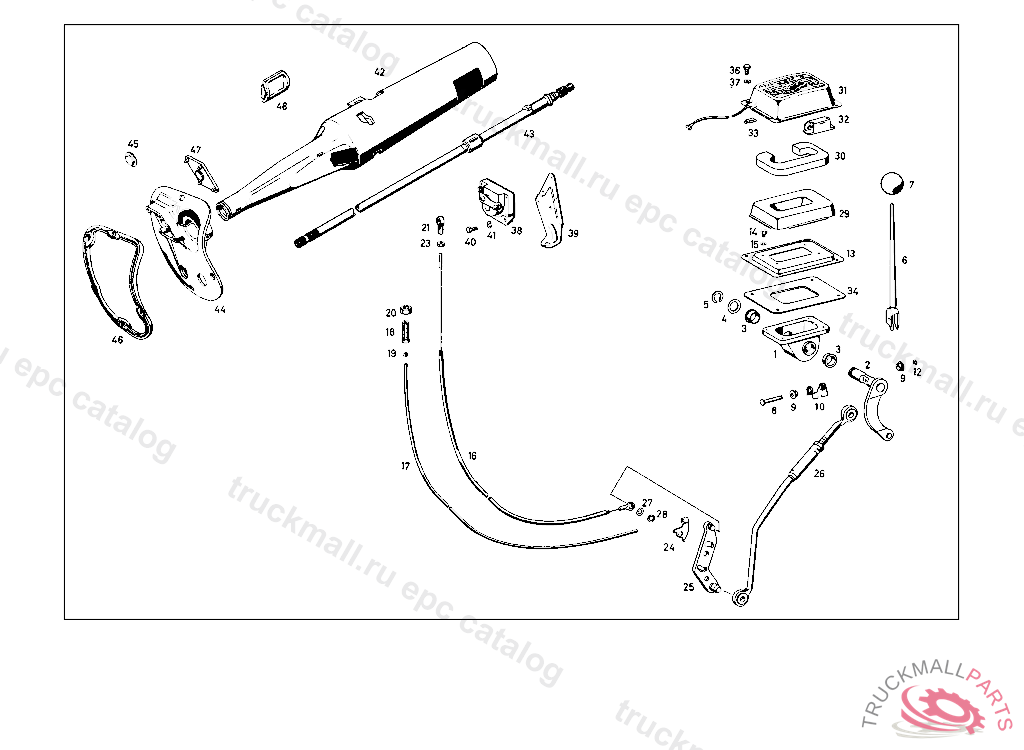

Поз.
Артикул
Описание
1
CASE
1
CASE
2
LEVER
3
BUSHING
4
WASHER
5
LOCK RING REVERSE SPEED STOP
6
SHIFT LEVER
7
HANDLE , 108.018,019 071883 EXCEPT FOR 071802,071873 109.016 UNTIL PRODUCTION STOP 109.056 003758 111.024,025 005065 111.026,027 002941
8
PIN
9
BUSHING
10
SPRING
12
LOCK
13
BRACKET
14
SCREW SHUT-OFF VALVE TO BRACKET
15
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
16
WIRE CABLE
17
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
18
SPACER TUBE
19
SEAL RING
20
NUT
21
BALL SOCKET LINK
21
BALL SOCKET , Replaced By: A6089910022
23
NUT CLAMP TO BRACKET
24
BRACKET
25
SHIFT LEVER
26
SHIFTING ROD
27
SPRING WASHER LICENSE PLATE TO BRACKET
28
LOCK PLATE
29
BOOT
30
SHIM
31
GUIDE PLATE
32
PLATE
33
CLAMP
34
SHIM
36
SCREW COVER PLATE TO COVER PLATE M 6 X 12
36
SCREW , Replaced By: N304017006018
37
SPRING WASHER LICENSE PLATE TO BRACKET
38
SWITCH,AUTOMATIC
39
BRACKET
40
SCREW COVER PLATE TO COVER PLATE M 6 X 10
40
SCREW , Replaced By: N304017006034
41
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
42
STEER. COLUMN JACKET TUBE , 004,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTNOTE 010,104,116 UP TO CHASSIS 358853 EXCEPT FOR,SEE FOOTNOTE 011,AND FOOTNOTE017 ON SPECIAL REQUEST,FLOOR SHIFT
43
STEERING SHAFT , 004,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTNOTE 010,104,116 UP TO CHASSIS 358853 EXCEPT FOR,SEE FOOTNOTE 011,AND FOOTNOTE017 ON SPECIAL REQUEST,DB POWER STEERING AND FLOOR SHIFT
44
COVERING STEERING PASSAGE, ON SPECIAL REQUEST,DB POWER STEERING
45
EXPANSION PLUG
46
SEAL
47
COVER FLOOR SHIFT
48
BOOT
999
BULB BLINKER LAMP, FOR U.S.A.
999
SHEET METAL SCREW , Replaced By: N000000002062
999
NUT BALL PIVOT TO LEVER
999
SCREW COVER PLATE TO BRACKET
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SCREW
999
WASHER
999
PIN
999
LOCK
999
SPRING
999
KNOB. BRACKET
999
SHIFT LEVER , 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.36,002,003,005,011,017 UP TO CHASSIS 034216 EXCEPT FOR SEEFOOTN.37 AND FOOTN.38
999
COVER
999
GUIDE PLATE , Replaced By: A1112600028
999
SLOTTED GATE
999
SLOTTED GATE
999
COVER
999
SHIFTING ROD
999
SHIFTING ROD
999
SHIFTING ROD
999
SHIFTING ROD
999
LEVER
999
SEAL RING
999
STEER. COLUMN JACKET TUBE , 004,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTNOTE 010,104,116 UP TO CHASSIS 362506 EXCEPT FOR,SEE FOOTNOTE 011 AND FOOTNOTE017 ON SPECIAL REQUEST,FLOOR SHIFT
999
BUSHING
999
COVER
999
COVER
999
GUIDE PIVOT , 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.36,002,003,005,011,017 UP TO CHASSIS 034216 EXCEPT FOR SEEFOOTN.37 AND FOOTN.38
999
BOOT , 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.36,002,003,005,011,017 UP TO CHASSIS 034216 EXCEPT FOR SEEFOOTN.37 AND FOOTN.38
999
RUBBER PAD
999
SPACER RING
999
SHIFTING ROD
999
SHIFTING ROD
999
BEARING BRACKET , 040898
999
SHIFTING ROD
999
BEARING BRACKET
999
LEVER
999
LEVER , Replaced By: A1112601381
999
LEVER
999
STEERING SHAFT , 001,002,004,010,016 FROM CHASSIS 190318,ALSO INSTALLED ON,SEE FOOTNOTE 010,100,101,104,110,116 FROM CHASSIS 358854,ALSO INSTAL LED ON,SEE FOOTNOTE 011,AND FOOTNOTE 019 ON SPECIAL REQUEST,DB POWER STEERING AND FLOOR SHIFT
999
STEER. COLUMN JACKET TUBE , 001,002,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON,SEE FOOTNOTE 010,100,101,104,110,116 FROM CHASSIS 362507 ALSO INSTAL LED ON,SEE FOOTNOTE 011,AND FOOTNOTE 019 ON SPECIAL REQUEST,FLOOR SHIFT
999
STEER. COLUMN JACKET TUBE FLOOR SHIFT, 001,002,004,010,016 FROM CHASSIS 190318,ALSO INSTALLED ON,SEE FOOTNOTE 010,100,101,104,110,116 FROM CHASSIS 358854,ALSO INSTAL LED ON,SEE FOOTNOTE 011,AND FOOTNOTE 019 ON SPECIAL REQUEST,DB POWER STEERING
999
STEER. COLUMN JACKET TUBE , 001,002,004,010,016 FROM CHASSIS 190318,ALSO INSTALLED ON,SEE FOOTNOTE 010,100,101,104,110,116 FROM CHASSIS 358854,ALSO INSTAL LED ON,SEE FOOTNOTE 011,AND FOOTNOTE 019 ON SPECIAL REQUEST,FLOOR SHIFT
999
STEER. COLUMN JACKET TUBE FLOOR SHIFT, 004,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTNOTE 010,104,116 UP TO CHASSIS 358853 EXCEPT FOR,SEE FOOTNOTE 011,AND FOOTNOTE017 ON SPECIAL REQUEST,DB POWER STEERING
999
SHIFTING ROD
999
LEVER
999
SHIFTING TUBE
999
SHIFTING TUBE
999
BEARING BRACKET
999
BEARING BRACKET
999
STEER. COLUMN JACKET TUBE
999
STEER. COLUMN JACKET TUBE
999
STEER. COLUMN JACKET TUBE , Replaced By: A1084605116
999
STEER. COLUMN JACKET TUBE , Replaced By: A1084605016
999
SHIFTING TUBE
999
SHIFTING TUBE , 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON, SEE FOOTN.36,002,003,005,011,017 FROM CHASSIS 034217 ALSO INSTAL- LED ON,SEE FOOTN.37 AND FOOTN.41
999
SWITCH,AUTOMATIC
999
SWITCH,AUTOMATIC
999
LOCK , Replaced By: N912002006000
