Поз.
Артикул
Описание

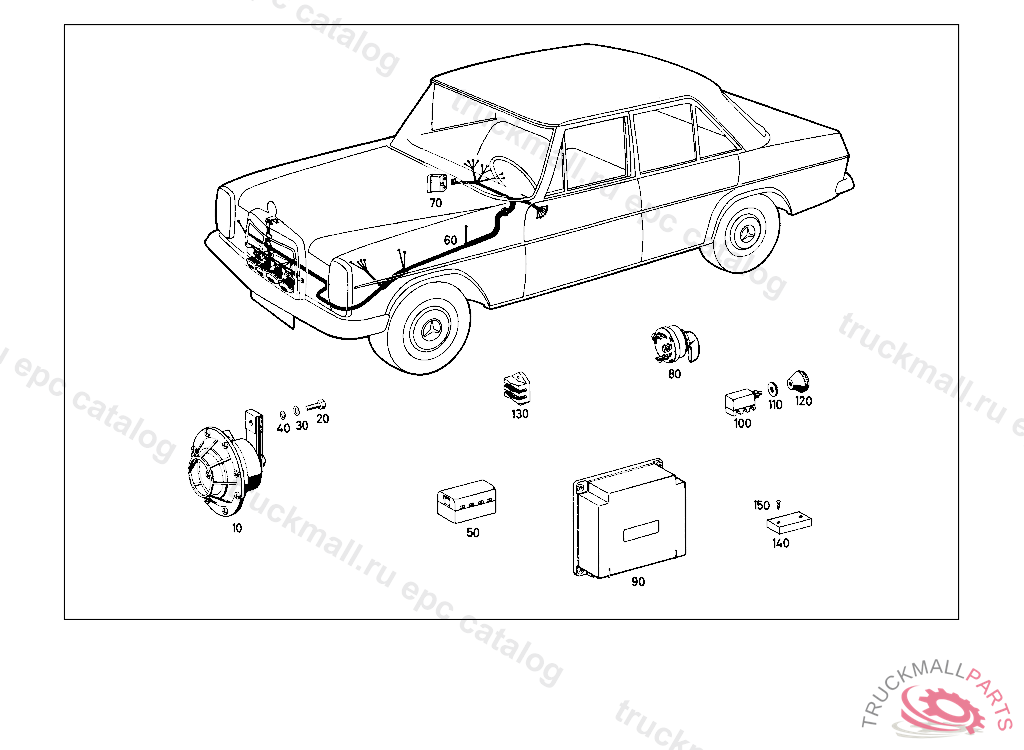

10
HORN
20
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
30
WASHER
40
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
50
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
50
FUSE BOX , Replaced By: A0005459901
60
CABLE HARNESS
70
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
70
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
80
SWITCH,AUTOMATIC ALARM SWITCH
90
SWITCH,AUTOMATIC SUCCESSIVE TONE SWITCH
100
SWITCH
110
ESCUTCHEON
120
KNOB
130
CABLE CONNECTOR , FROM CHASSIS:108.016 050831 108.018 053598 108.019 054235
140
COVERING
150
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
FUSE BOX , Replaced By: A0005457101
999
SWITCH , Replaced By: A0015450011
999
FUSE , Replaced By: N072581025100
999
LOCK
999
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
999
LOOM TIE , Replaced By: A0019974390
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
HORN LOW NOTE
999
CABLE HARNESS
999
BRACKET ELECTRIC CABLE TO CROSS MEMBER
999
BRACKET
999
CLAMP
999
SCREW ,374026
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
SHEET METAL SCREW LINE MOUNTING
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW
999
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
999
FUSE , Replaced By: A0015457534
999
LOCK WASHER T-FITTING TO BRACKET
