Поз.
Артикул
Описание

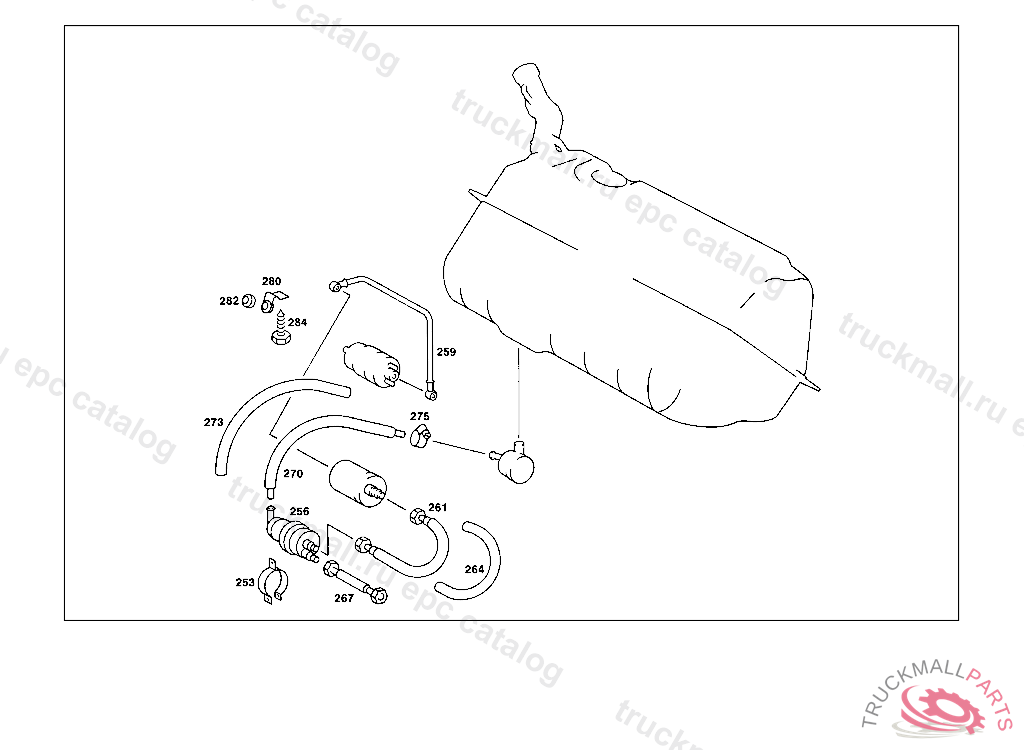

253
BRACKET FUEL ACCUMULATOR, 107.024 025530 107.044 053366 116.032,033 089514
256
ACCUMULATOR , 107.024 025530 107.044 053366 116.032,033 089514
259
FUEL HOSE FROM FUEL PUMP TO FUEL FILTER, 107.024 025530 107.044 053366 116.032,033 089514
261
FUEL HOSE FROM FUEL FILTER TO FUEL ACCUMULATOR, 107.024 025530 107.044 053366 116.032,033 089514
264
HOSE220 MM, ORDER BY THE METER
267
FUEL HOSE FROM FUEL ACCUMULATOR TO FEED LINE, 107.024 025530 107.044 053366 116.032,033 089514
270
HOSE , ORDER BY THE METER
270
HOSE , Replaced By: A1074763126
270
HOSE , Replaced By: A1074763726
270
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004763726
273
HOSE , Replaced By: A1239976382
273
HOSE , Replaced By: A1079971482
273
HOSE220 MM, ORDER BY THE METER
275
CLAMP CHECK VALVE,K 169122
280
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
280
BRACKET FUEL HOSE TO CROSS MEMBER,107.044 055562
280
BREATHER PIPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1074716615
282
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
284
SHEET METAL SCREW VALVE TO WINDOW SILL
999
INSULATING HOSE , ORDER BY THE METER
999
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
999
HOSE CLAMP HOSE FASTENING 9/13MM
999
LOOM TIE , Replaced By: A0019974190
999
EXPANSION TANK
999
BOOT CHECK VALVE,K 169122
999
CLAMP FORKED SUPPORT,TOP
999
HOSE , Replaced By: N073379008100
999
CLAMP , 115.100,105,110,115,117 R.H.D.
999
HOSE
999
TANK
999
CLAMP , FROM CHASSIS: 010 115422 110 307703 017,117 000001
999
VALVE
999
CLAMP
999
FUEL HOSE
999
FUEL HOSE
999
DAMPING STRIP , Replaced By: A1094760384
999
HOSE , Replaced By: N073379008200
999
HOSE ***
999
CLAMP
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
CLAMP RISING PIPE,5 4734955 909351
999
CLAMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0059972790
999
CLAMP , Replaced By: N000000000665
999
CLAMP
