Поз.
Артикул
Описание

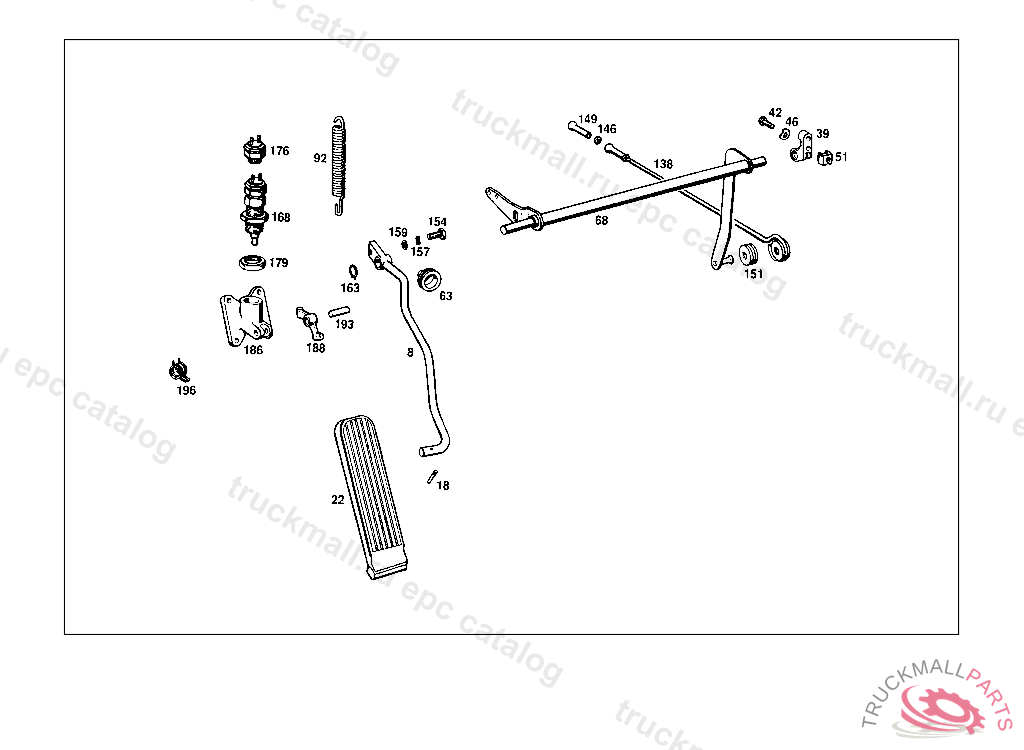

8
ACCELERATOR PEDAL , 014 FROM CHASSIS 039990,021/023 FROM CHASSIS 039960
18
PIN
22
PEDAL PLATE , Replaced By: A1103000002
22
PLATE ,014,10/50,12,52 FROM CHASSIS 049462 INSTALLED ON,SEE FOOTN.15,014,20/60,22/62 FROM CHASSIS 049391 INSTALLED ON,SEE FOOTN.16 A ND 20
39
BEARING CONTROL SHAFT
42
SCREW COVER PLATE TO FIRE WALL, 042 #AF001818 ALSO INSTALLED ON 001813, 001816
46
SPRING WASHER LICENSE PLATE TO BRACKET
51
NUT RETAINER LICENSE PLATE TO BRACKET
51
NUT RETAINER REGULATOR AND CUT-OUT, FOR VEHICLES HAVING LOW CAB 344 ON CAB 344
51
NUT RETAINER , Replaced By: A0019906791
63
GROMMET
68
SHAFT , 012 FROM CHASSIS 074325, 016 FROM CHASSIS 021604, 018 FROM CHASSIS 021414, 019 FROM CHASSIS 021273
92
SPRING
138
ROD
146
NUT TACHOGRAPH TO BRACKET
149
CONICAL CUPTO 102 070 09 75
149
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
149
BALL SOCKET , Replaced By: A0009918922
151
BOOT
151
BOOT
154
SCREW
157
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
157
SPRING WASHER , Replaced By: N000137008212
159
WASHER MOUNTING PLATE TO BODY FLOOR
163
LOCK RING
168
STOP
176
SWITCH , UP TO CHASSIS: 011: 12/52 100000 007,008,015,017: 12/52 200000
179
NUT
186
HOUSING
188
LEVER
193
PIN
196
SPRING
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SCREW LINE TO CROSS MEMBER
999
ACCELERATOR PEDAL
999
PAD , Replaced By: A1233000204
999
STOP
999
ACCELERATOR PEDAL , 014 FROM CHASSIS 039990,021/023 FROM CHASSIS 039960
999
PAD , Replaced By: A1103000002
999
PAD
999
INSERT , Replaced By: A1103010083
999
INSERT
999
SHAFT
999
SHAFT , 012 UP TO CHASSIS 074324, 016 UP TO CHASSIS 021603, 018 UP TO CHASSIS 021413, 019 UP TO CHASSIS 021272, Replaced By: A1083000820, +001A1143010051
999
PLUG
