Mercedes A1159970032 - Болт

HL 7/022 D-12,3/3,43 740.614

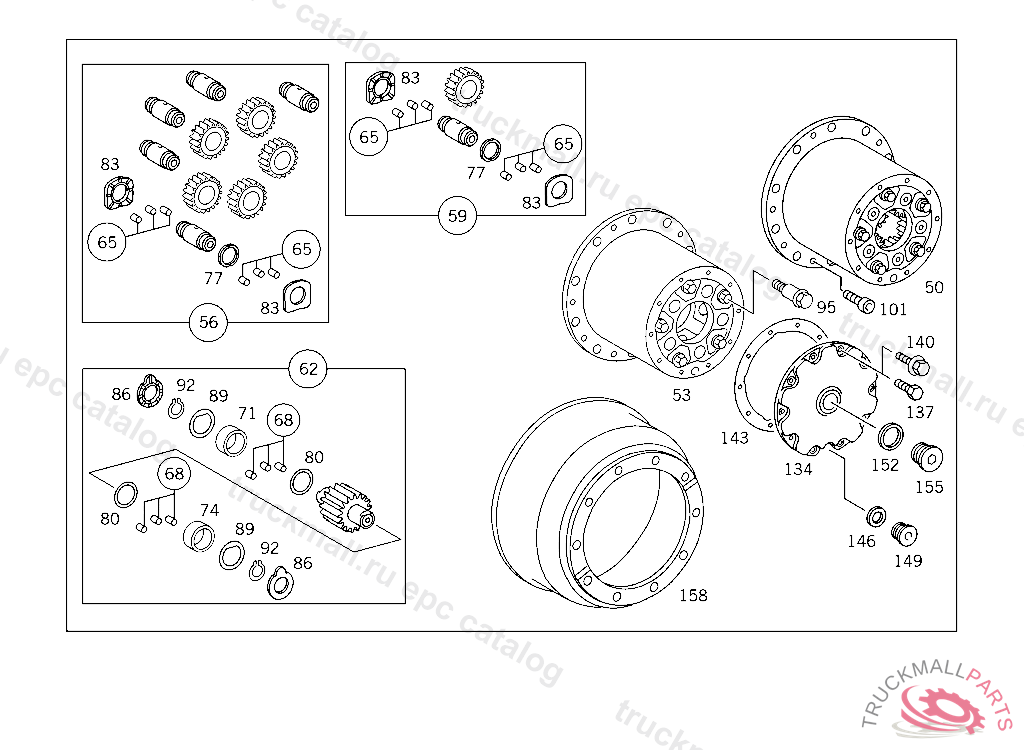

35 740.6 REAR AXLE - 600 WHEEL BEARINGS,PLANETARY GEAR TRAIN WITH AXLE SHAFTS IL. 2

Поз.
Артикул
Описание
50
A3463502909
PLANETARY GEARING AVAILABLE AS AN ASSEMBLY ONLY I1:3.167, V 207699
53
A3463506633
BELL HUB WITH PLANETARY CARRIER
62
A3883500154
PLANET GEAR PARTS KIT
68
A0019810687
NEEDLE PLANETARY GEAR TRAIN
71
A3469810180
OUTER RACE NEEDLE BEARING
74
A3469810280
OUTER RACE NEEDLE BEARING
80
A3463540362
THRUST WASHER PLANETARY GEAR TRAIN
86
A3463541062
THRUST WASHER PLANETARY GEAR TRAIN
89
A3463540662
THRUST WASHER PLANETARY GEAR TRAIN
92
N000471028000
LOCK RING PLANETARY GEAR TRAIN
95
A6243540071
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
95
A6243540171
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
101
A0059906104
CAPSCREW W HEXAL. DRIVE BRACKET TO PUMP M12X25
134
A6243560020
HUB CAP BELL HUB
140
A0009906404
SCREW COVER TO BELL HUB
143
A6503560080
GASKET COVER TO HUB
146
N007603024105
SEAL RING OIL FILLING AND OIL DRAIN
149
A1159970032
SCREW PLUG , Replaced By: A2109970132
149
A6249970032
SCREW PLUG OIL DRAIN
152
N007603045100
SEALING RING OIL FILLING
155
A3559970232
SCREW PLUG OIL FILLING
158
A6174230101
BRAKE DRUM
