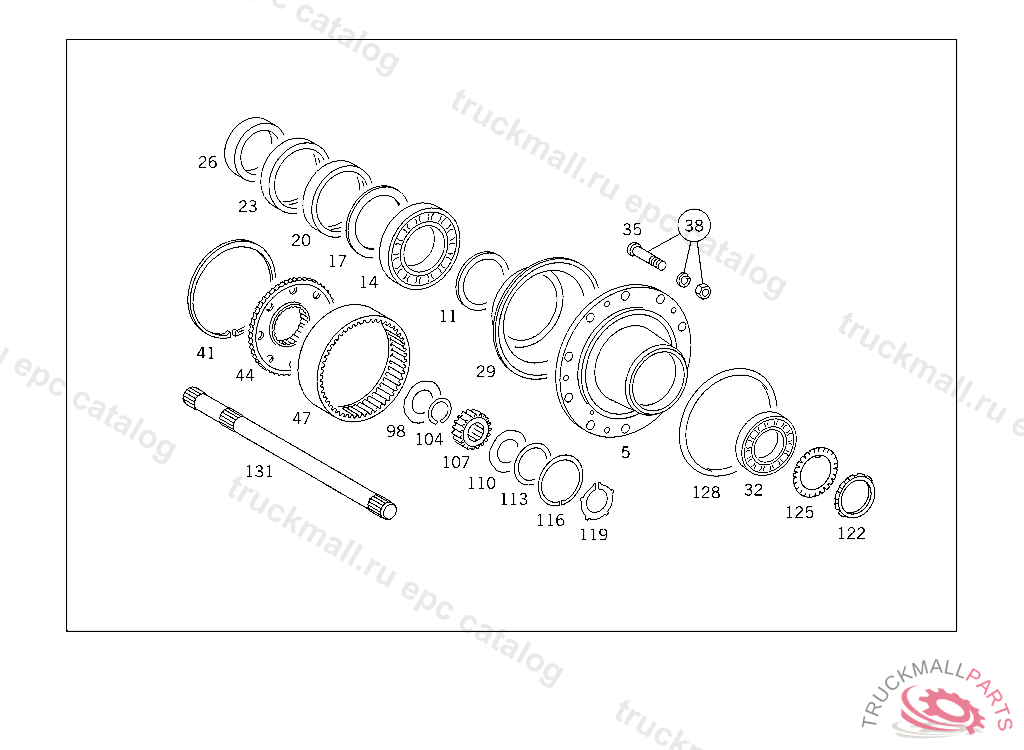

Поз.
Артикул
Описание
5
WHEEL HUB CASTING
5
WHEEL HUB
14
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
14
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
14
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
14
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
17
COVER PLATE WHEEL BEARING
20
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 49 47
20
SEAL RING WHEEL HUB, INSIDE
23
SEAL RING FRONT WHEEL HUB,OUTSIDE, ONLY APPLICABLE TO MODELS: 748.271
26
THRUST RING WHEEL BEARING
29
OIL COLLECTOR WHEEL HUB SEALING
32
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
32
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
32
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
35
WHEEL MOUNTING BOLT DISC WHEEL TO REAR DRUM HUB M 22X1.5X105, Replaced By: A0004013871
41
WIRE RING OUTSIDE GEAR TO SUPPORT
44
SUPPORT OUTSIDE GEAR, V 207287
47
OUTSIDE GEAR
98
THRUST WASHER
104
SNAP RING
107
SUN GEAR NUMBER OF TEETH: 30
110
THRUST WASHER
113
SPACER WASHER AS REQUIRED 1.50 MM
113
SPACER WASHER AS REQUIRED 1.00 MM
113
SPACER WASHER AS REQUIRED 0.50 MM
113
SPACER WASHER AS REQUIRED 0.20 MM
113
SPACER WASHER AS REQUIRED 0.10 MM
116
RETAINING RING MOUNTING TO WHEEL HUB 108X4.0
122
GROOVED NUT , Replaced By: A9423560126
122
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
122
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
125
LOCK PLATE WHEEL HUB TO AXLE JOURNAL
128
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
128
SEAL RING , Replaced By: A0169974048
131
REAR AXLE SHAFT LESS INTERLOCK SERRATIONS
