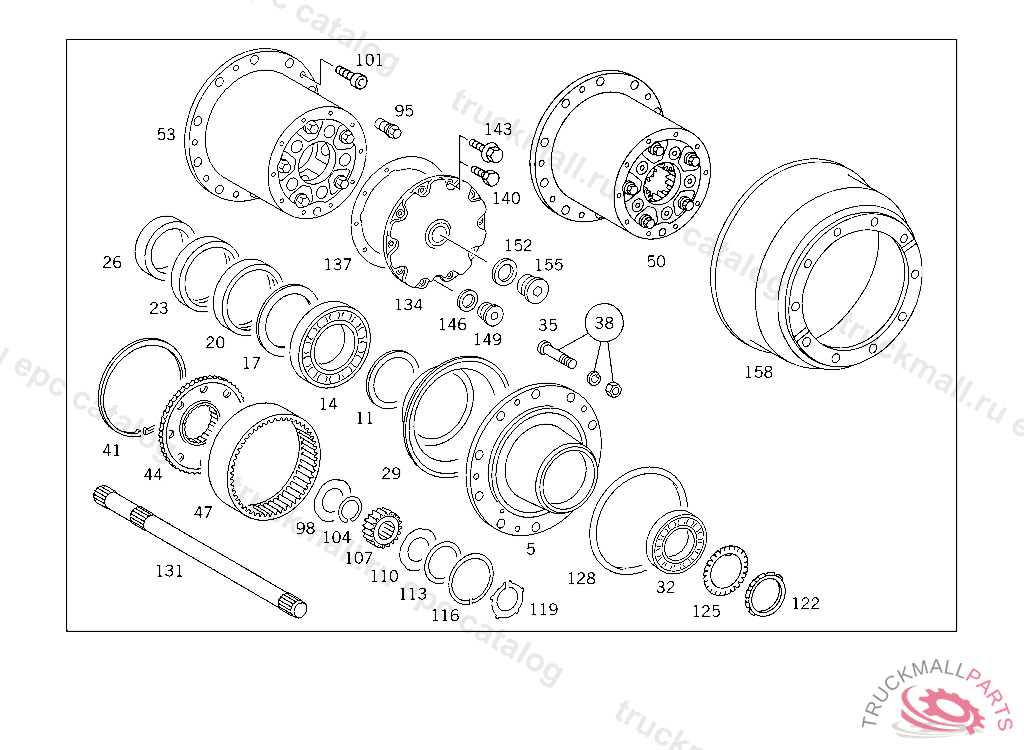

Поз.
Артикул
Описание
5
WHEEL HUB
5
WHEEL HUB
11
OIL COLLECTOR WHEEL HUB, INSIDE,V 361112
14
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
14
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
14
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
14
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
17
COVER PLATE WHEEL BEARING
20
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 49 47
20
SEAL RING
20
SEAL RING , Replaced By: A0139979467
20
SEAL RING , Replaced By: A0139979467
20
SEAL RING , Replaced By: A0139979447
23
SEAL RING FRONT WHEEL HUB,OUTSIDE, ONLY APPLICABLE TO MODELS: 748.271
23
SEAL RING
26
THRUST RING WHEEL BEARING
26
THRUST RING , Replaced By: A3463561415
29
OIL COLLECTOR
32
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
32
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
32
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
35
WHEEL MOUNTING BOLT LIGHT-ALLOY-SHEET DISC WHEEL, Replaced By: A0004013771
38
PIN (PARTS KIT),WHEEL MOUNTING, WHEEL OPENING: 32 MM
41
WIRE RING OUTSIDE GEAR TO SUPPORT
44
SUPPORT OUTSIDE GEAR, LKWW 972499, BUSW974540
47
OUTSIDE GEAR ,W 874844, V000001W 972499
50
PLANETARY GEARING
53
BELL HUB WITH PLANETARY CARRIER,V 156242
95
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
95
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
98
GUARD PLATE PLANETARY GEAR TRAIN
101
CYLINDRICAL HEAD SCREW. SCREW TIGHTENER PULLEY TO LEVER M 12X1.5X30, 362 842770 364 012804 EXCEPT FOR 012768,012771,021773,012776,012779-012785 366 048719
104
SNAP RING
107
SUN GEAR NUMBER OF TEETH: 23, LKWW 972499, BUSW974540
110
GUARD PLATE PLANETARY GEAR TRAIN
113
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
113
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
113
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
113
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
113
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
116
LOCK RING , Replaced By: N000472105001
119
LOCK RING45X1.75 MM
122
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
122
GROOVED NUT , Replaced By: A9423560126
122
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
125
LOCK PLATE ADJUSTER TO BRAKE CAMSHAFT
128
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
128
SEAL RING , Replaced By: A0169974048
131
REAR AXLE SHAFT
134
END COVER , Replaced By: A6243560020, +001A6503560080, +001A6249970032, +010N914146010401
134
HUB CAP BELL HUB
140
SCREW BRAKE CYLINDER TO BRAKE ANCHOR PLATE
146
SEAL RING OIL FILLING AND OIL DRAIN
149
SCREW PLUG , Replaced By: A2109970132
152
SEALING RING OIL FILLING
155
SCREW PLUG OIL FILLING
158
BRAKE DRUM
