Поз.
Артикул
Описание
5

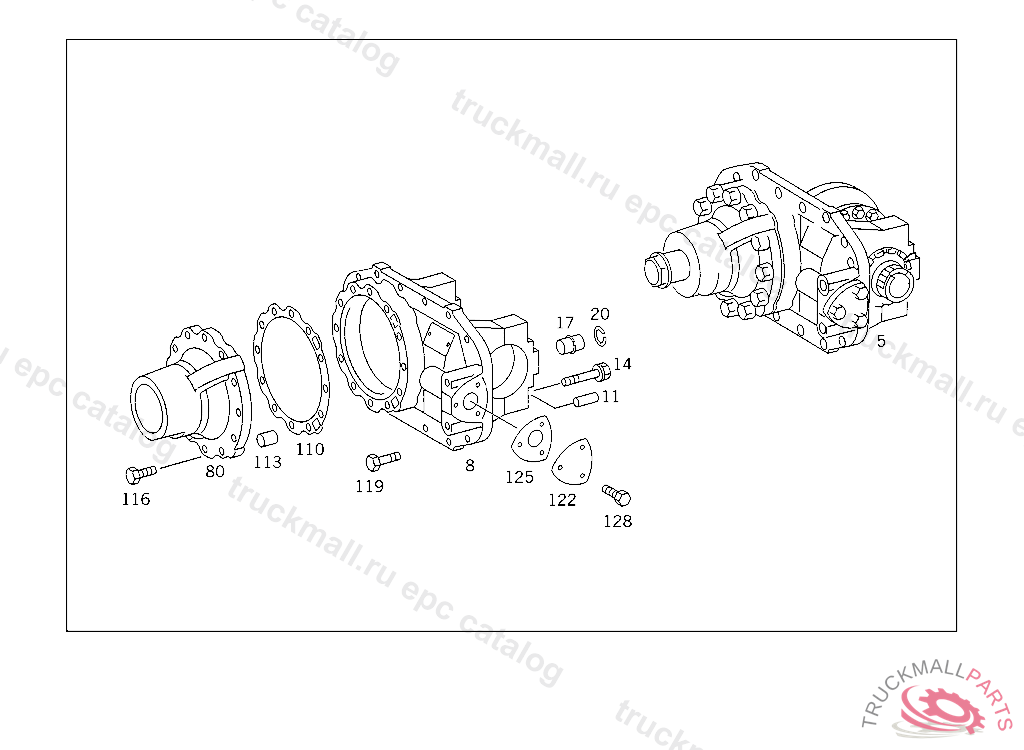

AXLE HOUSING
8
AXLE HOUSING DIFFERENTIAL GEAR
11
CYLINDRICAL PIN , Replaced By: N000007008101
14
SCREW BEARING COVER TO AXLE HOUSING
17
PIN DIFFERENTIAL GEAR BEARING
20
SNAP RING
80
HOUSING (PINION HOUSING)
110
SPACER WASHER AS REQUIRED 0.10 MM
110
SPACER WASHER AS REQUIRED 0.15 MM
110
SPACER WASHER PINION HOUSING, AS REQUIRED 0.20 MM
110
SPACER WASHER PINION HOUSING, AS REQUIRED 0.35 MM
110
SPACER WASHER AS REQUIRED 0.50 MM
110
SPACER WASHER AS REQUIRED 1.00 MM
110
SPACER WASHER PINION HOUSING, AS REQUIRED 1.50 MM
113
SEAL RING PINION HOUSING TO AXLE HOUSING
116
SCREW PINION HOUSING TO REAR AXLE HOUSING M 12X38
119
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
119
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
