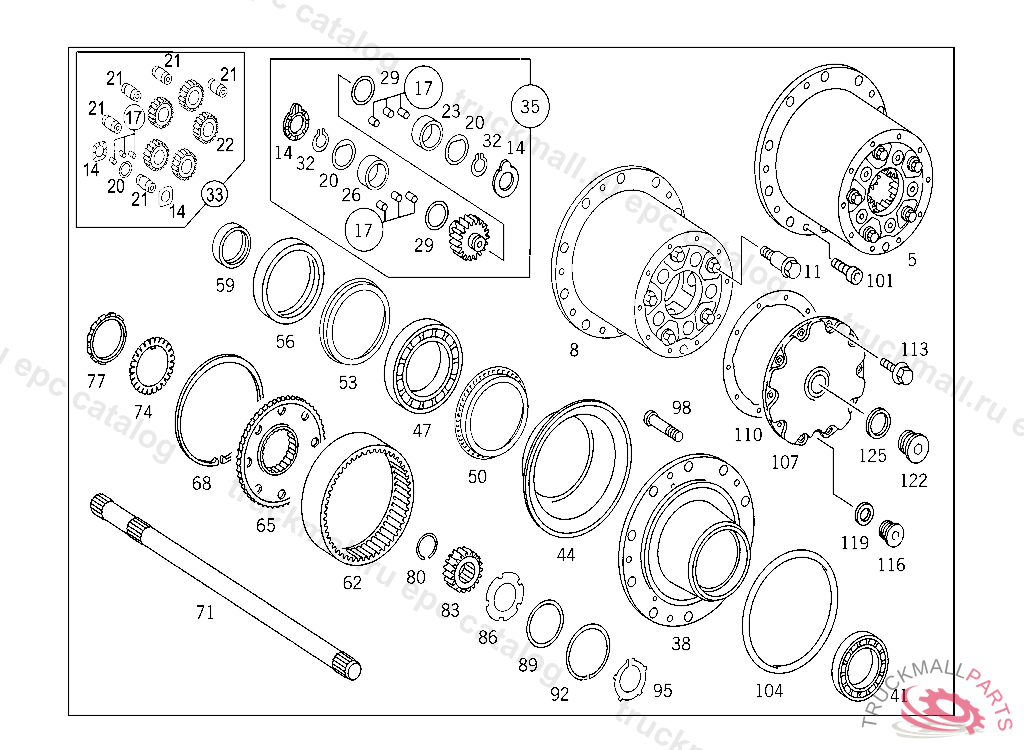

Поз.
Артикул
Описание
5
PLANETARY GEARING RATIO: I1:3.167, V 207699
5
PLANETARY GEARING RATIO: 1:3.429,V 207324, Replaced By: A9423501809
8
BELL HUB WITH PLANETARY CARRIER, LKW W 972500, BUS W974541, V 000001, Replaced By: A0003500633
8
BELL HUB WITH PLANETARY CARRIER
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
14
THRUST WASHER PLANET GEAR, NOT YET AVAILABLE
14
THRUST WASHER PLANET GEAR
14
THRUST WASHER PLANETARY GEAR TRAIN
17
NEEDLE PLANET GEAR
17
NEEDLE PLANETARY GEAR TRAIN
20
THRUST WASHER PLANETARY GEAR TRAIN
20
THRUST WASHER PLANET GEAR
21
PIN PLANET GEAR
22
PLANET GEAR , ONLY REPLACEABLE BY THE SET
23
OUTER RACE NEEDLE BEARING
26
OUTER RACE NEEDLE BEARING
29
THRUST WASHER PLANETARY GEAR TRAIN
32
LOCK RING PLANETARY GEAR TRAIN
33
PLANET GEAR PARTS KIT, TO BE ORDERED ONLY FROM MBB
33
PLANET GEAR PARTS KIT
35
PLANET GEAR PARTS KIT, V 208582
38
WHEEL HUB STEEL VERSION
41
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
41
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
41
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
44
OIL COLLECTOR WHEEL HUB, OUTSIDE TO 346 356 28 01/29 01
47
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
47
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
47
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
47
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
53
COVER PLATE WHEEL HUB, INSIDE
53
COVER PLATE WHEEL BEARING
56
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 49 47
56
RADIAL SHAFT SEALING RING WHEEL HUB, OUTSIDE, ORDER ADDITIONALLY: A 013 997 89 46
56
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 90 45
56
SEAL RING FRONT WHEEL HUB,OUTSIDE, ONLY APPLICABLE TO MODELS: 748.271
59
THRUST RING WHEEL BEARING
62
OUTSIDE GEAR
62
OUTSIDE GEAR NUMBER OF TEETH: 85
62
OUTSIDE GEAR NUMBER OF TEETH: 85
65
SUPPORT OUTSIDE GEAR
65
SUPPORT OUTSIDE GEAR
68
WIRE RING OUTSIDE GEAR TO SUPPORT
71
REAR AXLE SHAFT LESS INTERLOCK SERRATIONS
71
REAR AXLE SHAFT WITH INTERLOCK SERRATIONS
71
REAR AXLE SHAFT WITH INTERLOCK SERRATIONS
71
REAR AXLE SHAFT LESS INTERLOCK SERRATIONS
74
LOCK PLATE WHEEL HUB TO AXLE JOURNAL
77
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
77
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
80
SNAP RING
83
SUN GEAR NUMBER OF TEETH: 30
83
SUN GEAR NUMBER OF TEETH: 35
86
THRUST WASHER
86
THRUST WASHER PLANET GEAR
89
SPACER WASHER AS REQUIRED 1.00 MM
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
89
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
89
SPACER WASHER AS REQUIRED 1.50 MM
89
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.80 MM
89
SPACER WASHER AS REQUIRED 0.20 MM
89
SPACER WASHER AS REQUIRED 0.50 MM
89
SPACER WASHER AS REQUIRED 0.10 MM
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.80 MM
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
92
LOCK RING , Replaced By: N000472105001
95
LOCK RING45X1.75 MM
98
WHEEL MOUNTING BOLT LIGHT-ALLOY-SHEET DISC WHEEL, Replaced By: A0004013771
98
WHEEL MOUNTING BOLT REAR AXLE CASING II M 22X1,5X130MM
98
WHEEL MOUNTING BOLT DISC WHEEL ON WHEEL HUB
101
CAPSCREW W HEXAL. DRIVE BRACKET TO PUMP M12X25
104
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
104
SEAL RING , Replaced By: A0169974048
107
HUB CAP BELL HUB
110
GASKET COVER TO HUB
110
GASKET , Replaced By: A6503560080
113
SCREW COVER TO BELL HUB
116
SCREW PLUG OIL DRAIN
119
SEAL RING OIL FILLING AND OIL DRAIN
119
SEALING RING. SEAL RING OIL DRAIN
122
SCREW PLUG OIL FILLING
125
SEALING RING OIL FILLING
999
REAR AXLE SHAFT WITH INTERLOCK SERRATIONS
999
REAR AXLE SHAFT LESS INTERLOCK SERRATIONS
