Поз.
Артикул
Описание

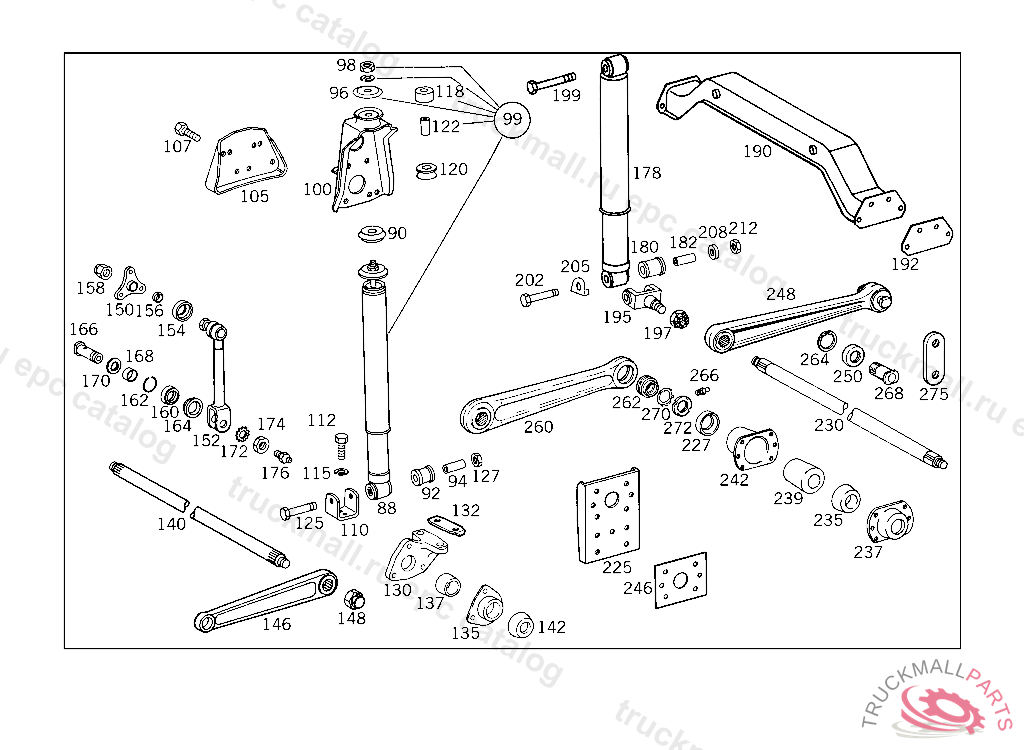

88
SHOCK ABSORBER , Replaced By: A3533230000
88
SHOCK ABSORBER FRONT,600576
90
RETAINER
92
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
92
RUBBER MOUNTING TOP AND BOTTOM TO 673 323 00 00
94
SPACER RINGTO 002 323 86 00,003 323 03 00,
94
SPACER TUBE , Replaced By: A0003232550
94
BUSHING BOTTOM TO 673 323 00 00,675 323 06 00
94
GELENKBUCHSE. SPACER TUBE , Replaced By: A0003232750
96
RETAINERTO 004 323 72 00,600577
96
RETAINER SHOCK ABSORBER,BOTTOM
96
RETAINER , Replaced By: A3173260167
96
RETAINER
96
RETAINER , Replaced By: A3173230667
98
NUT STEERING SUPPORT TO FRAME
98
NUT , Replaced By: N910113014000
99
SHOCK ABSORBER (PARTS KIT),600577
100
BRACKET SHOCK ABSORBER,600576
100
CONSOLE SHOCK ABSORBER,600577
105
REINFORCEMENT TOP BEARING BRACKET TO FRAME
107
SCREW , Replaced By: N304017010002
107
SCREW BRACKET TO SIDE MEMBER
110
BEARING BRACKET BOTTOM BEARING BRACKET TO FRONT AXLE,600576
110
BEARING BRACKET BOTTOM BEARING BRACKET TO FRONT AXLE,600577
112
SCREW , Replaced By: N000961012051
112
SCREW BEARING BRACKET TO FRAME
115
LOCK WASHER FITTING TO BRACKET
118
RUBBER BUFFER SHOCK ABSORBER TO UPPER BEARING BRACKET
118
RUBBER BUFFER SHOCK ABSORBER TO UPPER BEARING BRACKET
120
RUBBER BUFFER SHOCK ABSORBER TO REAR AXLE
120
RUBBER BUFFER SHOCK ABSORBER TO BEARING BRACKET
122
SPACER TUBE SHOCK ABSORBER TO UPPER BEARING BRACKET,600576
122
SPACER TUBE , Replaced By: A3179911240
122
SPACER TUBE SHOCK ABSORBER TO CROSS MEMBER AND TO BEARING
125
SCREW ,A 006845
125
SCREW , Replaced By: N000960016250
127
NUT M14X1,5 MM
127
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
127
NUT COMBINATION CYLINDER TO BEARING BRACKET
130
BEARING BRACKET AT TORSION BAR, 322 UP TO CHASSIS 602130,323 UP TO CHASSIS 604086,328 UP TO CHASSIS 602623
130
BEARING BRACKET TORSION BAR
135
HOUSING
135
HOUSING TORSION BAR,FRONT,600253-600263
135
HOUSING STABILIZER,D 012295
137
RUBBER MOUNTING TORSION BAR,FRONT,600252
137
RUBBER MOUNTING TORSION BAR,FRONT,600253-600263
137
RUBBER MOUNTING FRONT AXLE TORSION BAR
140
TORSION BAR TORSION BAR,FRONT,600252
140
TORSION BAR TORSION BAR,FRONT,600253-600263
140
TORSION BAR ,5 765806, Replaced By: A3523230565, +002N000937027004
140
TORSION BAR FRONT,5 765807
142
SPACER RING TORSION BAR,FRONT,600263
142
SPACER RING REAR AXLE STABILIZER
146
LEVER TORSION BAR,FRONT,600252
146
LEVER TORSION BAR,FRONT,600253-600263
146
LEVER TORSION BAR,FRONT,600264-601024
146
LEVER TORSION BAR
148
NUT DRAG LINK TO LEVER
148
NUT DRAG LINK TO LEVER
148
NUT LEVER TO TORSION BAR
148
NUT DRAG LINK TO LEVER
150
PLATE , Replaced By: A3603230663
150
BEARING BRACKET STABILIZER MOUNTING
152
ROD TORSION BAR TO FRAME LEMFOERDER,601024
152
ROD TORSION BAR TO FRAME SKF
152
ROD TORSION BAR TO FRAME INA
152
ROD TORSION BAR TO FRAME LEMFOERDER
154
BOOT , 322 UP TO CHASSIS 602130,323 UP TO CHASSIS 604086,328 UP TO CHASSIS 602623
154
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300785
154
BOOTLEMFOERDER
156
MOUNTING RING. SEAL RING
158
NUT , Replaced By: N910113014001
158
NUT BRACKET TO SIDE MEMBER
160
JOINT BEARING , Replaced By: A0009817231
160
JOINT BEARING , Replaced By: A0009817331
160
JOINT BEARING , Replaced By: A0009817231
160
JOINT BEARING , Replaced By: A0019814631
160
JOINT BEARING
160
JOINT BEARING
162
SNAP RING FRONT AXLE STABILIZER
164
SEAL RING ROD TO TORSION BAR
166
PIN ARTICULATED ROD TO LEVER,D 012295
168
SPACER TUBE
170
TOOTHED WASHER ROD TO TORSION BAR
172
TOOTHED WASHER ROD TO TORSION BAR
174
NUT ROD TO TORSION BAR
176
GREASE NIPPLE PROTECTIVE TUBE
178
SHOCK ABSORBER FRONT AXLE II
180
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
180
RUBBER MOUNTING , UP TO IDENT-NO.: LB887910 ALSO INSTALLED IN: LB887915,LB887936,LB888020,LB888023,LB888026* FROM IDENT-NO.: SEE STANDARD MICROFICHE EXCEPT:LB887915,LB887936,LB888020,LB888023,LB888026*
182
SPACER RINGTO 002 323 86 00,003 323 03 00,
182
SPACER TUBE , Replaced By: A0003232550
190
CROSS MEMBER REAR SHOCK ABSORBERS
190
CROSS MEMBER , Replaced By: A3583100140
192
MOUNTING PLATE CROSS MEMBER TO SIDE MEMBERS
192
SHIM , Replaced By: A3123121557
195
BRACKET , LP 353 UP TO CHASSIS 601308,LP 358 UP TO CHASSIS 604198
195
BRACKET ,A 006845
197
NUT DRAG LINK TO LEVER
199
SCREW SHOCK ABSORBER TO FORK, UP TO IDENT NO. 802164 EXCEPT FOR 500001-599999
199
SCREW SHOCK ABSORBER TO BEARING BRACKET, 032,033,040,041 UP TO CAB 1405102
199
SCREW SHOCK ABSORBER TO CROSS MEMBER
199
SCREW , Replaced By: A6749901204, +001N913004016005
202
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
205
LOCK SHOCK ABSORBER TO BOTTOM BRACKET
208
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
208
WASHER , Replaced By: A3379900540
212
NUT SHOCK ABSORBER TO CROSS MEMBER
212
NUT SHOCK ABSORBER TO CROSS MEMBER
212
NUT , Replaced By: N000979016007
999
SPRING LEAFNO.1, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.2, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.3, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.4, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.5, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.2, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.3, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.4, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.5, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.6, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.7, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.1, 602479 604198
999
SPRING LEAFNO.2, 602479 604198
999
SPRING LEAFNO.5, 602479 604198
999
SPRING LEAFNO.6
999
SPRING LEAFNO.8, 602479 604198
999
SPRING LEAFNO.9
999
SPRING LEAFNO.3, 602479 604198
999
SPRING LEAFNO.4
999
SPRING LEAFNO.3
999
SPRING LEAFNO.4, 602479 604198
999
SPRING LEAFNO.5, 602479 604198
999
SPRING LEAFNO.6
999
SPRING LEAFNO.7
999
SPRING LEAFNO.2
999
REPAIR KIT TORSION BAR,FRONT,D 012295
999
REPAIR KIT , Replaced By: A3603200041
999
SHACKLE PIN (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET
999
SHACKLE PIN PARTS KIT
999
BUSHING
999
BUSHING
999
SHACKLE PIN , Replaced By: A3855860232
999
SPRING LEAFNO.7, 602479 604198
999
SPRING LEAFNO.9
999
SPRING LEAFNO.8
999
SPACER , UP TO IDENT NO. 4 714333,FROM IDENT NO. SEE SA 25066/11
999
SHIM , 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SPRING LEAFNO.1, 602479 604198
999
REAR SPRING LESS HELPER SPRING
999
SPRING LEAFNO.1, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
REAR SPRING 9-LEAF,WITH 9-LEAF HELPER SPRING
999
HELPER SPRING
999
REAR SPRING 7-LEAF,WITH 5-LEAF HELPER SPRING, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
REAR SPRING , 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399, Replaced By: A3583200408
999
HELPER SPRING 5-LEAF, 358 320 04 08 REAR SPRINGS WERE INSTALLED ON SOME OF THE VEHICLES FROM IDENT NO. 658096-681316 THIS INSTALLATION WAS MARKED ON THE RESPECTIVE VEHICLE DATA CARD BY THE ENTRY-SA 16761/11 HINTERFEDER AE J 9399
999
SHIM FRONT SPRINGS TO FRONT AXLE
999
SPRING LEAFNO.6, 600975 601308
999
SPRING LEAFNO.5, 600975 601308
999
SPRING LEAFNO.4, 600975 601308
999
SPRING LEAFNO.3, 600975 601308
999
SPRING LEAFNO.2, 600975 601308
999
SPRING LEAFNO.7, 600975 601308
999
SPRING LEAFNO.5, 600975 601308
999
SPRING LEAFNO.4, 600975 601308
999
SPRING LEAFNO.3, 600975 601308
999
SPRING LEAFNO.2, 600975 601308
999
SPRING LEAFNO.1, 600975 601308
999
SPRING LEAFNO.7, 600253-600974
999
SPRING LEAFNO.6, 600253-600974
999
SPRING LEAFNO.5, 600253-600974
999
SPRING LEAFNO.4, 600253-600974
999
SPRING LEAFNO.3, 600253-600974
999
SPRING LEAFNO.2, 600253-600974
999
SPRING LEAFNO.5, 600253-600974
999
SPRING LEAFNO.4, 600253-600974
999
SPRING LEAFNO.3, 600253-600974
999
SPRING LEAFNO.2, 600253-600974
999
SPRING LEAFNO.1, 600253-600974
999
SPRING LEAFNO.6, 600975 601308
999
SPRING LEAFNO.8, 600253-600974
999
SPRING LEAFNO.6,600252
999
SPRING LEAFNO.5, 600252
999
SPRING LEAFNO.4, 600252
999
SPRING LEAFNO.3, 600252
999
SPRING LEAFNO.2, 600252
999
SPRING LEAFNO.1, 600252
999
SPRING LEAFNO.8, 600252
999
SPRING LEAFNO.7, 600252
999
SPRING LEAFNO.6, 600252
999
SPRING LEAFNO.5, 600252
999
SPRING LEAFNO.4, 600252
999
SPRING LEAFNO.2,600252
999
SPACER
999
SPRING LEAF , Replaced By: A3583240048
999
SPACER
999
BUSHING
999
SPRING LEAF LESS SPRING CLAMP NO.3, 654576
999
SPRING LEAFNO.2, 654576
999
SPRING LEAF WITH SPRING CLAMP NO.4, 654576
999
SPRING LEAFNO.1, 654576
