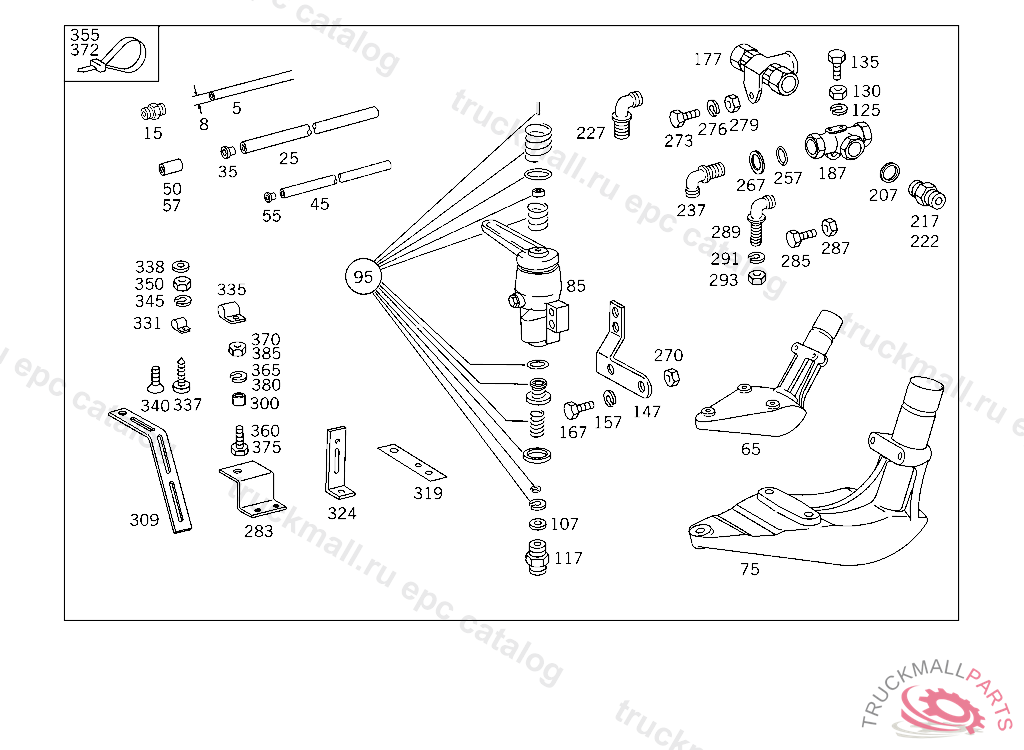

Поз.
Артикул
Описание
5
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
15
FITTING (PARTS KIT),LINE RUPTURE
25
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
25
HOSE , Replaced By: A0009872827
35
SLEEVE LINE CONNECTION
45
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
50
FITTING
55
SLEEVE LINE CONNECTION
57
FITTING
65
BEARING PLEASE REFER TO ADDITIONAL PARTS,5 057903
65
BEARING PLEASE REFER TO ADDITIONAL PARTS,5 057903
65
BEARING PLEASE REFER TO ADDITIONAL PARTS,5 057903
75
BEARING
75
BEARING
85
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3454307481
95
REPAIR KIT
107
SEAL RING LINE CONNECTION
117
FITTING , Replaced By: A0019972572
117
FITTING LINE CONNECTION
117
FITTING LINE CONNECTION, Replaced By: N000000006446
125
SCREW BRACKET TO SIDE MEMBER
125
SCREW , Replaced By: N304017008040
130
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
135
NUT
147
BRACKET HAND BRAKE VALVE
157
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
167
SCREW , Replaced By: N304017008034
167
SCREW , Replaced By: N304017008034
177
TWO-WAY VALVE
187
VALVE
187
VALVE
207
SEAL RING LINE CONNECTION
217
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
217
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
217
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
217
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
222
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
222
ELBOW FITTING TWO-WAY VALVE
227
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
237
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
237
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
237
ELBOW FITTING , Replaced By: A0019904371
257
O-RING CHECK VALVE TO AIR RESERVOIR
267
THRUST RING CHECK VALVE TO AIR RESERVOIR
267
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
270
NUT CHECK VALVE TO AIR RESERVOIR
273
SCREW BRACKET TO SIDE MEMBER
273
SCREW , Replaced By: N304017010002
276
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
279
NUT BRACKET TO SUPPORT AND TO END PIECE
283
BRACKET TWO-WAY VALVE
285
SCREW PIPE CLAMP
285
SCREW , Replaced By: N304017008021
287
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
287
NUT , Replaced By: N913004008001
289
ELBOW FITTING ,4 412125
291
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
293
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
300
SPACER TUBE CAB
309
BRACKET CAB,LEFT
319
BRACKET HEATING WATER LINE
324
BRACKET LINE MOUNTING
324
BRACKET , Replaced By: A3184280240
331
CLAMP , Replaced By: A3604300143
331
CLAMP , Replaced By: N916016008200
331
CLAMP ,K 147121, Replaced By: N000000000319
331
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
335
CLAMP , Replaced By: A6739950001
335
CLAMP DELIVERY AND SUCTION LINES TO STEERING
337
SHEET METAL SCREW , Replaced By: N007981004252
337
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
337
SCREW PROTECTION PLATE TO BRACKET
338
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
338
WASHER COMPRESSED AIR LINE TO BRACKET
340
SCREW PROTECTION PLATE TO BRACKET
340
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
345
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
350
NUT BALL PIVOT TO LEVER
355
LOOM TIE LINE MOUNTING
360
SCREW , Replaced By: N304017008034
365
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
365
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
370
NUT BALL PIVOT TO LEVER
370
NUT
372
LOOM TIE LINE MOUNTING
372
LOOM TIE LINE MOUNTING 280 MM
375
SCREW , Replaced By: N304017008034
375
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
380
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
380
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
385
NUT
385
NUT BRACKET TO SUPPORT AND TO END PIECE
999
BEARING ,5 0579045 210003, Replaced By: A3434600237, +001A3524623101, +002A0119815110
999
BEARING , Replaced By: A3354600537, +001A3524623901, +002A0119815110
999
FITTING , Replaced By: A0029905971
999
FITTING , Replaced By: N915062006000
999
GROMMET CAB ROOF
