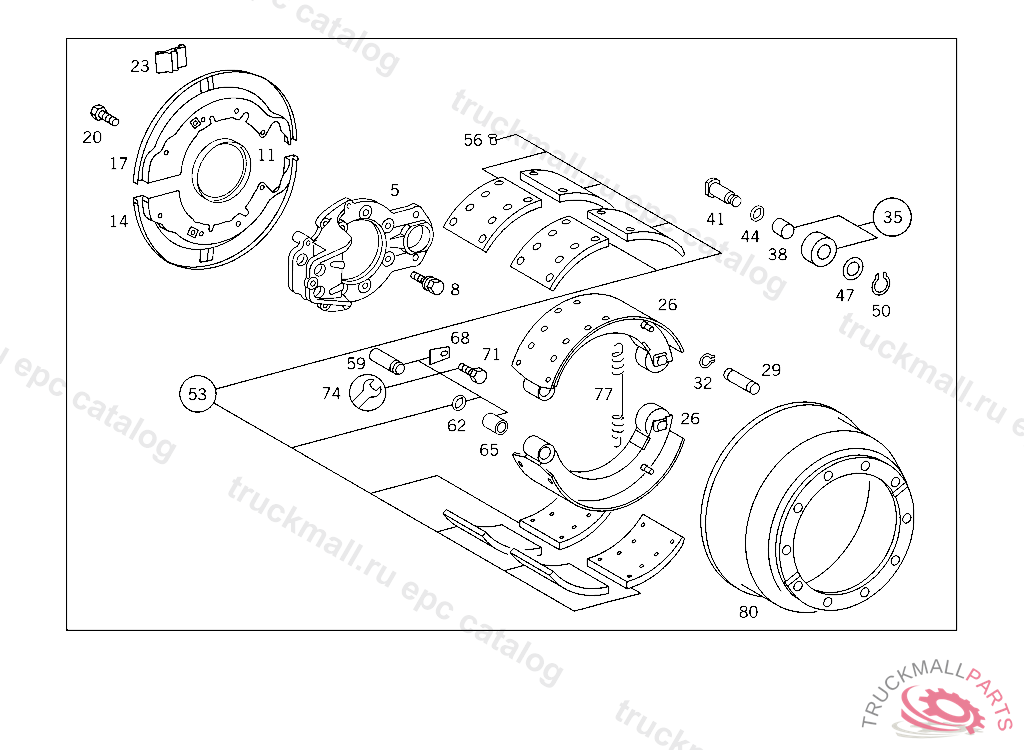

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR),739692
8
SCREW , Replaced By: A3469904304
8
SCREW REAR WHEEL BRAKE TO REAR AXLE M 16X45
8
SCREW FRONT WHEEL BRAKE TO STEERING KNUCKLE
14
PROTECTIVE PLATE
14
PROTECTIVE PLATE
20
SCREW. HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRAKE ANCHOR M10X16
20
SCREW , Replaced By: N304017010042
23
PLUG PROTECTIVE PLATE
26
BRAKE SHOE LESS LINING
29
PIN RELEASE SPRING
32
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
35
ROLLER , Replaced By: A3014200039, +002A0039971548
38
BUSHING
38
BUSHING
41
PIN BRAKE SHOE ROLLER
44
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
47
FITTED WASHER BRAKE SHOE ROLLER
50
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
53
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
53
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
53
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
56
RIVET
56
RIVET
56
RIVET
59
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
62
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
65
BUSHING ,669845
65
BUSHING ,669845
65
BUSHING BRAKE SHOE BEARING
68
LOCK BRAKE SHOE TO BRAKE ANCHOR
71
SCREW BRAKE SHOE TO BRAKE ANCHOR M 10X16
74
REPAIR KIT BRAKE SHOE BEARING
77
SPRING (RELEASE SPRING)
80
BRAKE DRUM
