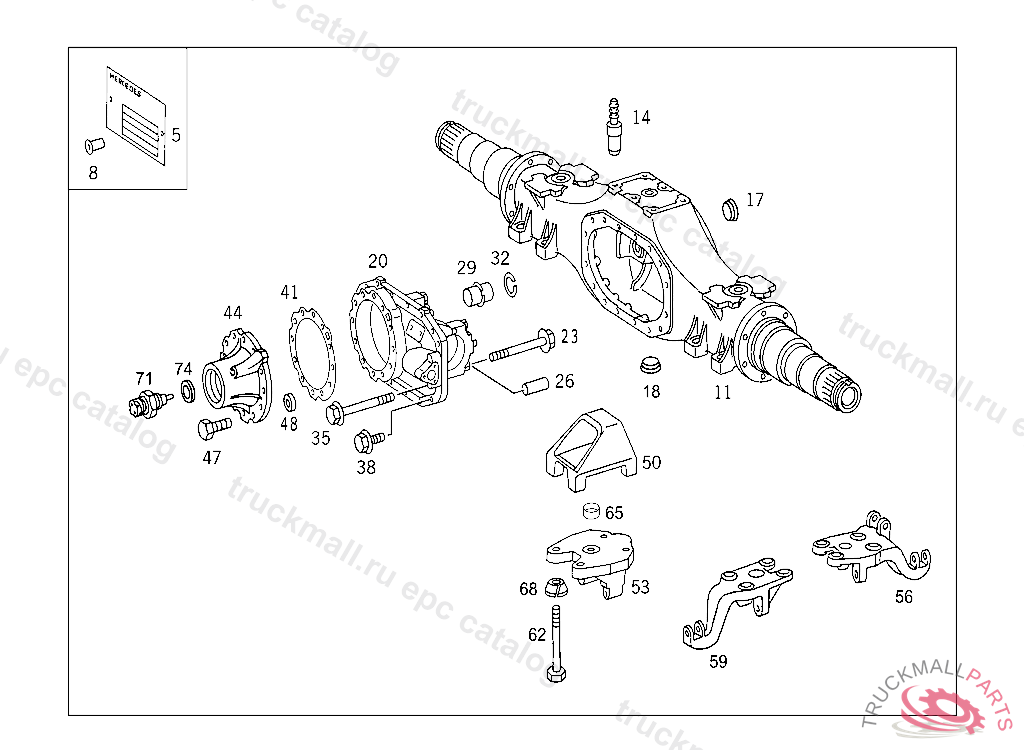

Поз.
Артикул
Описание
5
UNIT IDENTIFICATION PLATE , MAN AXLE
5
UNIT IDENTIFICATION PLATE
11
AXLE HOUSING
14
FITTING BLEEDING
17
SCREW PLUG OIL FILLING, Replaced By: A0009976232
18
SCREW PLUG HOUSING,BOTTOM,183596
18
SCREW PLUG HOUSING,BOTTOM,183596
20
AXLE HOUSING WITH BEARING CAP
20
AXLE HOUSING DIFFERENTIAL GEAR
23
SCREW BEARING COVER TO AXLE HOUSING
26
CYLINDRICAL PIN , Replaced By: N000007008101
29
PIN REAR AXLE HOUSING TO AXLE CASING
35
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
38
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
41
SPACER WASHER AS REQUIRED 1.00 MM
41
SPACER WASHER AS REQUIRED 0.10 MM
41
SPACER WASHER AS REQUIRED 0.50 MM
41
SPACER WASHER AS REQUIRED 0.15 MM
41
SPACER WASHER PINION HOUSING, AS REQUIRED 0.35 MM
41
SPACER WASHER PINION HOUSING, AS REQUIRED 1.50 MM
41
SPACER WASHER PINION HOUSING, AS REQUIRED 0.20 MM
44
HOUSING (PINION HOUSING)
44
HOUSING PINION HOUSING
47
SCREW PINION HOUSING TO REAR AXLE HOUSING M 12X38
47
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M12 X 1.5 X 40
71
SENDER UNIT TEMPERATURE SENDER UNIT B47
74
SEAL RING TEMPERATURE GAUGE SENDER UNIT
999
BRACKET COMPRESSED AIR GUIDE, REAR AXLE.
