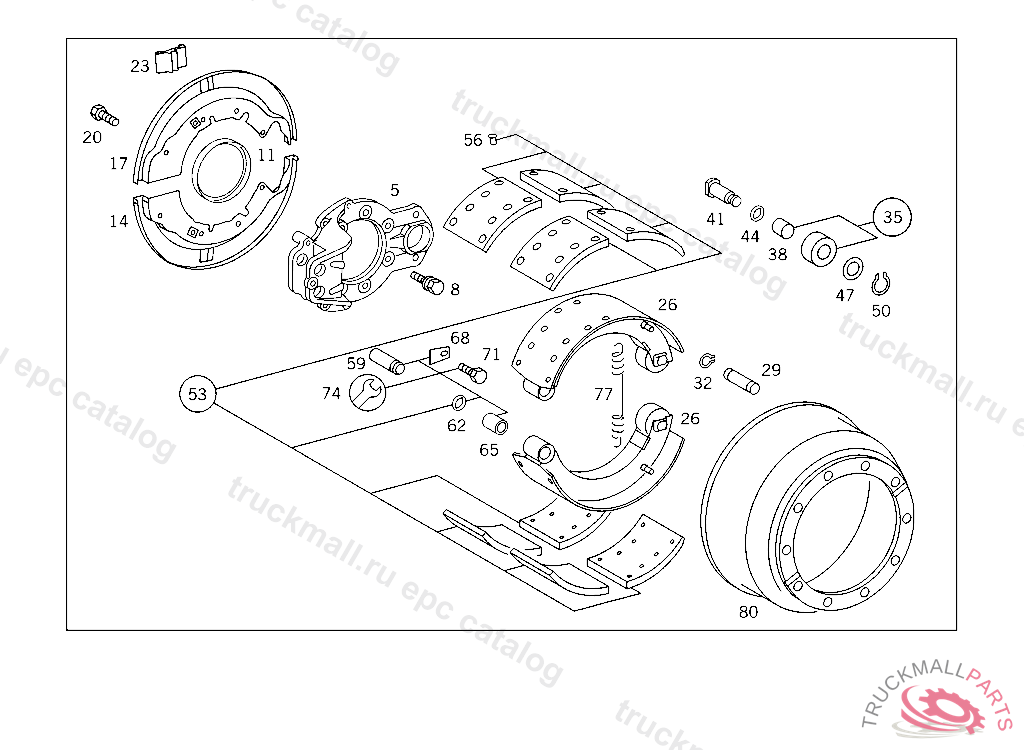

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR)
8
SCREW BRAKE ANCHOR PLATE AND SUPPORTING SLEEVE TO JOINT HOUSING M 16X50
14
PROTECTIVE PLATE LEFT FRONT AND RIGHT REAR
14
PROTECTIVE PLATE LEFT REAR AND RIGHT FRONT
17
PROTECTIVE PLATE REAR AXLE,RIGHT
17
PROTECTIVE PLATE REAR AXLE,LEFT
20
SCREW. HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRAKE ANCHOR M10X16
20
SCREW , Replaced By: N304017010042
23
PLUG
23
PLUG PROTECTIVE PLATE
26
BRAKE SHOE LESS LINING
29
PIN RELEASE SPRING
32
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
35
ROLLER , Replaced By: A3354200039
38
BUSHING BRAKE SHOE ROLLER
38
BUSHINGTO 301 420 00 39
41
PIN BRAKE SHOE ROLLER
44
SEAL RING BRAKE SHOE ROLLER
47
FITTED WASHER BRAKE SHOE ROLLER
50
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
53
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 19.7 MM
53
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.70 MM
53
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.7 MM
56
RIVET
56
RIVET
56
RIVET
59
PIVOT PIN BRAKE SHOE TO BRAKE ANCHOR
59
PIN BRAKE SHOE TO BRAKE ANCHOR
62
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
65
BUSHING ,669845
65
BUSHING BRAKE SHOE BEARING
65
BUSHING ,669845
68
LOCK BRAKE SHOE TO BRAKE ANCHOR
71
SCREW BRAKE SHOE TO BRAKE ANCHOR M 10X16
77
SPRING BRAKE SHOE IN CAST VERSION
80
BRAKE DRUM220MM
