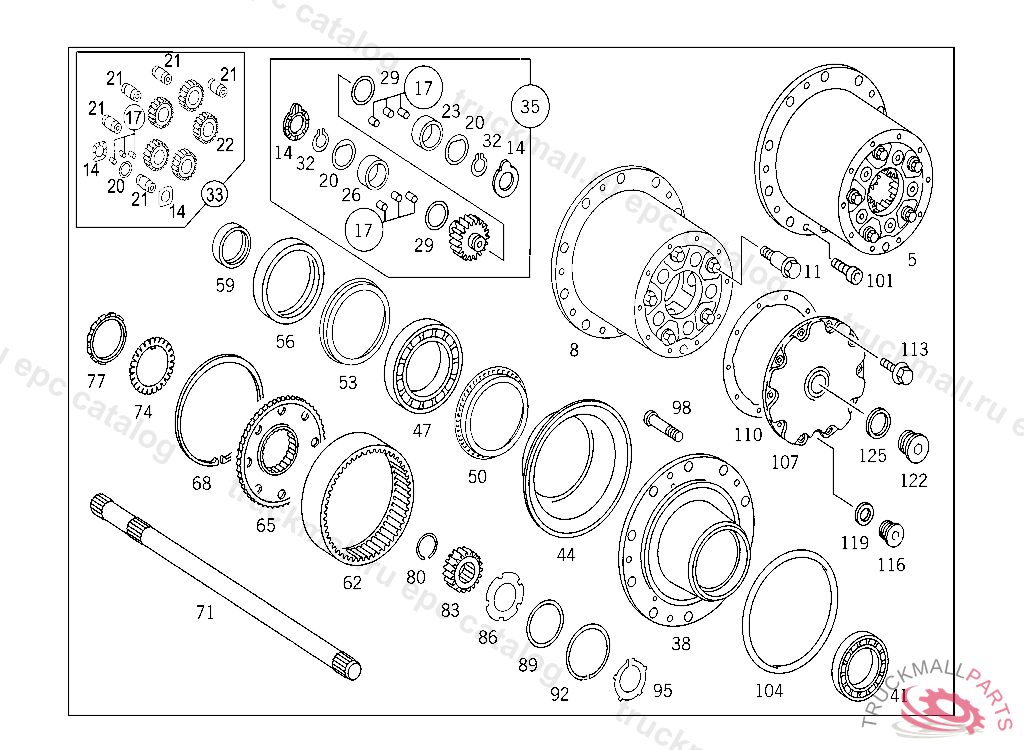

Поз.
Артикул
Описание
5
PLANETARY GEARING RATIO: 1:4.000,V 207287, Replaced By: A9423501609
8
BELL HUB WITH PLANETARY CARRIER,393260
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
14
THRUST WASHER PLANET GEAR
17
NEEDLE PLANET GEAR
20
THRUST WASHER PLANET GEAR
21
PIN PLANET GEAR
35
PLANET GEAR PARTS KIT,393260
38
WHEEL HUB STEEL VERSION
41
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
41
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
41
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
44
OIL COLLECTOR WHEEL HUB, OUTSIDE TO 346 356 28 01/29 01
47
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
47
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
47
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
47
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
47
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
53
COVER PLATE WHEEL HUB, INSIDE
53
COVER PLATE WHEEL BEARING
56
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 49 47
56
SEAL RING FRONT WHEEL HUB,OUTSIDE, ONLY APPLICABLE TO MODELS: 748.271
56
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 90 45
56
SEAL RING FRONT WHEEL HUB,OUTSIDE, ORDER ADDITIONALLY: A 013 997 94 47
56
RADIAL SHAFT SEALING RING WHEEL HUB, OUTSIDE, ORDER ADDITIONALLY: A 013 997 89 46
59
THRUST RING WHEEL BEARING
62
OUTSIDE GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 75,V 207287
65
SUPPORT OUTSIDE GEAR
68
WIRE RING OUTSIDE GEAR TO SUPPORT
71
REAR AXLE SHAFT LESS INTERLOCK SERRATIONS
74
LOCK PLATE WHEEL HUB TO AXLE JOURNAL
77
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
77
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
80
SNAP RING
83
SUN GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 25,V 207287
86
THRUST WASHER PLANET GEAR
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
89
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.80 MM
89
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
92
LOCK RING , Replaced By: N000472105001
98
WHEEL MOUNTING BOLT LIGHT-ALLOY-SHEET DISC WHEEL, Replaced By: A0004013771
98
WHEEL MOUNTING BOLT DISC WHEEL ON WHEEL HUB
101
CAPSCREW W HEXAL. DRIVE BRACKET TO PUMP M12X25
104
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
107
HUB CAP BELL HUB
110
GASKET , Replaced By: A6503560080
110
GASKET COVER TO HUB
113
SCREW COVER TO BELL HUB
116
SCREW PLUG OIL DRAIN
119
SEALING RING. SEAL RING OIL DRAIN
122
SCREW PLUG OIL FILLING
125
SEALING RING OIL FILLING
999
REAR AXLE SHAFT LESS INTERLOCK SERRATIONS
