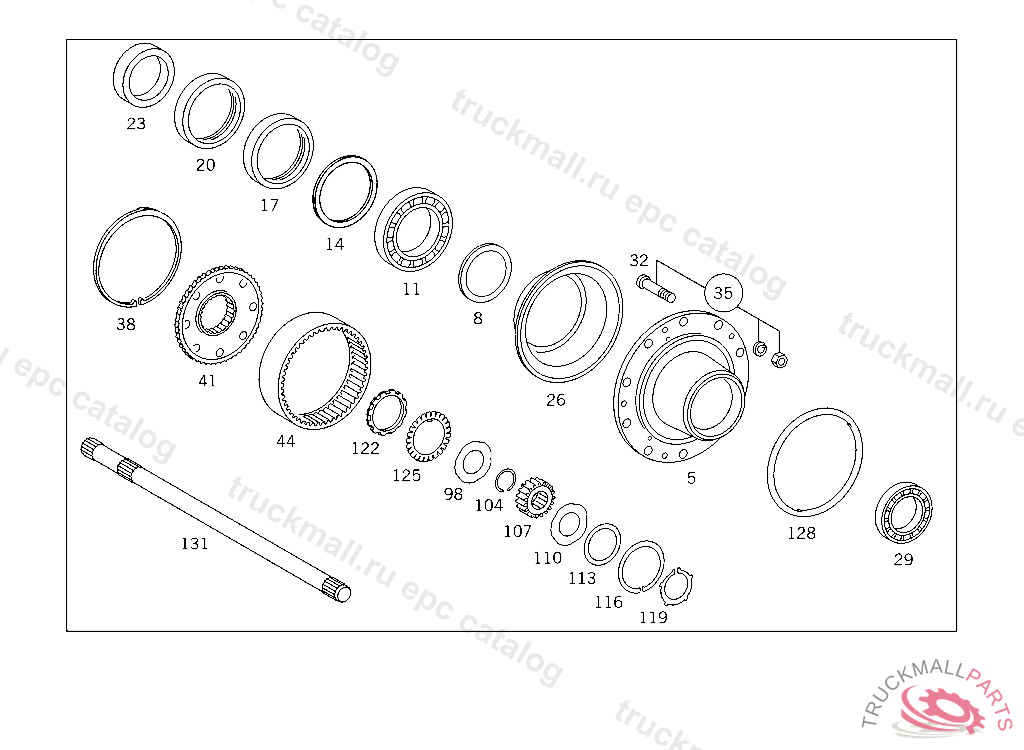

Поз.
Артикул
Описание
5
WHEEL HUB
5
WHEEL HUB
8
OIL COLLECTOR WHEEL HUB, INSIDE,V 361112
11
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
11
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
11
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
11
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
14
COVER PLATE
17
SEAL RING
17
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 49 47
17
SEAL RING , Replaced By: A0139979467
17
SEAL RING , Replaced By: A0139979467
17
SEAL RING , Replaced By: A0139979447
20
SEAL RING
20
SEAL RING FRONT WHEEL HUB,OUTSIDE, ONLY APPLICABLE TO MODELS: 748.271
23
THRUST RING WHEEL BEARING
23
THRUST RING , Replaced By: A3463561415
26
OIL COLLECTOR
29
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
29
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
29
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
32
WHEEL MOUNTING BOLT LIGHT-ALLOY-SHEET DISC WHEEL, Replaced By: A0004013771
35
PIN (PARTS KIT),WHEEL MOUNTING, WHEEL OPENING: 32 MM
38
WIRE RING OUTSIDE GEAR TO SUPPORT
41
SUPPORT OUTSIDE GEAR, LKWW 972499, BUSW974540
44
OUTSIDE GEAR ,W 874844, V000001W 972499
98
GUARD PLATE PLANETARY GEAR TRAIN
104
SNAP RING
107
SUN GEAR NUMBER OF TEETH: 23, LKWW 972499, BUSW974540
110
GUARD PLATE PLANETARY GEAR TRAIN
113
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
113
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
113
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
113
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
113
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
116
LOCK RING , Replaced By: N000472105001
119
LOCK RING45X1.75 MM
122
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
122
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
122
GROOVED NUT , Replaced By: A9423560126
125
LOCK PLATE WHEEL HUB TO AXLE JOURNAL
128
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
128
SEAL RING , Replaced By: A0169974048
131
REAR AXLE SHAFT
