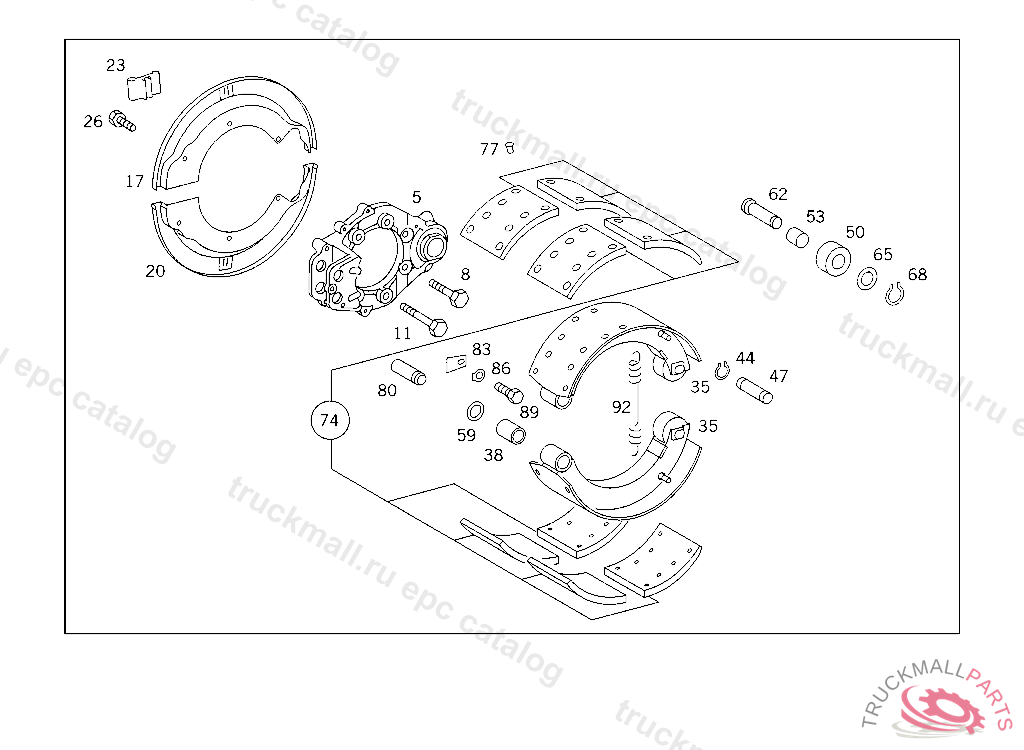

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR),739692
8
SCREW , Replaced By: A3469904304
11
SCREW REAR WHEEL BRAKE TO REAR AXLE M 16X45
17
PROTECTIVE PLATE
20
PROTECTIVE PLATE
23
PLUG PROTECTIVE PLATE
26
SCREW , Replaced By: N304017010042
35
BRAKE SHOE LESS LINING
38
BUSHING BRAKE SHOE BEARING
38
BUSHING ,669845
38
BUSHING ,669845
44
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
47
PIN RELEASE SPRING
50
ROLLER , Replaced By: A3354200039
53
BUSHING
53
BUSHING
59
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
62
PIN BRAKE SHOE ROLLER
65
FITTED WASHER BRAKE SHOE ROLLER
68
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
74
BRAKE LINING , Replaced By: A6954230910
74
BRAKE LINING , Replaced By: A6954231010
74
BRAKE LINING , Replaced By: A6954231110
74
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
74
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
74
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
77
RIVET
77
RIVET
77
RIVET
80
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
83
LOCK BRAKE SHOE TO BRAKE ANCHOR
89
SCREW , Replaced By: N910106010018
92
SPRING (RELEASE SPRING)
