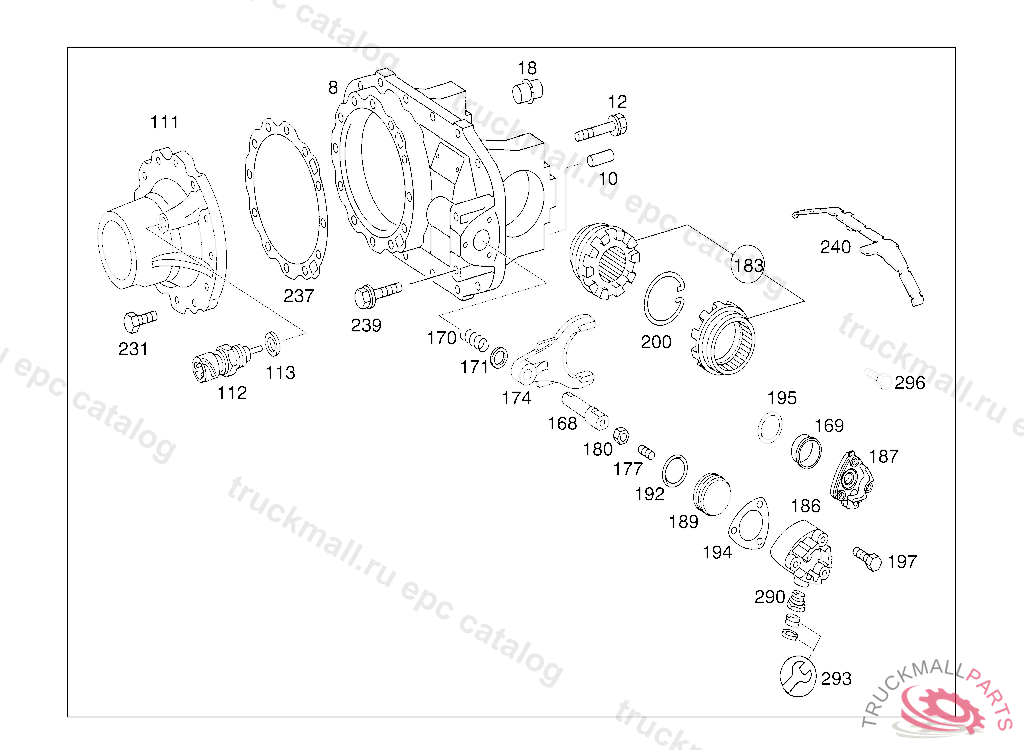

Поз.
Артикул
Описание
8
AXLE HOUSING DIFFERENTIAL GEAR
8
AXLE HOUSING
10
CYLINDRICAL PIN , Replaced By: N000007008101
12
SCREW BEARING COVER TO AXLE HOUSING
18
PIN REAR AXLE HOUSING TO AXLE CASING
111
HOUSING PINION HOUSING
112
SENDER UNIT TEMPERATURE SENDER UNIT B47
113
SEAL RING TEMPERATURE GAUGE SENDER UNIT
168
SHAFT SHIFTING ROD,232175
170
SPRING SHIFTING FORK
174
SHIFTING FORK DIFFERENTIAL LOCK
174
SHIFTING FORK DIFFERENTIAL LOCK
177
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
180
NUT
183
DIFFERENTIAL LOCK PARTS KIT
186
CYLINDER (OPERATING CYLINDER),TRANSVERSE DIFFERENTIAL LOCK
189
PISTON TRANSVERSE DIFFERENTIAL LOCK
192
SEAL RING SHIFTING CYLINDER
194
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
197
SCREW BRACKET TO BEARING BRACKET
200
WIRE RING TRANSVERSE DIFFERENTIAL LOCK
231
SCREW PINION HOUSING TO REAR AXLE HOUSING M 12X38
231
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M12 X 1.5 X 40
237
SPACER WASHER AS REQUIRED 0.10 MM
237
SPACER WASHER PINION HOUSING, AS REQUIRED 0.20 MM
237
SPACER WASHER AS REQUIRED 1.00 MM
237
SPACER WASHER PINION HOUSING, AS REQUIRED 1.50 MM
237
SPACER WASHER AS REQUIRED 0.15 MM
237
SPACER WASHER AS REQUIRED 0.50 MM
237
SPACER WASHER PINION HOUSING, AS REQUIRED 0.35 MM
239
SCREW BRACKET TO BRACKET
239
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
239
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
239
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
240
BRACKET COMPRESSED AIR GUIDE, REAR AXLE.
290
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
