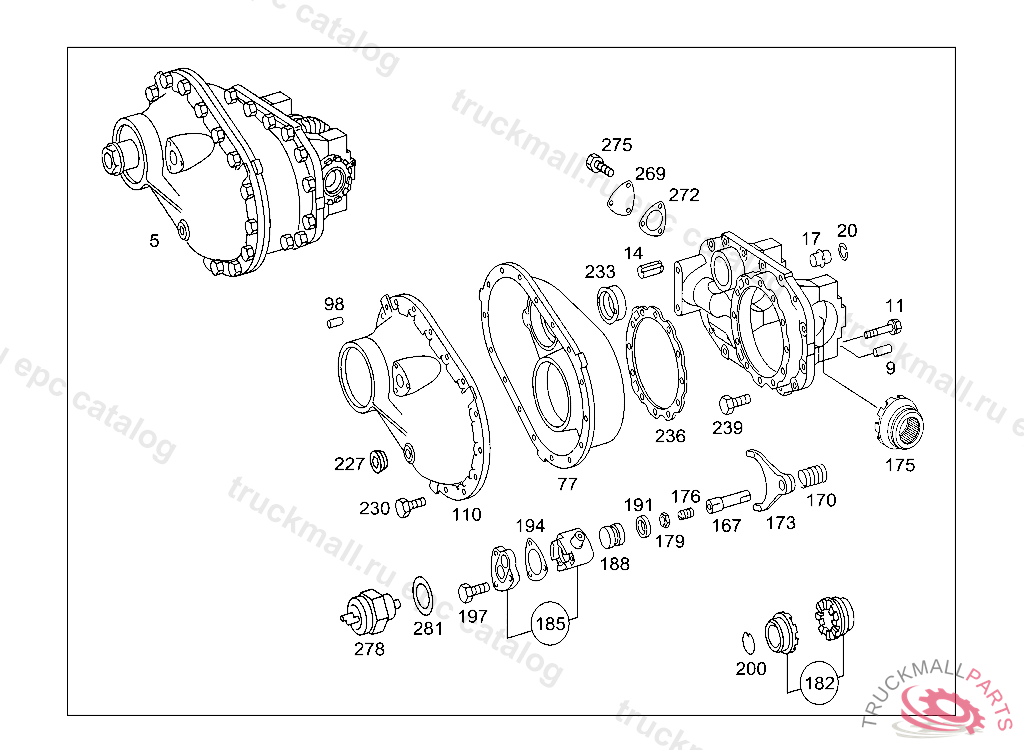

Поз.
Артикул
Описание
5
DIFFERENTIAL GEAR HOUSING AXLE PLUG-IN UNIT WITH DIFFERENTIAL 29:24
5
DIFFERENTIAL GEAR HOUSING AXLE PLUG-IN UNIT WITH DIFFERENTIAL 28:21
5
DIFFERENTIAL GEAR HOUSING AXLE PLUG-IN UNIT WITH DIFFERENTIAL 27:18
7
AXLE HOUSING DIFFERENTIAL GEAR
9
CYLINDRICAL PIN
9
CYLINDRICAL PIN , Replaced By: N000007008101
11
SCREW BEARING COVER TO AXLE HOUSING
14
PIN PINION HOUSING TO AXLE HOUSING
17
PIN AXLE HOUSING
20
SNAP RING
77
HOUSING (PINION HOUSING)
98
CYLINDRICAL PIN , Replaced By: N000007012218
110
COVER HOUSING,FRONT
167
SHAFT SHIFTING ROD,232175
170
SPRING SHIFTING FORK
173
SHIFTING FORK LONGITUDINAL DIFFERENTIAL LOCK, MAN AXLE
173
SHIFTING FORK DIFFERENTIAL LOCK
173
SHIFTING FORK DIFFERENTIAL LOCK
176
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
179
NUT
182
DIFFERENTIAL LOCK PARTS KIT
185
CYLINDER TRANSVERSE DIFFERENTIAL LOCK
188
PISTON TRANSVERSE DIFFERENTIAL LOCK
191
SEAL RING SHIFTING CYLINDER
194
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
197
SCREW BRACKET TO BEARING BRACKET
200
WIRE RING TRANSVERSE DIFFERENTIAL LOCK
227
SCREW PLUG HOUSING,BOTTOM,183596
227
SCREW PLUG HOUSING,BOTTOM,183596
230
SCREW RADIATOR PROTECTIVE GRILLE TO ANGLE
233
CONNECTOR THROUGH DRIVE
236
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.15 MM
236
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.35 MM
236
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.10 MM
236
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.00 MM
236
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.50 MM
236
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.50 MM
236
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.20 MM
239
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
239
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
239
SCREW , Replaced By: N308676014005
239
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
239
SCREW BRACKET TO BRACKET
269
COVER
272
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
275
HEXALOBULAR BOLT SUPPORT TO CRANKCASE M8X20
275
SCREW PIPE CLAMP
278
SWITCH , Replaced By: A0015455709
278
SWITCH
281
SEAL RING ON OIL PUMP HOUSING
999
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 4.15 MM
999
OIL COLLECTOR
