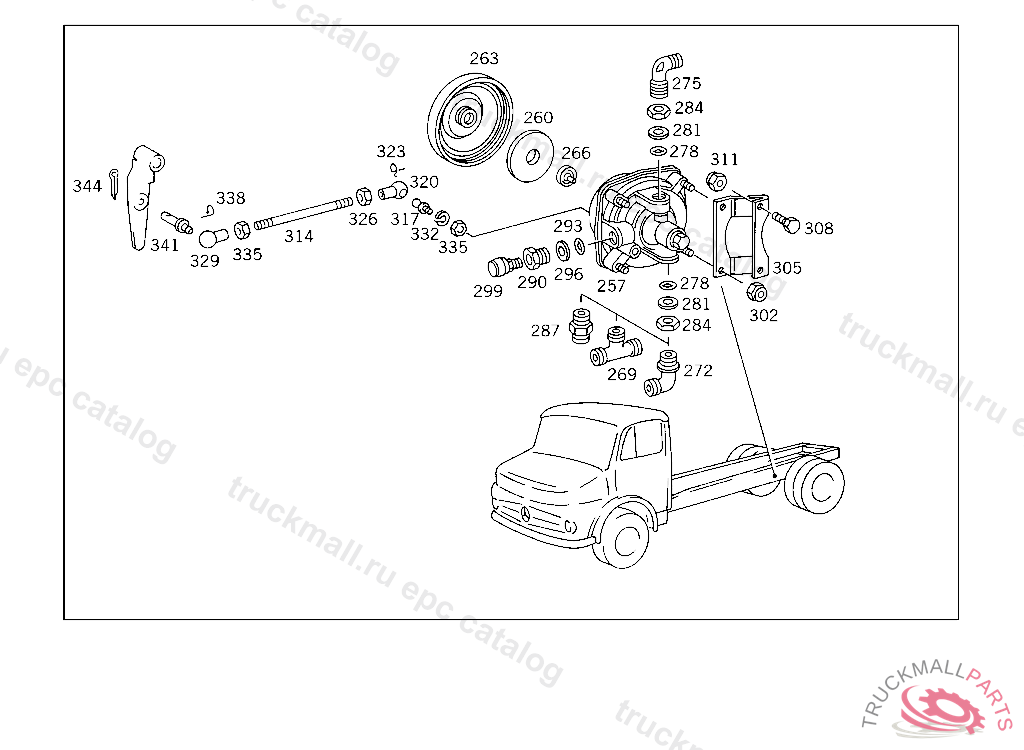

Поз.
Артикул
Описание
257
BRAKE VALVE TRAILER PARKING BRAKE
257
BRAKE VALVE TRAILER PARKING BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
260
CUP , Replaced By: A0004313086
260
CUPBOSCH
263
DIAPHRAGM , Replaced By: A0004313186
263
CUPBOSCH
266
VALVE DISCTO 000 429 48 30
269
T-FITTING COMPRESSED AIR VALVE CONNECTION
272
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
275
ELBOW FITTING , Replaced By: A0019904371
275
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
278
O-RING CHECK VALVE TO AIR RESERVOIR
281
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
281
THRUST RING CHECK VALVE TO AIR RESERVOIR
284
NUT CHECK VALVE TO AIR RESERVOIR
287
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
290
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
293
O-RING CHECK VALVE TO AIR RESERVOIR
296
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
296
THRUST RING CHECK VALVE TO AIR RESERVOIR
299
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
302
NUT STRAP TO BRACKET
302
NUT , Replaced By: N910113010000
305
BRACKET TRAILER BRAKE VALVE
305
BRACKET TRAILER BRAKE VALVE
308
SCREW BRACKET TO SIDE MEMBER,5 105538
311
NUT END PIECE TO EXHAUST PIPE
314
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
314
PULL ROD , Replaced By: N900331008420
317
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
320
BALL SOCKET ROD TO BALL PIVOT
323
SECURING CLIP. CIRCLIP
326
NUT
329
BALL SOCKET ROD TO BALL PIVOT
332
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
335
NUT
338
SECURING CLIP. CIRCLIP
341
PIN INTERMEDIATE LEVER
344
COTTER PIN STRAP TO SUPPORT
999
LINE , Replaced By: A0005516256
999
COVERTO 000 429 38 30
999
CUPBOSCH
999
REPAIR KIT , Replaced By: A0024306581
999
SEAL RING
999
ANGLE JOINT DUMPER PUMP
999
FITTING ,4 667210
999
NUT BRACKET TO SIDE MEMBER
